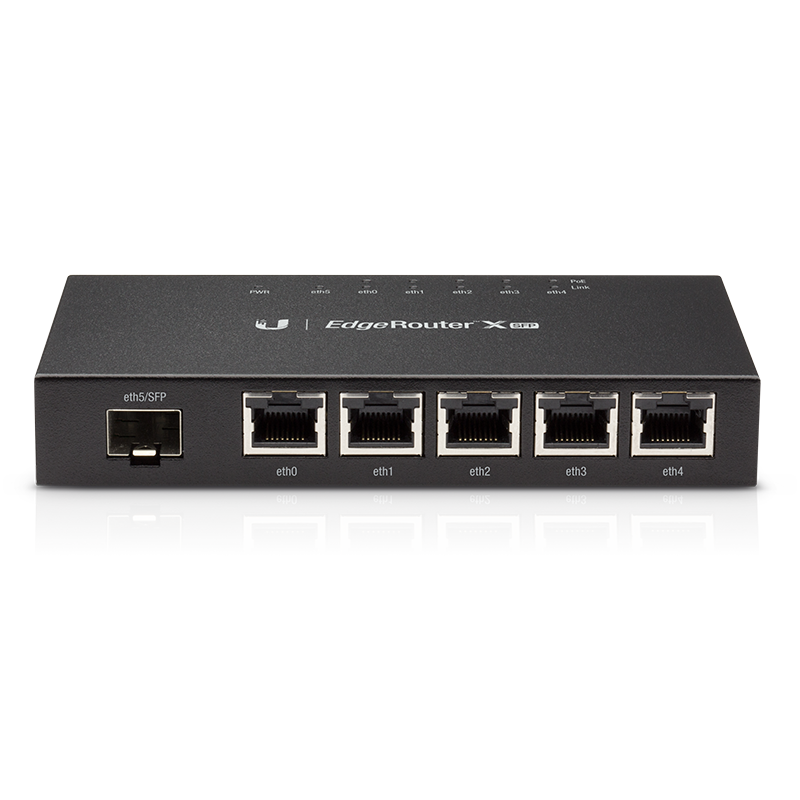

Ubiquiti EdgeRouter X SFP (ER‑X‑SFP)

←
Get Your Custom Quote!

The EdgeRouter X SFP (ER‑X‑SFP) is a compact yet capable router from Ubiquiti’s EdgeMAX line. It offers five Gigabit Ethernet ports with passive 24 V PoE support and one Gigabit SFP port for fiber uplink. Powered by a dual-core 880 MHz processor with 256 MB RAM and 256 MB NAND flash, it delivers solid performance in a silent, fanless design. It is ideal for small offices, homes, or edge deployments where both Ethernet and fiber connectivity are needed. The router runs on EdgeOS, providing advanced routing, firewall, VLAN, QoS, and VPN capabilities.

SPECIFICATIONS

• orts:

  • 5 × Gigabit RJ45 Ethernet (data + PoE output)

  • 1 × Gigabit SFP port (fiber uplink)

  • 1 × Reset button; LEDs for power, link/activity, and PoE indicators

• Power & PoE:

  • External power adapter: 24 V DC, 2.5 A

  • Accepts 9–26 V DC input

  • Passive 24 V PoE output on RJ45 ports — up to 12 W per port, total 50 W PoE budget

• Performance:

  • Dual-Core 880 MHz CPU (MIPS1004Kc)

  • 256 MB DDR3 RAM, 256 MB NAND flash storage

  • Routing: ~130 k pps for 64‑byte packets; 1 Gbps line for larger packets

• Power Consumption:

  • ~5 W (excluding PoE output)

• Physical:

  • Dimensions: 142 × 75 × 23 mm (5.6 × 3 × 0.9 in)

  • Weight: ~215 g (7.6 oz)

  • Fanless, wall-mountable metal case

• Environmental Specs:

  • Operating temperature: –10 °C to 45 °C

  • Humidity: 10–90% non‑condensing

  • ESD protection: ±24 kV air/contact
