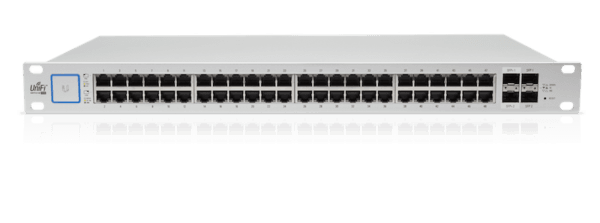

The Ubiquiti UniFi Switch 48 PoE (US-48-500W) is a high-performance, fully managed Layer 2 switch offering 48 Gigabit RJ45 ports with extensive PoE capabilities delivering up to 500W power budget. Ideal for powering a large number of PoE devices such as access points, IP cameras, and VoIP phones, it integrates seamlessly with the UniFi ecosystem for centralized management.

SPECIFICATIONS

• Model: US-48-500W
• Dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.23 x 1.72″)
• Weight: 4.4 kg (9.7 lb)
• Enclosure Material: SGCC Steel
• Networking Interfaces:
  • (48) 10/100/1000 RJ45 Ports
  • (4) 1G SFP Ports
  • (2) 10G SFP+ Ports
• PoE Budget: 500W
• PoE Standards Supported: 802.3af, 802.3at (PoE+), 802.3bt (PoE++)
• Power Method: AC Input: 100–240VAC, 50/60Hz
• Max. Power Consumption: 550W
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.95 Mpps
• Cooling: Active cooling with fans
• Operating Temperature: -5 to 45°C (23 to 113°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

FEATURES

• 48 x Gigabit RJ45 Ports: High-speed connectivity for devices
• Powerful PoE Budget: 500W to power a wide range of PoE devices
• 10G SFP+ Uplink Ports: Two 10G ports for ultra-fast uplinks
• Advanced Layer 2 Switching: VLAN, link aggregation, QoS, port isolation
• UniFi Controller Integration: Centralized monitoring and management
• Rack-Mountable: Standard 1U form factor for easy installation

MANAGEMENT REQUIREMENTS

• UniFi Network Version 5.12.11 or later
• Managed via UniFi Network Controller (local or cloud)
