Ubiquiti AC In-Wall (UAP-AC-IW)

←
Get Your Custom Quote!

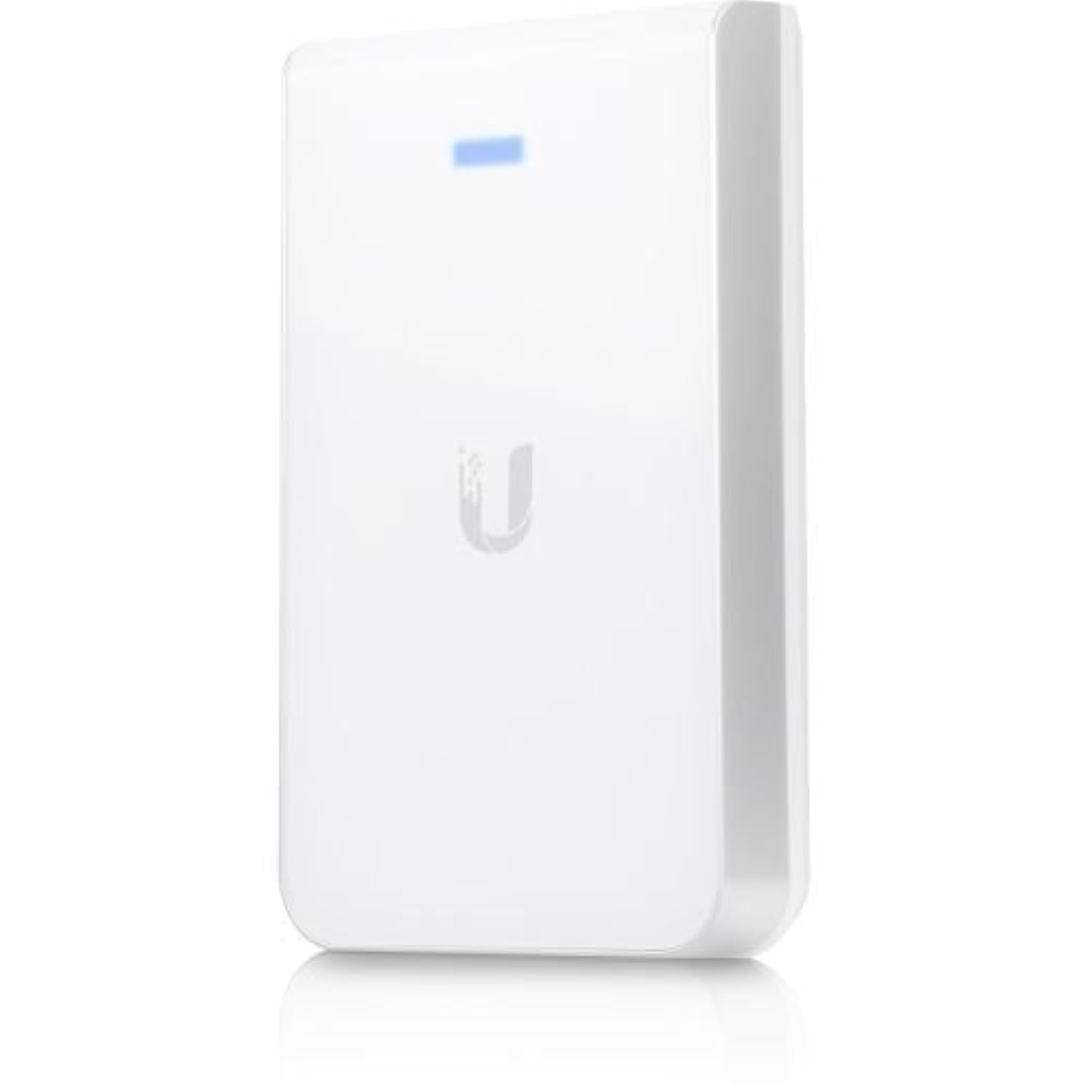

The Ubiquiti AC In-Wall (UAP-AC-IW) is a wall-mounted access point designed to provide seamless WiFi coverage while integrating directly into a standard electrical wall outlet. Ideal for hotels, dormitories, or residential buildings, it delivers dual-band 802.11ac WiFi performance in a sleek, compact form factor.

SPECIFICATIONS

• Model: UAP-AC-IW
• WiFi Standards: 802.11a/b/g/n/ac
• Frequency Bands: Dual-Band 2.4 GHz and 5 GHz
• Radio Chains: 2×2 MIMO for both 2.4 GHz and 5 GHz
• Maximum Data Rate: 1167 Mbps (300 Mbps @ 2.4 GHz, 867 Mbps @ 5 GHz)
• Ethernet Ports: (1) Gigabit RJ45 port with PoE passthrough
• Power: 802.3af PoE input, supports PoE passthrough to a downstream device
• Dimensions: 120 x 70 x 40 mm (4.72 x 2.76 x 1.57″)
• Weight: 210 g (0.46 lb)
• Operating Temperature: -10 to 50°C (14 to 122°F)
• Certifications: CE, FCC, IC

FEATURES

• Wall-Mounted Design: Installs in a standard wall outlet for discreet WiFi coverage
• Dual-Band WiFi: Simultaneous 2.4 GHz and 5 GHz radios
• PoE Passthrough: Allows powering another device from the access point
• Advanced Security: WPA2 Enterprise, Guest Network support
• Easy Management: Managed via UniFi Network Controller

MANAGEMENT REQUIREMENTS

• UniFi Network Controller version 5.6.6 or later
