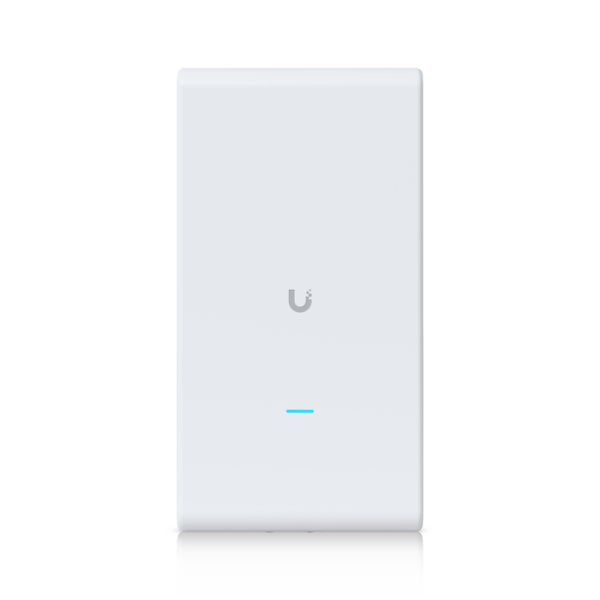

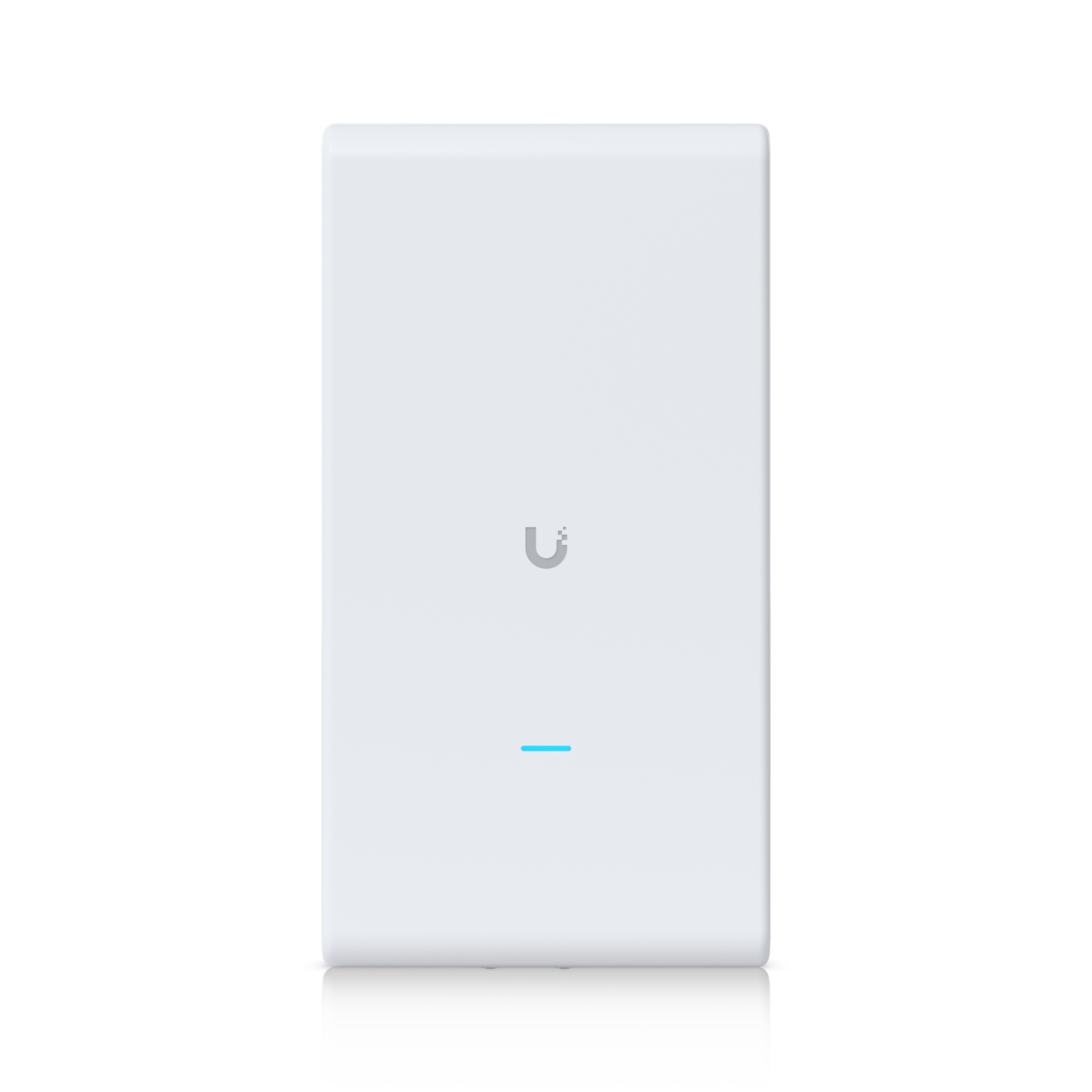

Ubiquiti UniFi AC Mesh Pro Access Point (UAP-AC-M-PRO)

←
Get Your Custom Quote!

High-performance, outdoor-ready dual-band 802.11ac Wave 1 access point with 3×3 MIMO technology, designed for scalable mesh networking and extended coverage in enterprise environments.

SPECIFICATIONS

• Model: UAP-AC-M-PRO
• Wi-Fi Standards: 802.11a/b/g/n/ac (Wi-Fi 5)
• MIMO: 3×3 MIMO on both 2.4 GHz and 5 GHz bands
• Radio Rates:
  • 2.4 GHz: 450 Mbps
  • 5 GHz: 1300 Mbps
• Aggregate Throughput: 1750 Mbps
• Concurrent Clients: 250+ users
• Coverage Area: Up to 185 m² (2,000 ft²)
• Networking Interface: (2) 10/100/1000 Ethernet Ports
• Power Method: 802.3af PoE
• Power Supply: 48V, 0.5A Gigabit PoE Adapter (included with single-pack)
• Max. Power Consumption: 9W
• Supported Voltage Range: 44–57V DC
• Max. TX Power:
  • 2.4 GHz: 22 dBm
  • 5 GHz: 22 dBm
• Antenna Gain:
  • 2.4 GHz: 8 dBi
  • 5 GHz: 8 dBi
• Mounting Options: Wall or Pole (mounting kits included)
• Dimensions: 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37″)
• Weight: 633 g (1.40 lb)
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% Noncondensing
• Enclosure Material: Weather-resistant polycarbonate (IPX4 rated)
• Environment: Outdoor
• Management: UniFi Network Controller (web or mobile app)
• Advanced Features:
  • Mesh Networking
  • Band Steering
  • Airtime Fairness
  • Guest Portal/Hotspot Support
  • WPA-Enterprise (WPA/WPA2)
  • VLAN Support
  • Zero Handoff Roaming
• Certifications: CE, FCC, IC
