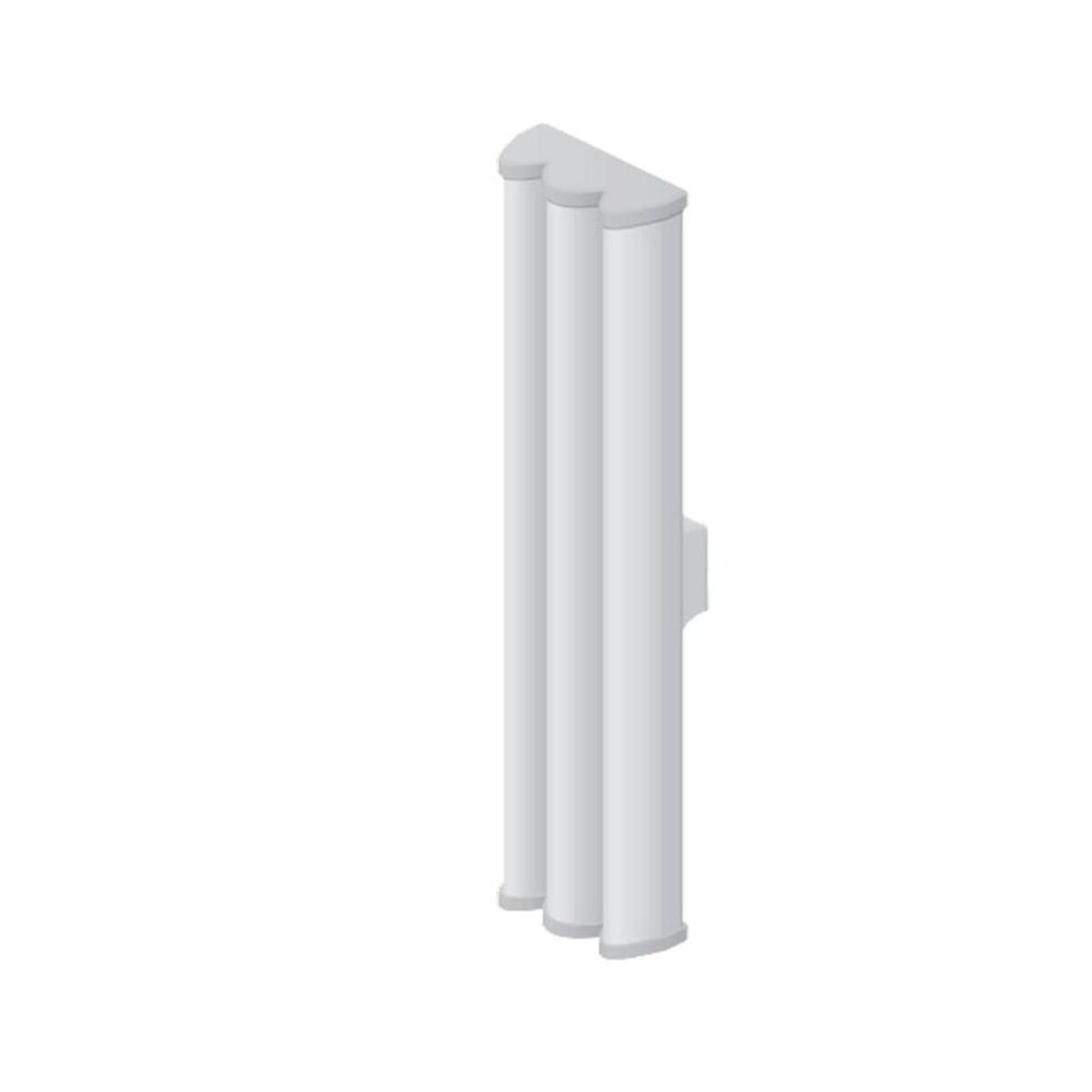

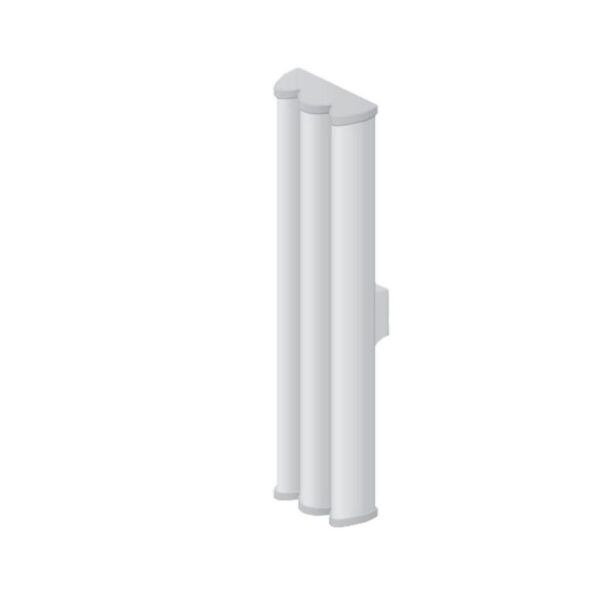

Ubiquiti airMAX Sector Antenna AM-5G19-120

←
Get Your Custom Quote!

The Ubiquiti AM-5G19-120 is a 5 GHz airMAX sector antenna designed for long-range Point-to-MultiPoint (PtMP) applications. With a high gain of 19 dBi and a wide 120° beamwidth, it provides robust and focused coverage, making it ideal for high-density wireless deployments. It seamlessly integrates with Ubiquiti Rocket M5 radios, offering a powerful and flexible base station solution.

SPECIFICATIONS

• Frequency Range: 5.15 – 5.85 GHz

• Gain: 18.6 – 19.1 dBi

• Horizontal Beamwidth (HPOL): 123° (6 dB)

• Vertical Beamwidth (VPOL): 123° (6 dB)

• Elevation Beamwidth: 4°

• Electrical Downtilt: 2°

• Polarization: Dual-Linear

• Cross-Polarization Isolation: ≥ 28 dB

• VSWR: 1.5:1 max

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 89 N @ 160 km/h (20 lbf @ 100 mph)

• Dimensions: 700 x 135 x 73 mm (27.6 x 5.3 x 2.9″)
