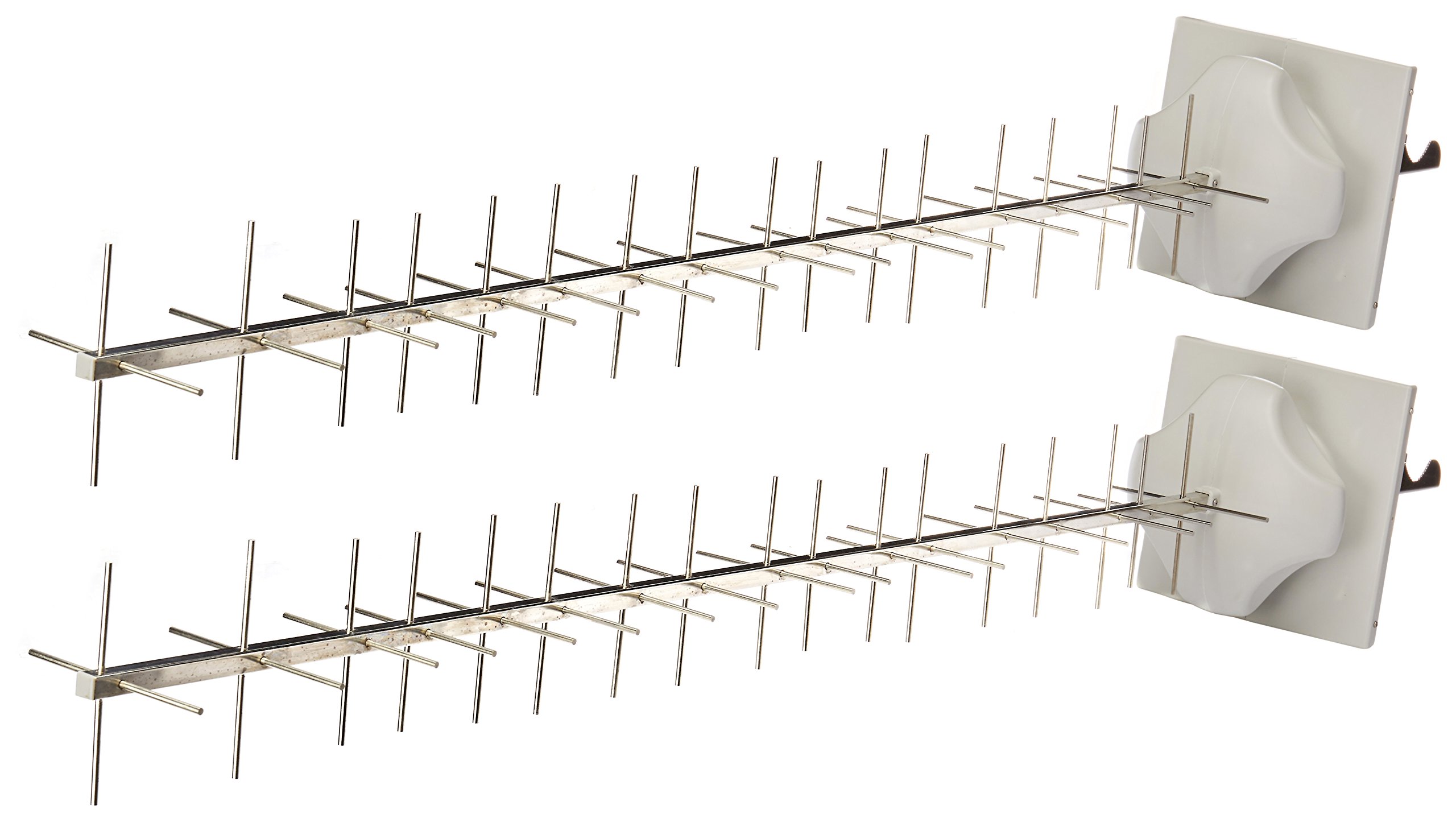

Ubiquiti airMAX Yagi Antenna AMY-9M16x2

←
Get Your Custom Quote!

The Ubiquiti AMY-9M16x2 is a 900 MHz airMAX Yagi Antenna designed for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) applications. It features a 16 dBi gain and provides directional coverage, making it ideal for long-range wireless deployments. The antenna is engineered to seamlessly integrate with RocketM900 radios, offering a robust and flexible base station solution.

SPECIFICATIONS

• Frequency Range: 902 – 928 MHz

• Gain: 16 dBi

• Polarization: Dual Linear

• Cross-Polarization Isolation: ≥ 20 dB

• VSWR: < 1.5:1 over band

• Horizontal Beamwidth: 29° – 34°

• Vertical Beamwidth: 29° – 34°

• Front-to-Back Ratio: 20 dB

• Wind Survivability: 120 mph

• Wind Loading: 35 ft-lbs @ 100 mph

• Dimensions: 1365 x 215 x 218 mm (53.74 x 8.47 x 8.58″)

• Weight: 2.5 kg (5.51 lb)
