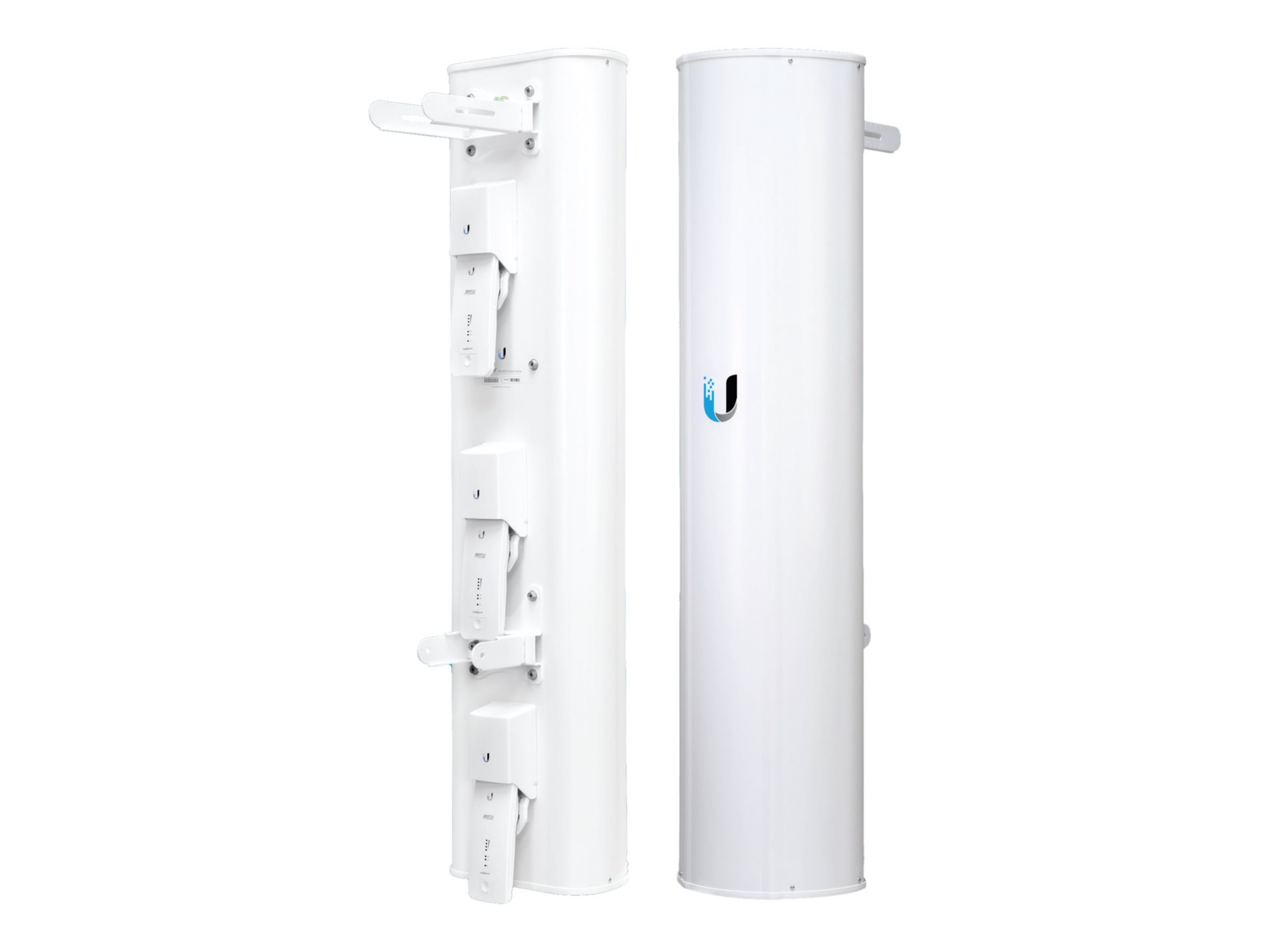

Ubiquiti airPrism Sector Antenna AP-5AC-90-HD

←
Get Your Custom Quote!

The Ubiquiti AP-5AC-90-HD is a 5 GHz airPrism Sector Antenna designed for Point-to-MultiPoint (PtMP) applications. It features three 30° beamwidth antennas, providing a total of 90° coverage. This design allows for high-density deployments by reducing interference between sectors. The antenna is engineered to seamlessly integrate with Rocket5ac Prism radios, offering a robust and flexible base station solution.

SPECIFICATIONS

• Frequency Range: 5.15 – 5.85 GHz

• Gain: 22 dBi

• Horizontal Beamwidth: 3 x 30° (6 dB)

• Vertical Beamwidth: 3 x 30° (6 dB)

• Elevation Beamwidth: 8°

• Electrical Downtilt: 2°

• Polarization: Dual-Linear

• Max. VSWR: 1.75:1

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 534 N @ 200 km/h (120 lbf @ 125 mph)

• Dimensions (with mount): 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18″)

• Weight (with mount): 13.1 kg (28.9 lb)

• Interfaces: (6) RP-SMA Connectors (Weatherproof)

• Compatible Radios: Rocket5ac Prism
