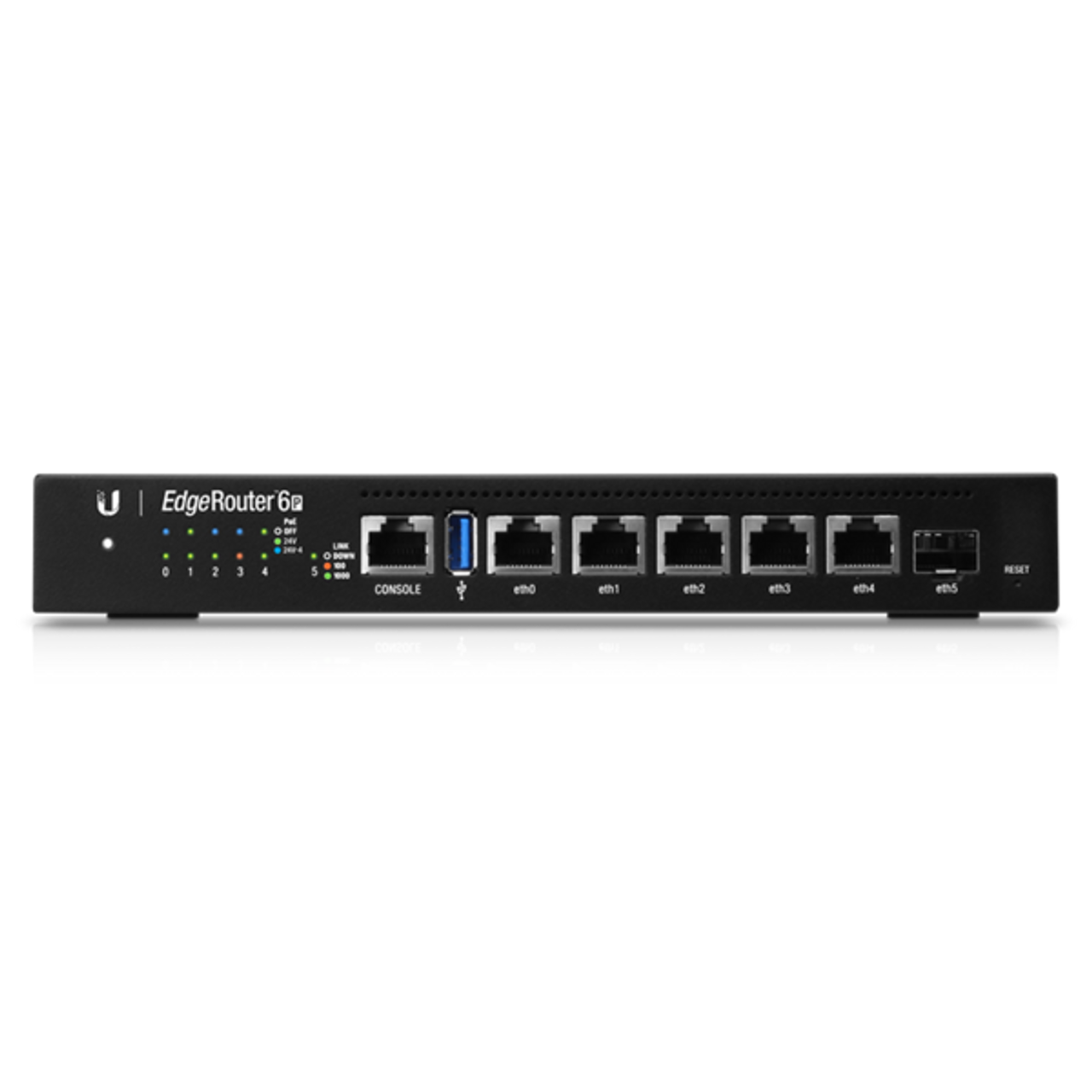

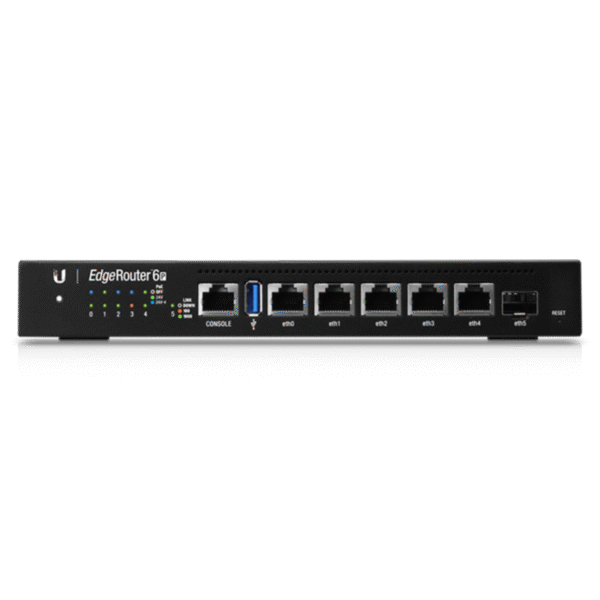

Ubiquiti EdgeRouter 6P (ER-6P-EU)

←
Get Your Custom Quote!

The Ubiquiti EdgeRouter 6P (ER-6P-EU) is a high-performance Gigabit router designed for advanced networking environments. Powered by EdgeOS, it offers a robust feature set for routing, firewall policies, VPN support, and more. It includes 5 Gigabit RJ45 ports with passive PoE and 1 SFP port for fiber connectivity, making it suitable for both wired and fiber networks.

SPECIFICATIONS

• Model: ER-6P-EU

• Ports:

  • 5 × Gigabit RJ45 Ports (with 24V Passive PoE Output)

  • 1 × Gigabit SFP Port

• Performance:

  • Routing throughput: Up to 3.4 million packets per second

  • Line rate: Up to 6 Gbps

• Processor:

  • Dual-core 1 GHz MIPS64 CPU

• RAM: 1 GB DDR3

• Storage: 4 GB eMMC

• PoE Output: 24V passive PoE on RJ45 ports (port 0–3)

• Mounting: Desktop or wall-mountable

• Operating System: EdgeOS

• Power Supply: 24VDC, 2.5A Power Adapter (Included)

• Max Power Consumption: 30W

• Dimensions: 229 x 136.5 x 31.1 mm

• Weight: 700g
