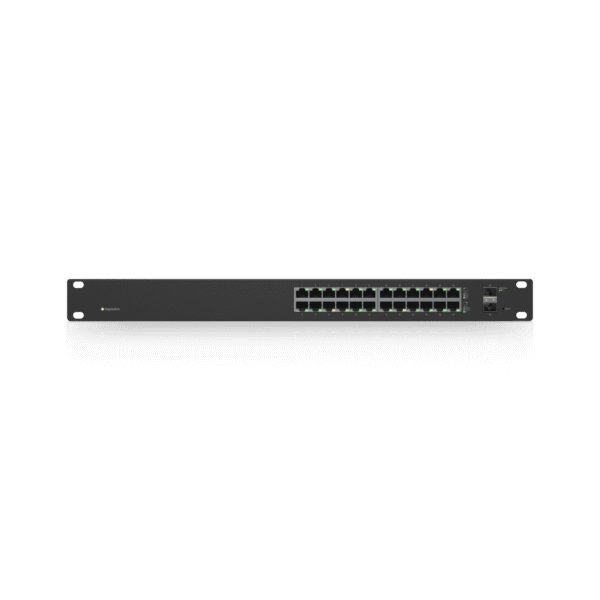

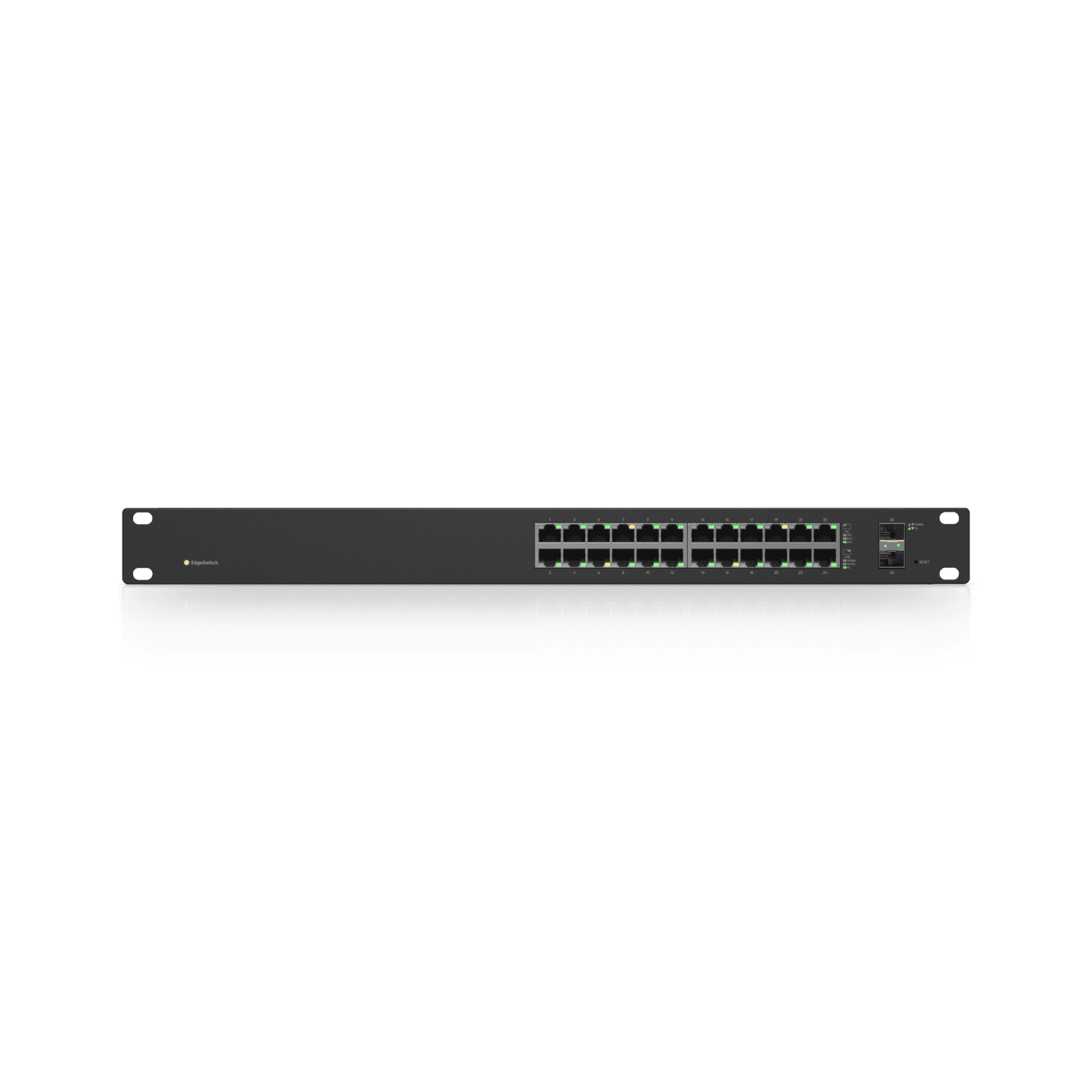

Ubiquiti EdgeSwitch 24-250W-EU (ES-24-250W-EU)

←
Get Your Custom Quote!

The EdgeSwitch 24-250W-EU is a powerful, fully managed Layer 2/Layer 3 Gigabit switch with 24 RJ45 ports and 2 SFP fiber uplink ports. It delivers robust performance and intelligent switching for growing networks. With 802.3af/at PoE+ and 24V passive PoE support and a 250W total power budget, it’s ideal for powering access points, cameras, and VoIP devices. Built for European power standards.

SPECIFICATIONS

• Ports:

  • 24 × Gigabit Ethernet (RJ45 with PoE)

  • 2 × 1 Gbps SFP fiber ports

  • 1 × Console port (RJ45)

• PoE Support:

  • Supports 802.3af/at PoE+ (up to 34.2W per port)

  • Supports 24V passive PoE (up to 17W per port)

  • Total PoE power budget: 250W

• Performance:

  • Switching capacity: 52 Gbps

  • Non-blocking throughput: 26 Gbps

  • Forwarding rate: 38.69 million packets per second (Mpps)

• Power Input:

  • Internal AC power supply (100–240V AC, 50/60 Hz)

  • EU plug standard

  • Maximum power consumption: 250W (with full PoE load)

• Hardware:

  • Rack-mountable metal housing (1U)

  • Fan-cooled

  • LEDs per port (speed, PoE, link/activity)

• Physical Dimensions:

  • Size: 485 × 285.4 × 43.7 mm

  • Weight: Approx. 4.7 kg

• Environment:

  • Operating temperature: –5°C to 40°C

  • Humidity: 5% to 95% non-condensing

  • ESD/EMP protection: ±24 kV

• Software Features:

  • Fully managed Layer 2 switching and Layer 3 routing

  • VLAN, QoS, link aggregation, ACLs, IGMP snooping

  • Web GUI, CLI, and UISP support
