Description

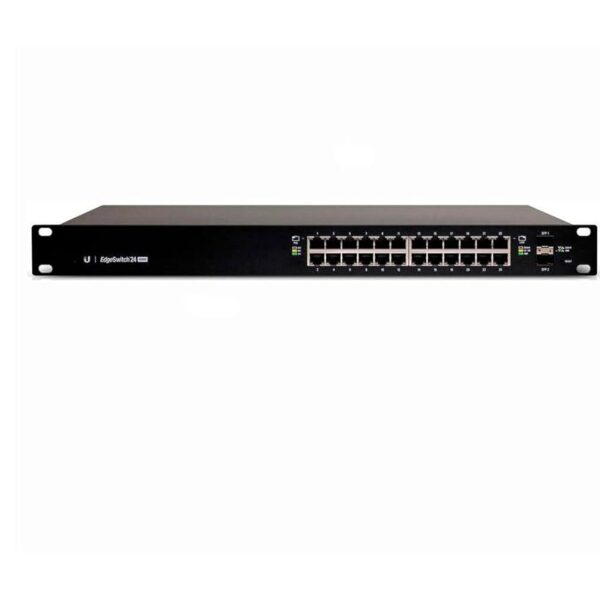

Ubiquiti EdgeSwitch 24-500W (ES-24-500W)

←
Get Your Custom Quote!

The EdgeSwitch 24-500W is a fully managed, rack-mounted Gigabit PoE switch with 24 Ethernet ports, 2 SFP fiber uplink ports, and a built-in 500-watt power supply. It’s ideal for networks that require high power delivery to devices like IP cameras, access points, or VoIP phones. It supports both 802.3af/at PoE+ and 24V passive PoE, offering flexible and powerful PoE capabilities with enterprise-level features.

SPECIFICATIONS

• Ports:

  • 24 × Gigabit Ethernet (RJ45) with PoE+

  • 2 × SFP fiber ports

  • 1 × RJ45 console port

• PoE Capabilities:

  • Supports 802.3af/at PoE+ (up to 34.2W per port)

  • Supports 24V passive PoE

  • Total PoE budget: 500W

• Performance:

  • Switching capacity: 52 Gbps

  • Non-blocking throughput: 26 Gbps

  • Forwarding rate: 38.69 million packets per second (Mpps)

• Power Supply:

  • Internal 500W AC power supply

  • Input: 100–240V AC

• Physical Details:

  • Dimensions: 485 × 285.4 × 43.7 mm

  • Weight: approx. 4.7 kg

  • 1U rack-mountable metal chassis

  • Cooling: Internal fan

• Environmental:

  • Operating temp: –5°C to 40°C

  • Humidity: 5% to 95% non-condensing

  • ESD protection: ±24kV

• Management & Features:

  • Layer 2 and Layer 3 switching

  • VLAN, QoS, IGMP/DHCP Snooping, Link Aggregation

  • Managed via Web GUI, CLI, and UISP (Ubiquiti network manager)
