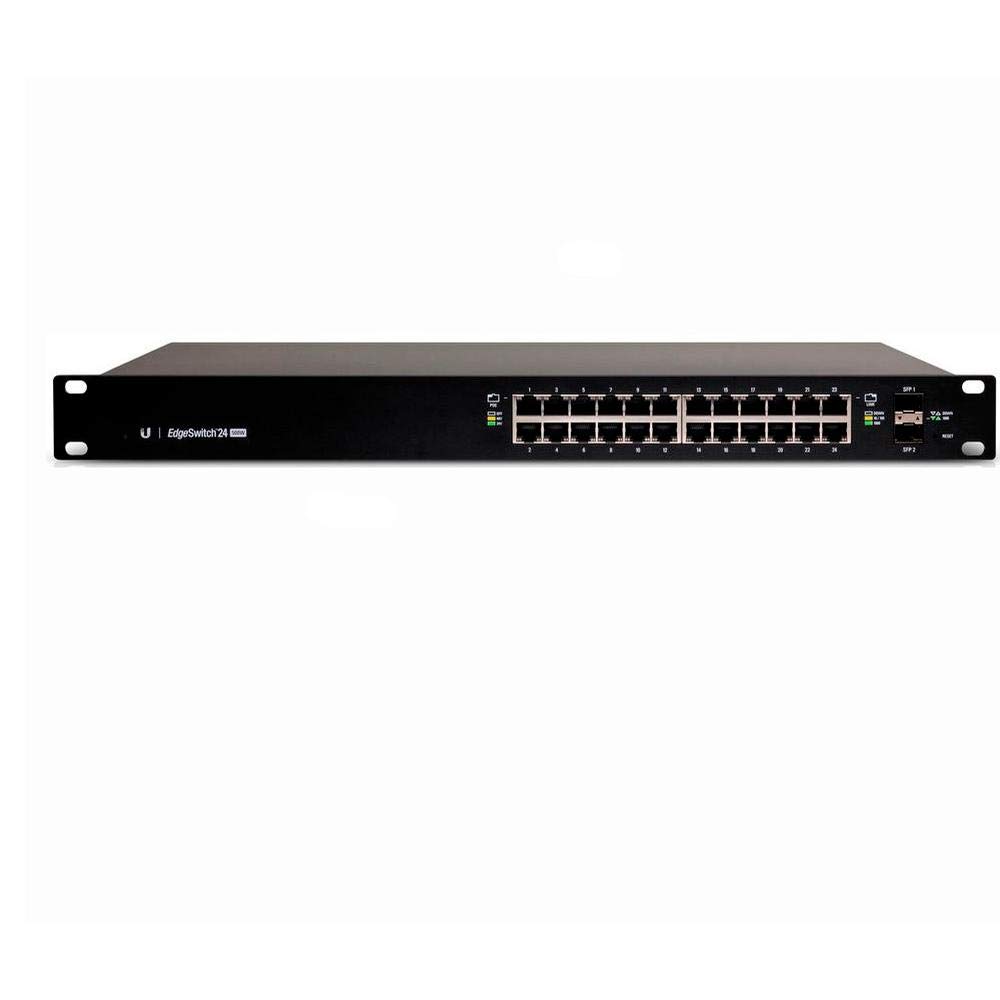

Ubiquiti EdgeSwitch 24-500W-U (ES-24-500W-U)

←
Get Your Custom Quote!

The EdgeSwitch 24-500W-U is a rack-mounted, fully managed Gigabit Ethernet switch with 24 PoE-enabled ports, 2 SFP uplinks, and a 500-watt internal power supply. It supports both PoE+ (802.3af/at) and 24V passive PoE, making it suitable for powering access points, IP cameras, VoIP phones, and other network devices. The “U” variant is designed for US power standards.

SPECIFICATIONS

• Ports:

  • 24 × Gigabit RJ45 ports with PoE

  • 2 × 1G SFP fiber uplink ports

  • 1 × RJ45 console port

• PoE Support:

  • Supports 802.3af/at PoE+ (up to 34.2W per port)

  • Supports 24V passive PoE (up to 17W per port)

  • Total PoE budget: 500W

• Switch Performance:

  • Switching capacity: 52 Gbps

  • Non-blocking throughput: 26 Gbps

  • Forwarding rate: 38.69 Mpps

• Power Input:

  • Internal 500W AC power supply

  • Input voltage: 100–240V AC

  • US power plug standard

• Chassis:

  • 1U rack-mountable metal body

  • Size: 485 × 285.4 × 43.7 mm

  • Weight: approx. 4.8 kg

  • Internal cooling fan

• Environmental:

  • Operating temperature: –5°C to 40°C

  • Humidity: 5% to 95% (non-condensing)

  • ESD protection: ±24kV

• Management Features:

  • Web UI, Command Line Interface (CLI), and UISP (Ubiquiti Software)

  • Layer 2 and Layer 3 support: VLAN, QoS, Link Aggregation, DHCP Snooping, IGMP Snooping, Static Routing
