Description

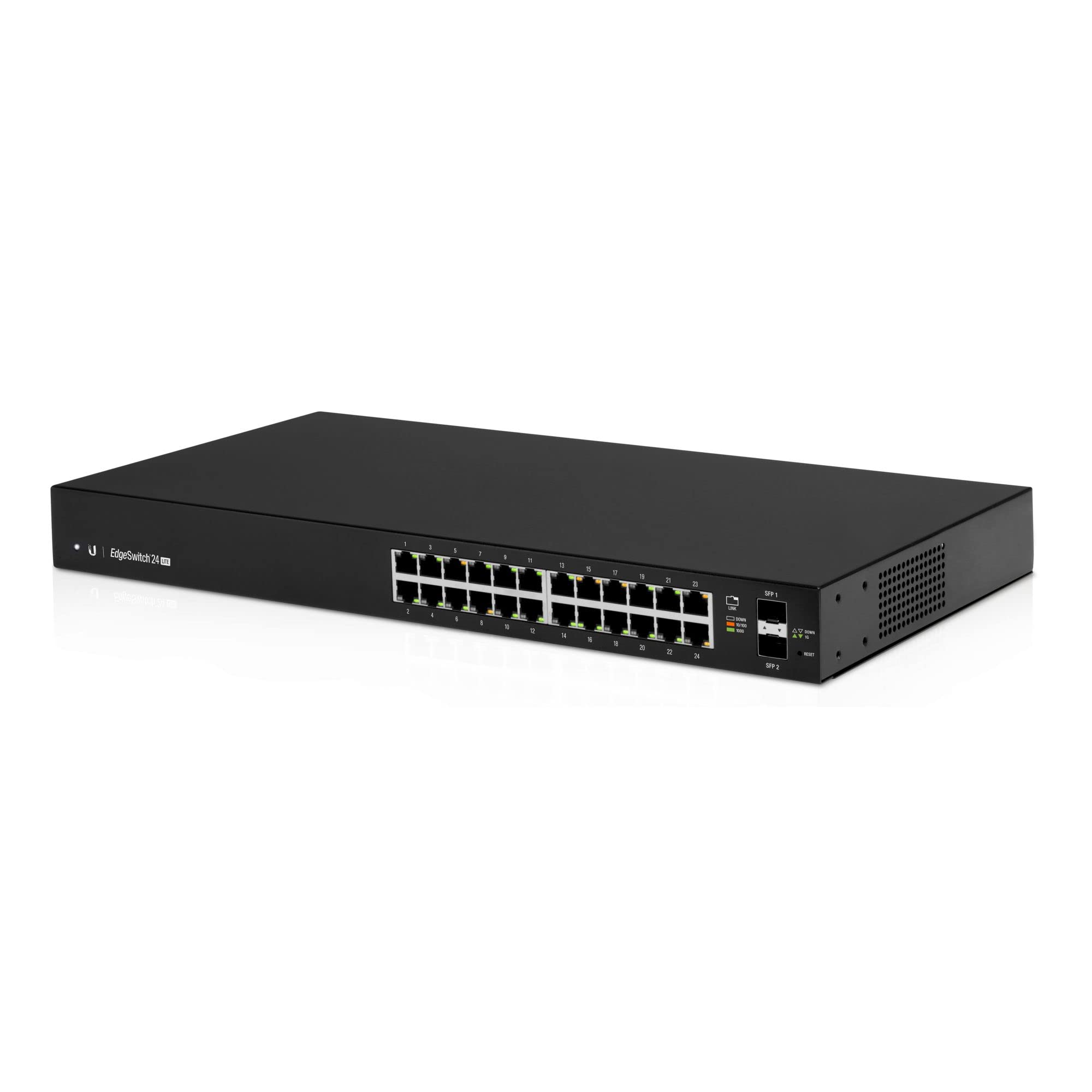

Ubiquiti EdgeSwitch 24 Lite (ES‑24‑Lite)

←
Get Your Custom Quote!

The EdgeSwitch 24 Lite is a fully managed, rack-mountable 24-port Gigabit switch designed for high-performance networking. It provides Layer 2 switching and basic Layer 3 routing features, making it ideal for enterprise and SMB network deployments that do not require PoE. It offers excellent throughput and switching capacity, along with advanced features accessible via web UI, CLI, or UISP.

SPECIFICATIONS

• Ports:

  • 24 × Gigabit RJ45 Ethernet (non-PoE)

  • 2 × 1G SFP fiber uplink ports

  • 1 × RJ45 console port

• Performance:

  • Switching capacity: 52 Gbps

  • Non-blocking throughput: 26 Gbps

  • Forwarding rate: 38.69 Mpps

• Power:

  • Power Input: 100–240V AC, 50/60 Hz

  • Power Consumption: approx. 25W (typical)

  • Internal fanless cooling (silent operation)

• Physical:

  • Form factor: 1U rack-mountable

  • Dimensions: 485 × 285.4 × 43.7 mm

  • Weight: ~3.5 kg

• Software & Management:

  • Layer 2 switching and basic Layer 3 routing

  • VLANs, STP/RSTP, Link Aggregation, IGMP Snooping, Jumbo Frames

  • Web-based UI, CLI (via console or SSH), UISP support

• Environment:

  • Operating temperature: –5°C to 40°C

  • Humidity: 5–95% (non-condensing)

  • Silent, fanless operation
