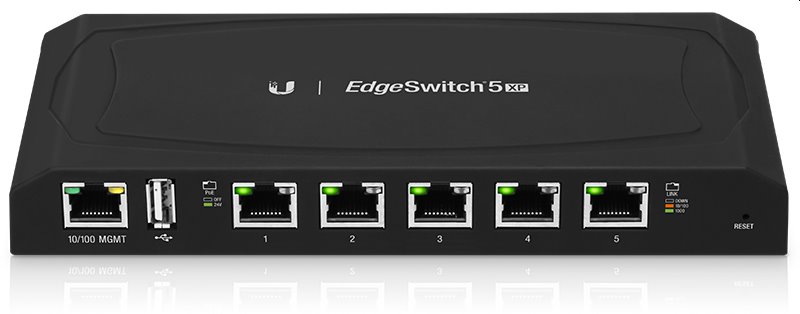

Ubiquiti EdgeSwitch 5XP (ES-5XP-U)

←
Get Your Custom Quote!

The Ubiquiti EdgeSwitch 5XP (ES-5XP-U) is a compact, 5-port Gigabit switch with passive PoE output on all ports, designed for small-scale deployments and outdoor wireless networks. Powered by Ubiquiti’s EdgeOS, it provides intelligent Layer 2 switching, robust performance, and remote management—all in a fanless, wall-mountable form factor. This model is ideal for WISPs, surveillance systems, and installations where silent operation and passive PoE support are required.

SPECIFICATIONS

• Model: ES-5XP-U

• Ethernet Ports: 5 × 10/100/1000 Mbps (RJ45)

• PoE Type: Passive (24V or 48V selectable)

• PoE Output Per Port:

  • 11.5W (24V)

  • 23W (48V)

• Total PoE Budget: Up to 60W

• Switching Capacity: 1 Gbps

• Forwarding Rate: 0.74 Mpps

• Power Input: 24VDC or 48VDC

• Max Power Consumption: 60W

• Management OS: EdgeOS (Web UI + CLI + SNMP)

• Dimensions: 120 x 75 x 23 mm

• Weight: 160 g

• Cooling: Fanless (silent operation)

• Operating Temperature: -25 to 55°C

• Mounting: Wall-mountable
