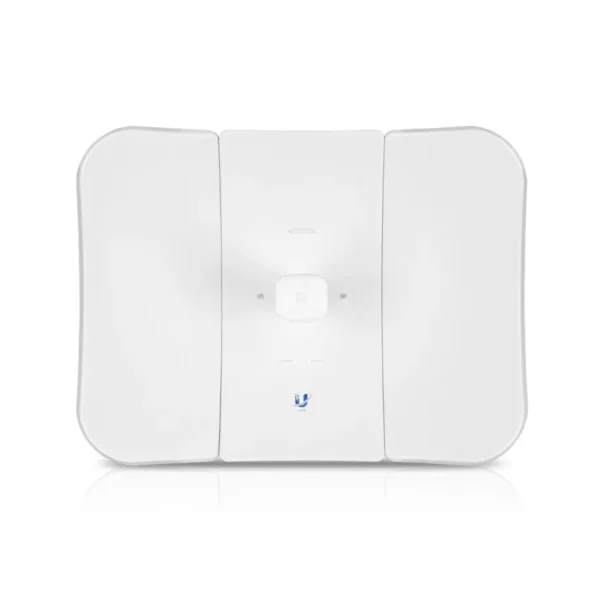

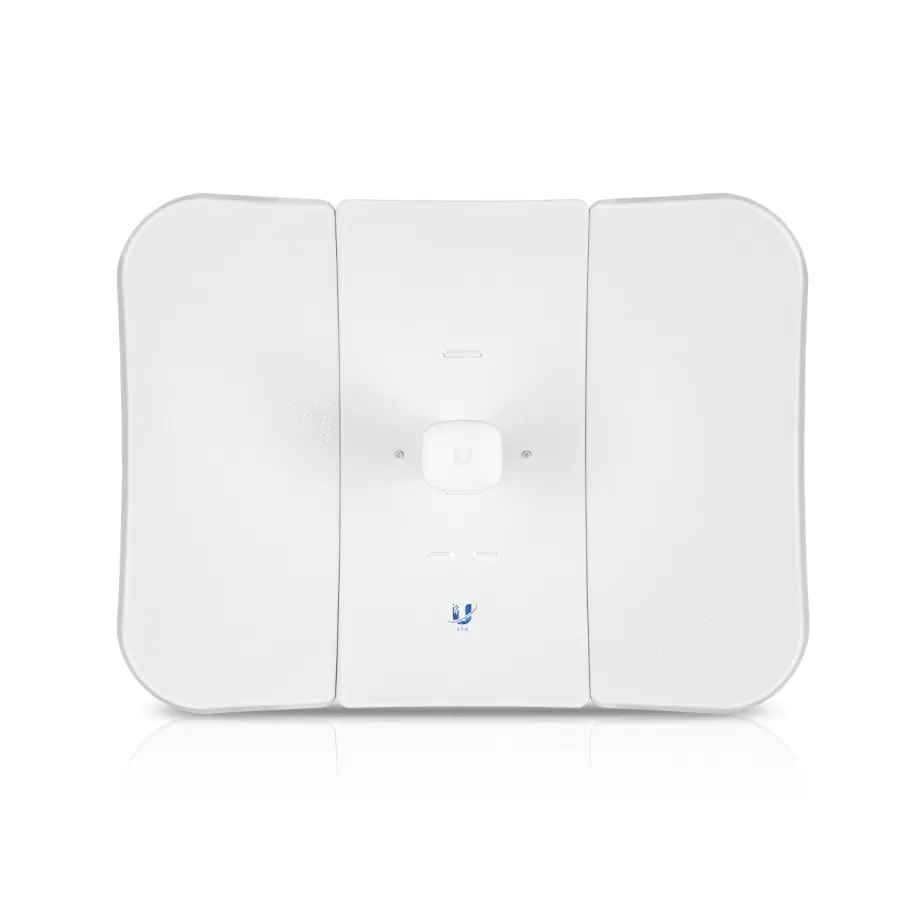

Ubiquiti LTU Long-Range U (LTU-LR-U)

←
Get Your Custom Quote!

The LTU-LR-U is the U.S. version of Ubiquiti’s LTU Long-Range outdoor wireless CPE, engineered for Point-to-Multipoint (PtMP) deployments using Ubiquiti’s proprietary LTU technology. It delivers superior performance with high spectral efficiency, excellent interference rejection, and long-range capabilities. Fully compliant with FCC frequency regulations, it is ideal for long-distance wireless broadband deployments across the U.S.

SPECIFICATIONS

• Processor: Ubiquiti Proprietary LTU Core

• Networking Interface: 1 x 10/100/1000 Mbps Ethernet Port

• Frequency Range (U.S.): 5725 – 5850 MHz (FCC-compliant)

• Antenna Gain: 26 dBi

• Beamwidth: 8.5°

• Technology: Proprietary LTU protocol (non-802.11)

• Max. Power Consumption: 8.5 Watts

• Power Method: 24V Passive PoE (24V, 0.3A adapter included)

• Mounting: Pole mount bracket included

• Management: UISP (Ubiquiti Internet Service Provider platform)

• Dimensions: 512.5 x 384.4 x 258.3 mm

• Weight: 1.360 kg

• Operating Temperature: -40°C to 60°C
