Description

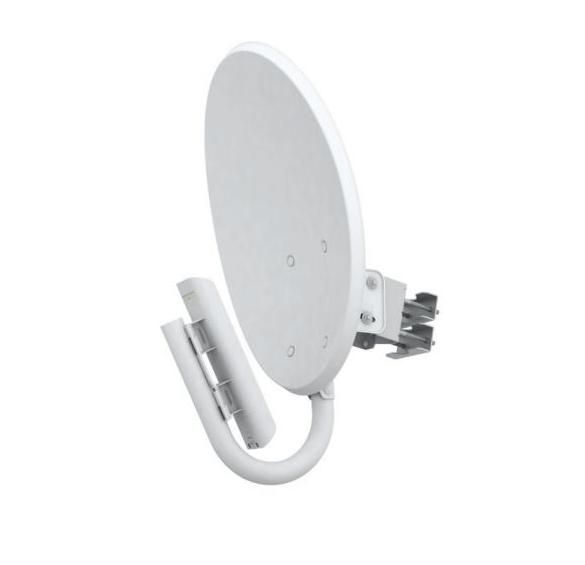

Ubiquiti NanoBridge M3 (NBM3-EU)

←
Get Your Custom Quote!

The Ubiquiti NanoBridge M3 (NBM3-EU) is a European version of the outdoor wireless CPE that integrates a 3 GHz airMAX radio with a parabolic antenna. It is engineered for long-distance point-to-point (PtP) wireless bridging in compliance with EU frequency regulations. It combines high performance and efficiency with carrier-class reliability for rural and enterprise backhaul.

SPECIFICATIONS

• Model: NBM3-EU (Europe version)

• Frequency Range: 3.4 – 3.6 GHz (tuned for European spectrum compliance)

• Antenna Gain: 20 dBi

• Networking Interface: (1) 10/100 Ethernet Port

• Processor: Atheros MIPS 24KC, 400 MHz

• Memory: 32 MB SDRAM / 8 MB Flash

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Power Supply: 24V, 0.5A PoE Adapter

• Max Power Consumption: 5.5 W

• Mounting: Pole Mount with Reflector Dish

• Dimensions:

  • Radio: 163 x 163 x 30 mm

  • Dish: 400 mm diameter

• Weight: 1.5 kg approx.

• Operating Temperature: -30°C to 75°C

• Operating Humidity: 5% to 95% non-condensing

• Compliance: CE-certified for EU markets

• Technology: Ubiquiti airMAX (TDMA protocol)

• Application: Point-to-Point Wireless Backhaul
