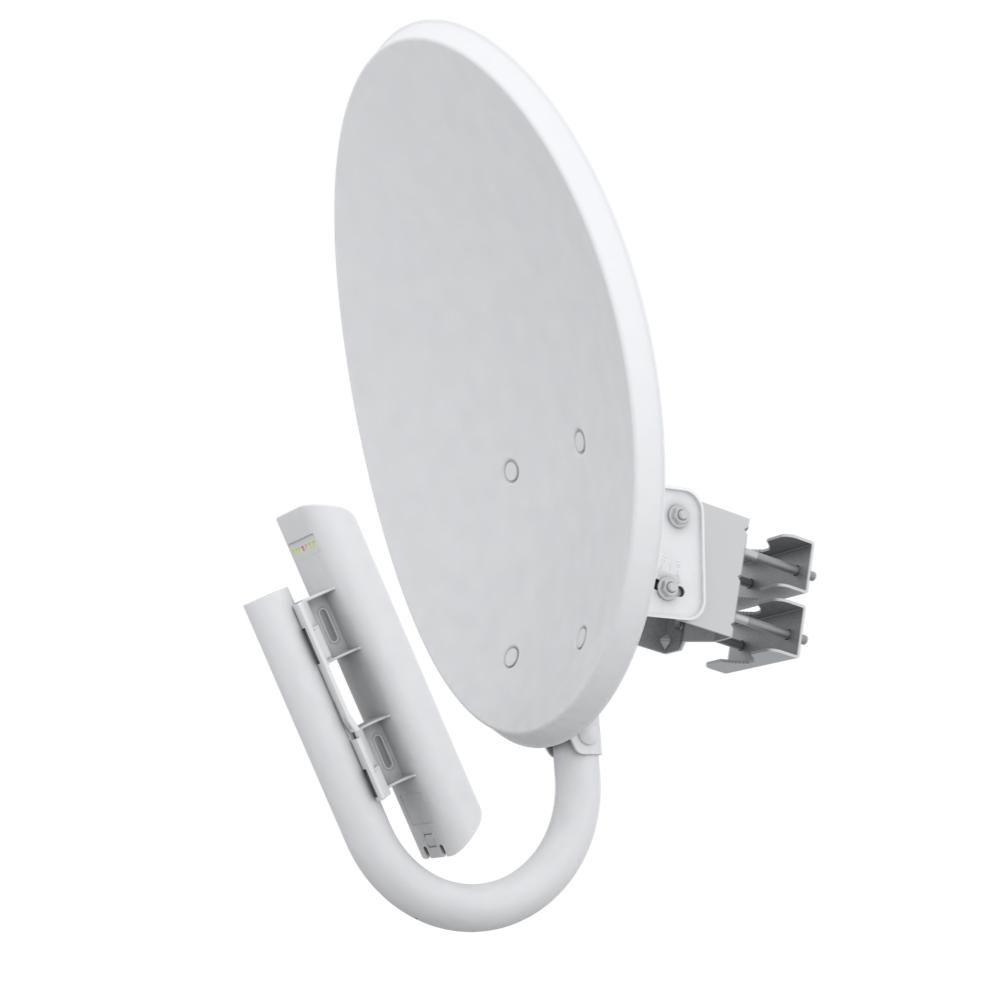

Ubiquiti NanoBridge M365 (NBM365-EU)

←
Get Your Custom Quote!

The Ubiquiti NanoBridge M365-EU is the European version of the outdoor wireless CPE built for licensed 3.65 GHz frequency operations. It integrates a powerful airMAX radio with a high-gain 20 dBi parabolic antenna, optimized for point-to-point (PtP) links over long distances. Compliant with European frequency regulations, the NBM365-EU is ideal for ISPs or enterprise wireless deployments within regulated 3.6–3.7 GHz bands.

SPECIFICATIONS

• Model: NBM365-EU (Europe version)

• Frequency Range: 3.6 – 3.7 GHz (EU-licensed band)

• Antenna Gain: 20 dBi

• Networking Interface: (1) 10/100 Mbps Ethernet Port

• Processor: Atheros MIPS 24KC, 400 MHz

• Memory: 32 MB SDRAM / 8 MB Flash

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Power Supply: 24V, 0.5A PoE Adapter Included

• Max Power Consumption: 5.5 W

• Mounting: Pole-mount with reflector dish

• Dimensions:

  • Radio: 163 x 163 x 30 mm

  • Dish Diameter: 400 mm

• Weight: Approx. 1.5 kg

• Operating Temperature: -30°C to 75°C

• Humidity Tolerance: 5% – 95% non-condensing

• Technology: airMAX TDMA protocol

• Compliance: CE certified for European regulatory standards

• Use Case: Long-range wireless backhaul in licensed EU spectrum
