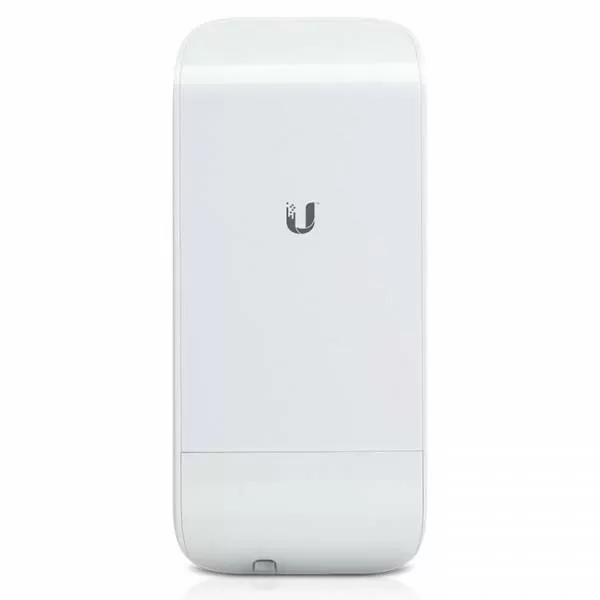

Ubiquiti NanoStation LocoM5 (LOCOM5)

←
Get Your Custom Quote!

The NanoStation LocoM5 is a compact and powerful outdoor wireless CPE that operates on the 5 GHz frequency band. Part of Ubiquiti’s airMAX® M Series, it is designed for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) deployments. Ideal for building-to-building links, ISP last-mile connections, and wireless surveillance, it combines a directional antenna, low power consumption, and efficient performance in a small form factor.

SPECIFICATIONS

• Processor: Atheros MIPS 24KC, 400 MHz

• Memory: 32 MB SDRAM, 8 MB Flash

• Networking Interface: 1 x 10/100 Mbps Ethernet Port

• Frequency Range: 5170 – 5875 MHz (varies by country/region)

• Antenna Gain: 13 dBi

• Beamwidth: 45° (H) / 45° (V)

• Power Supply: 24V, 0.5A Passive PoE Adapter (included)

• Max. Power Consumption: 5.5 Watts

• Mounting: Pole-mount hardware included

• Operating Temperature: -30 to 75°C

• Wireless Standards: 802.11a/n

• Dimensions: 163 x 80 x 31 mm

• Weight: 180 g

• airMAX® Technology: Yes, with TDMA protocol
