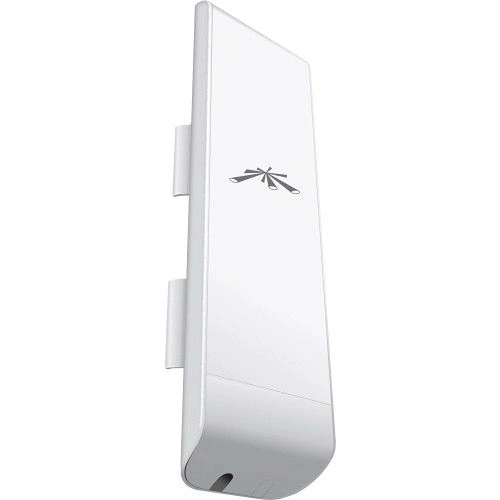

Ubiquiti NanoStation M365 (NSM365-U)

←
Get Your Custom Quote!

The NSM365-U is a high-performance outdoor wireless device that operates in the licensed 3.65 GHz band. Designed specifically for U.S. deployments, it integrates a radio and directional antenna in a compact, weatherproof enclosure. Ideal for service providers using licensed wireless broadband in point-to-point (PtP) or point-to-multipoint (PtMP) configurations.

SPECIFICATIONS

• Model Code: NSM365-U

• Frequency Band: 3.65 GHz (licensed – U.S. region)

• Wireless Standard: 802.11a/n

• Maximum Throughput: Up to 150 Mbps

• Antenna Type: Integrated panel

• Antenna Gain: 13 dBi

• Beamwidth: 45° (H) × 45° (V)

• Range: Several kilometers with clear line-of-sight

• Ethernet Ports:

  • 2 × 10/100 Mbps

  • Secondary port supports PoE passthrough

• Processor: Atheros MIPS 24Kc, 400 MHz

• Memory: 32 MB RAM, 8 MB Flash

• Power Input:

  • 24V Passive PoE (power adapter included)

• Power Consumption: Max 8 Watts

• Mounting: Pole-mount kit included

• Dimensions: 294 × 80 × 31 mm

• Weight: ~400 g

• Enclosure: UV-resistant, weatherproof plastic

• Operating Temperature: –30°C to +75°C

• Management Interface: airOS (web-based)
