Ubiquiti PowerBeam 5AC 620 US (PBE-5AC-620-U)

←
Get Your Custom Quote!

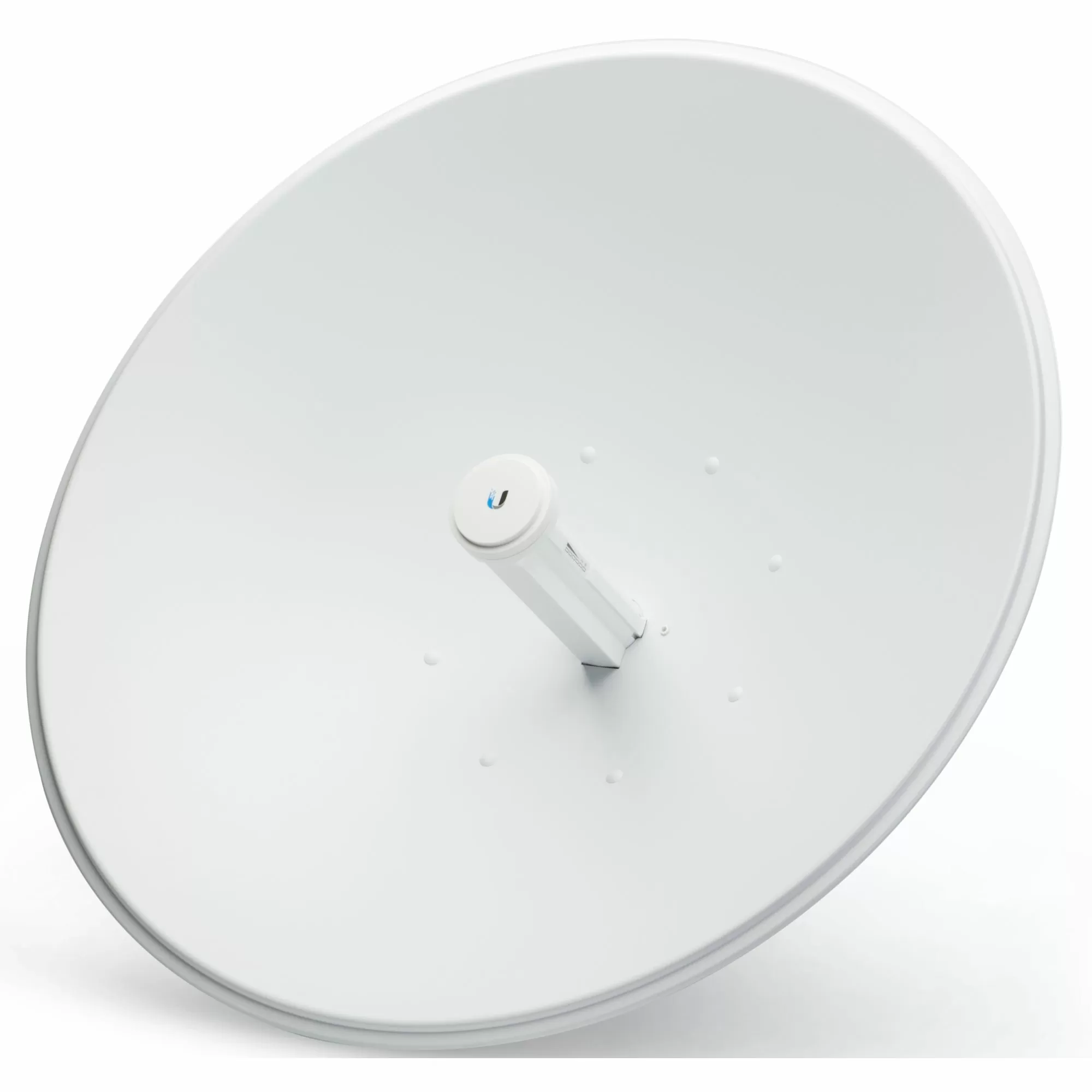

The Ubiquiti PowerBeam 5AC 620-U is the US-region version of the high-performance 5 GHz airMAX® ac CPE, optimized for long-range connectivity. With a large 620 mm parabolic dish antenna, it offers exceptional gain and narrow beamwidth for reliable point-to-point links even in high-interference areas. Its integrated radio design simplifies installation while providing excellent network performance.

SPECIFICATIONS

• Processor: Atheros MIPS 74KC, 720 MHz

• Memory: 128 MB DDR2 RAM, 8 MB Flash

• Networking Interface: (1) 10/100/1000 Ethernet port

• Frequency Range (US): 5725 – 5850 MHz (FCC-compliant)

• Antenna Gain: 29 dBi (620 mm parabolic dish)

• Wireless Standards: airMAX ac (802.11ac)

• Power Method: Passive PoE (24V, 0.5A)

• Power Consumption: Max 8.5W

• Mounting: Pole mount kit included

• Wind Survivability: 200 km/h

• Operating Temperature: -40 to 70°C

• Dimensions: 678 x 678 x 387 mm

• Weight: 3.9 kg (with mounting)
