Ubiquiti PowerBeam M5 300 US (PBE-M5-300-U)

←
Get Your Custom Quote!

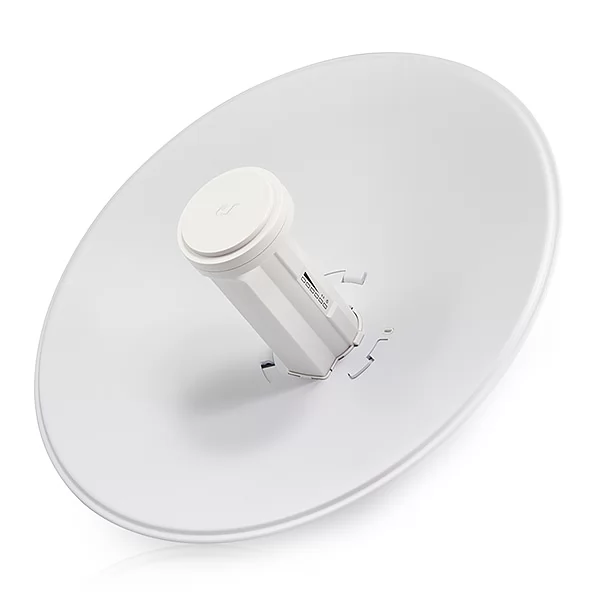

The Ubiquiti PowerBeam M5 300-U is the US-region version of the 5 GHz airMAX® CPE. It features a compact 300 mm dish antenna with 22 dBi gain and an integrated radio, delivering focused beam directivity and improved noise immunity. Designed for point-to-point or point-to-multipoint long-range wireless links, it provides reliable performance in high-interference environments and is easy to install thanks to its all-in-one design.

SPECIFICATIONS

• Processor: Atheros MIPS 74KC, 560 MHz

• Memory: 64 MB DDR2 RAM, 8 MB Flash

• Networking Interface: (1) 10/100 Ethernet port

• Frequency Range (US): 5725 – 5850 MHz (FCC-compliant)

• Antenna Gain: 22 dBi (300 mm parabolic dish)

• Wireless Standards: airMAX (802.11a/n)

• Power Method: Passive PoE (24V, 0.5A)

• Power Consumption: Max 6W

• Mounting: Includes pole mount kit

• Wind Survivability: 200 km/h

• Operating Temperature: -40 to 70°C

• Dimensions: 325 x 325 x 256 mm

• Weight: 1.2 kg (with mount)

• Compliance: FCC certified for US use
