Ubiquiti UA-Intercom-Viewer

←
Get Your Custom Quote!

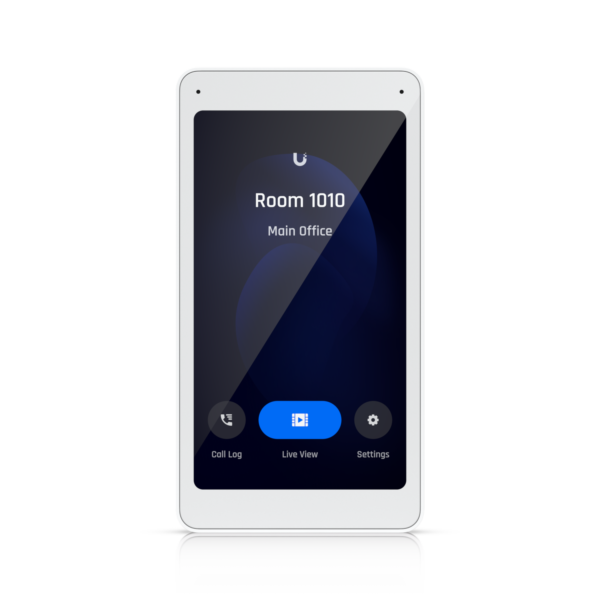

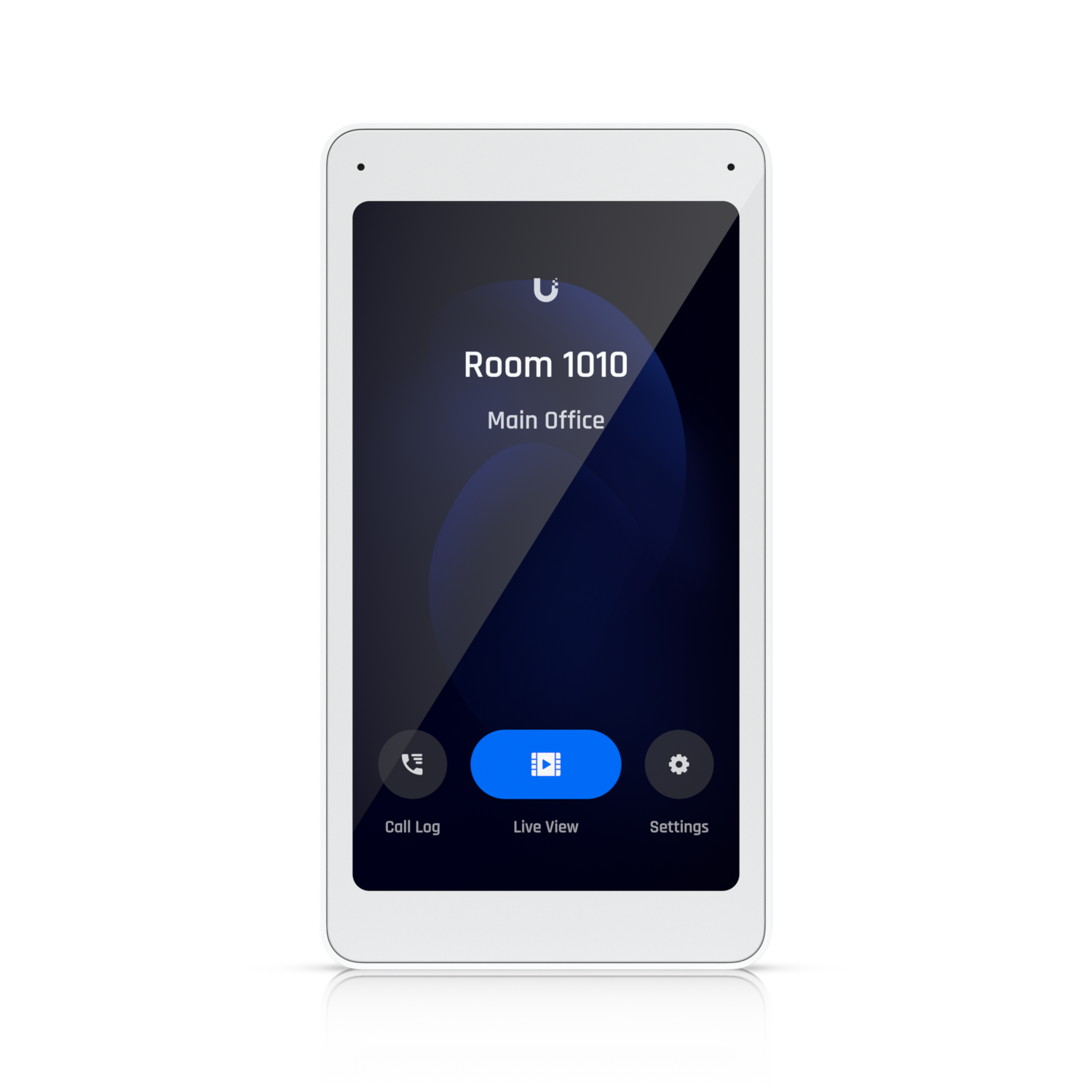

The Ubiquiti UA-Intercom-Viewer is a 5″ touchscreen display designed to integrate seamlessly with the UniFi Access system. It facilitates visitor screening and remote access control, offering a convenient solution for mounting in various locations within your building.

SPECIFICATIONS

• Model: UA-Intercom-Viewer
• Display: 5″ capacitive multi-touch screen
• Resolution: 1280 x 720 pixels
• Display Luminance: 300 nits (typical)
• Screen Orientation: Portrait
• Audio: Built-in microphone and speaker for two-way communication
• Networking Interface: (1) 10/100 Mbps RJ45 Ethernet port
• Power Method: 802.3af PoE
• Supported Voltage Range: 44–57V DC
• Max. Power Consumption: 5W
• Dimensions: 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3″)
• Weight: 168 g (5.9 oz)
• Enclosure Material: Glass, polycarbonate
• Mount Material: Aluminum alloy
• Mounting Options: Wall mount (included), gang box mount (optional)
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Operating Humidity: 5 to 95% non-condensing
• Environment: Indoor use only
• Management: UniFi Access Controller (version 1.22.17 and later)
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
