Ubiquiti UniFi Enterprise Access Hub (EAH-8)

$1,878.00

Out of stock

SKU: EAH-8 Category:

Description

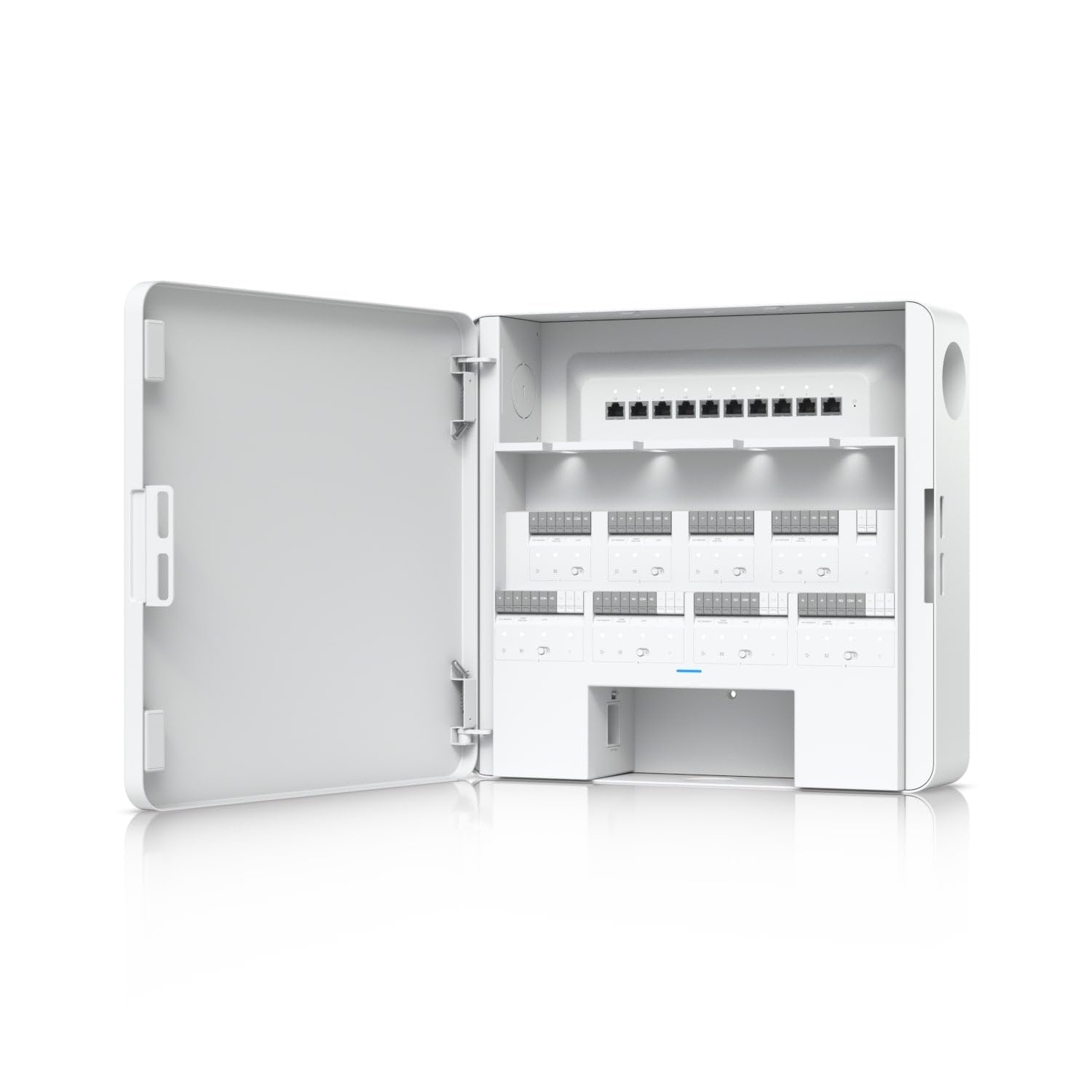

Ubiquiti UniFi Enterprise Access Hub (EAH-8)

WhatsApp Icon

←
Get Your Custom Quote!


The Ubiquiti UniFi Enterprise Access Hub (EAH-8) is an enterprise-grade access control solution designed to manage entry and exit for up to eight doors. It integrates seamlessly with UniFi Access Readers and supports both 12V and dry contact locks. The hub features eight PoE ports for reader connections, eight lock terminals, and auxiliary terminals for additional devices like chimes or sirens. It also includes a battery backup input to ensure uninterrupted operation during power outages.

SPECIFICATIONS

  • Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1″)

  • Weight: 9.1 kg (20 lb)

  • Enclosure Material: SGCC housing with PC cover

  • Mounting: Wall-mountable with SGCC wall mount plate

  • Networking Interface: (10) 10/100/1000 Base-T RJ-45 ports

  • Power Method: Universal input, 100–240V AC, Max. 4.4A, 50/60Hz; 32–48V DC Lead Acid Battery, Max. 7.5A @32V

  • Power Supply: Internal AC/DC

  • Maximum Power Consumption: 240W

  • PoE Interface: (8) PoE ports (Pins 1, 2+; 3, 6-)

  • PoE Voltage Range: 44–57V DC

  • Total Available PoE: 60W

  • Maximum PoE Wattage per Port: 15.4W

  • Lock Terminals: (8) 12V or Dry contact outputs

  • Digital Inputs: (8) Request-to-exit devices; (8) Door position sensors; (1) Emergency input

  • AUX Terminals: (4) for chimes, sirens, or door openers

  • Operating Temperature: 0 to 40°C (32 to 104°F)

  • Operating Humidity: 5% to 95% non-condensing



Brand

Ubiquiti
