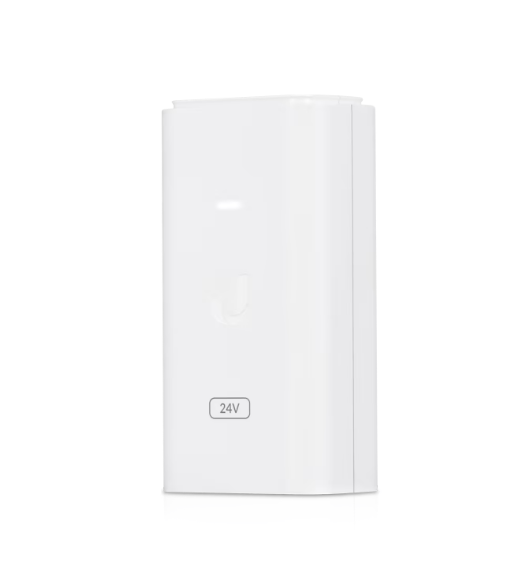

24V PoE Adapter (POE-24-12W-G-WH)

The 24V PoE Adapter (POE-24-12W-G-WH) is a white, passive Gigabit PoE injector that delivers 24V DC power and data connectivity to compatible Ubiquiti devices. It includes built-in surge protection and a convenient remote reset button for troubleshooting connected devices.

Specifications:

• Model: 24V PoE Adapter (POE-24-12W-G-WH)

• Device Type: Passive PoE Injector

• Function: Delivers 24V DC power and Gigabit data to compatible PoE devices over Ethernet

• Color: White

• Networking Interface: 1 x Gigabit LAN In / 1 x Gigabit PoE Out (shielded RJ45 sockets)

• Output Voltage: 24V DC @ 0.5A

• Max. Power Output: 12W

• Power Method: 100–240V AC @ 50/60Hz (IEC-320 C6 connector)

• Remote Reset Capability: Yes, with reset button

• Powering Mode: 2-pair (Pins 4, 5+ and 7, 😎

• Surge Protection: Difference and common mode; clamping protection (11V data, 60V power)

• Dimensions: 87 x 44 x 29 mm (3.4 x 1.7 x 1.1″)

• Weight: 99 g (3.5 oz)

• Enclosure Material: Polycarbonate

• Operating Temperature: 0 to 40° C (32 to 104° F)

• Certifications: CE, FCC, IC, UL

• NDAA Compliant: Yes

• Use Case: Powering 24V Ubiquiti devices such as airMAX, EdgeMAX, UniFi APs, and airGateway

• Design: Compact white desktop adapter with wall-mounting capability
