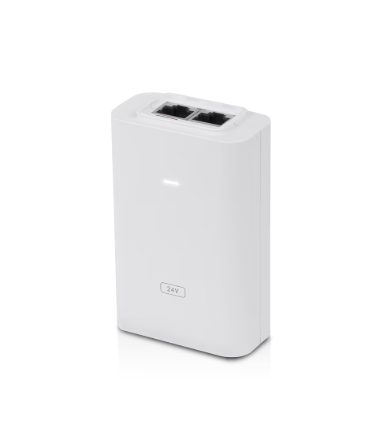

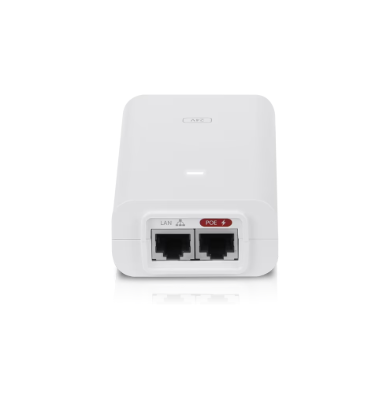

24V PoE Adapter (POE-24-24W-G-WH)

The 24V PoE Adapter (POE-24-24W-G-WH) is a white, passive Gigabit PoE injector that delivers 24V DC at 1.0A (24W) to compatible Ubiquiti devices . Designed with a grounded AC cable for ESD protection, it features a convenient reset button for remotely rebooting or factory resetting equipment installed in hard-to-reach locations .

Specifications:

• Model: 24V PoE Adapter (POE-24-24W-G-WH)

• Device Type: Passive Gigabit PoE Injector

• Function: Delivers 24V DC power and Gigabit data to compatible PoE devices over a single Ethernet cable

• Color: White

• Networking Interface: 1 x Gigabit LAN In / 1 x Gigabit PoE Out (shielded RJ45 sockets)

• Output Voltage: 24V DC @ 1.0A

• Max. Power Output: 24W

• Power Method: 100–240V AC @ 50/60Hz (IEC-320 C6 connector)

• Powering Mode: 2-Pair (Pins 4, 5+ and 7, 😎

• Remote Reset Capability: Yes, with reset button

• Surge Protection: Difference and common mode; clamping protection (11V data, 60V power); max. surge discharge 1500A (8/20 µs) power

• Efficiency: 86.2%+

• Dimensions: 96 x 62 x 35 mm (3.78 x 2.44 x 1.38″)

• Weight: 166 g (5.9 oz)

• Enclosure Material: Polycarbonate

• Operating Temperature: 0 to 40° C (32 to 104° F)

• Operating Humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC, UL

• NDAA Compliant: Yes

• Use Case: Powering Ubiquiti devices such as airMAX, EdgeMAX, UniFi APs, and airFiber that support 24V passive PoE

• Design: Compact white desktop adapter with shielded RJ45 ports; AC cable with earth ground included (region-specific)
