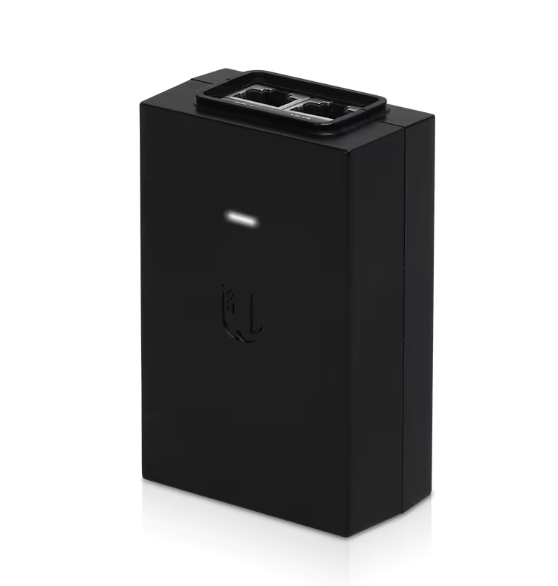

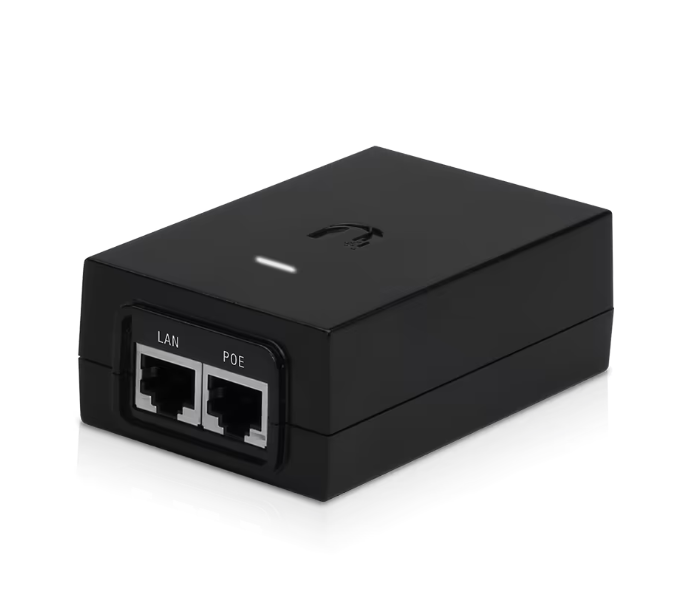

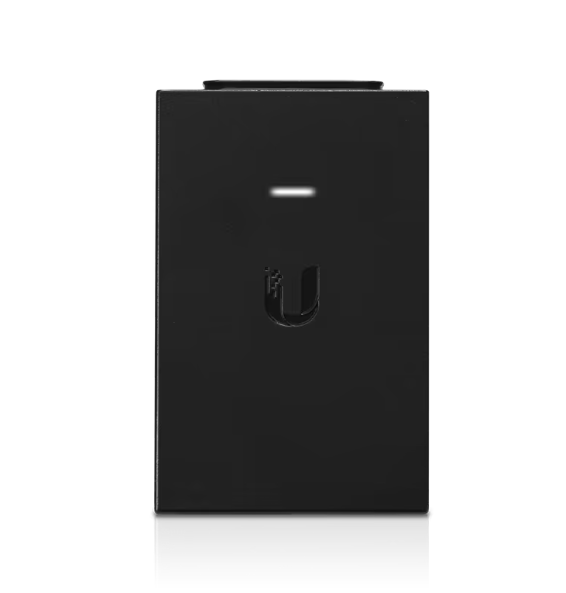

24V PoE Adapter (POE-24-24W-G)

The 24V PoE Adapter (POE-24-24W-G) is a passive Gigabit PoE injector delivering 24V DC at 1.0A (24W) to compatible Ubiquiti devices. Featuring a Gigabit Ethernet port, remote reset capability via a reset button, and integrated surge protection, it is a reliable power solution for airMAX, EdgeMAX, and UniFi APs .

Specifications:

• Model: 24V PoE Adapter (POE-24-24W-G)

• Device Type: Passive Gigabit PoE Injector

• Function: Delivers 24V DC power and Gigabit data connectivity to compatible PoE devices over a single Ethernet cable

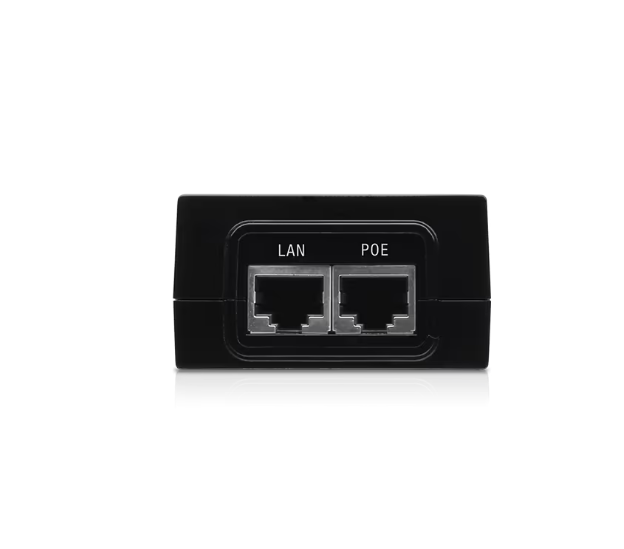

• Networking Interface: 1 x Gigabit LAN In / 1 x Gigabit PoE Out (shielded RJ45 sockets)

• Output Voltage: 24V DC @ 1.0A

• Max. Power Output: 24W

• Power Method: 100–240V AC @ 50/60Hz (IEC-320 C6 connector)

• Powering Mode: 2-Pair (Pins 4, 5+ and 7, 😎

• Remote Reset Capability: Yes, with reset button

• Surge Protection: Difference and common mode; clamping protection (11V data, 60V power); max. surge discharge 1500A (8/20 μs)

• Dimensions: 88 x 57 x 33 mm (3.5 x 2.2 x 1.3″)

• Weight: 159 g (5.6 oz)

• Enclosure Material: Polycarbonate

• Use Case: Powering Ubiquiti devices such as airMAX, EdgeMAX, UniFi APs, and airFiber that support 24V passive PoE

• Operating Temperature: 0 to 40° C (32 to 104° F)

• Certifications: CE, FCC, IC, UL

• Design: Compact desktop adapter with shielded RJ45 ports; AC cable with earth ground included (region-specific)
