24V PoE Adapter (POE-24-7W-G-WH)

The 24V PoE Adapter (POE-24-7W-G-WH) is a low-power, passive PoE injector that delivers 24V DC at 0.3A (7W) and Gigabit Ethernet to compatible Ubiquiti devices. Featuring a compact white housing, remote reset capability, and integrated surge protection with a grounded AC cable, it provides a reliable solution for powering devices in indoor environments.

Specifications:

• Model: 24V PoE Adapter (POE-24-7W-G-WH)

• Device Type: Passive PoE Injector (Low-Power)

• Function: Delivers 24V DC power and Gigabit data to compatible PoE devices over Ethernet

• Color: White

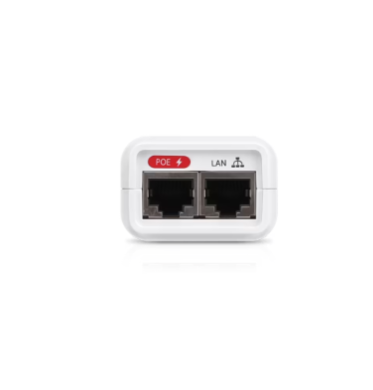

• Networking Interface: 1 x Gigabit LAN In / 1 x Gigabit PoE Out (shielded RJ45 sockets)

• Output Voltage: 24V DC @ 0.3A

• Max. Power Output: 7.2W

• Power Method: 100–240V AC @ 50/60Hz (IEC-320 C6 connector)

• Input Current: 0.3A @ 120V AC, 0.2A @ 240V AC

• Efficiency: 80+%

• Remote Reset Capability: Yes, with reset button

• Powering Mode: 2-pair (Pins 4, 5+ and 7, 😎

• Surge Protection: Difference and common mode; clamping protection (11V data, 60V power)

• Max. Surge Discharge: 1500A (8/20 μs) power

• Dimensions: 72 x 45 x 33 mm (2.8 x 1.8 x 1.3″)

• Weight: 72.1 g (2.5 oz)

• Enclosure Material: Polycarbonate

• Operating Temperature: 0 to 40° C (32 to 104° F)

• Operating Humidity: 35 to 95% noncondensing

• Certifications: CE, FCC, IC, UL

• NDAA Compliant: Yes

• Use Case: Powering low-power Ubiquiti devices such as airMAX, airGateway, and select UniFi APs that support 24V passive PoE

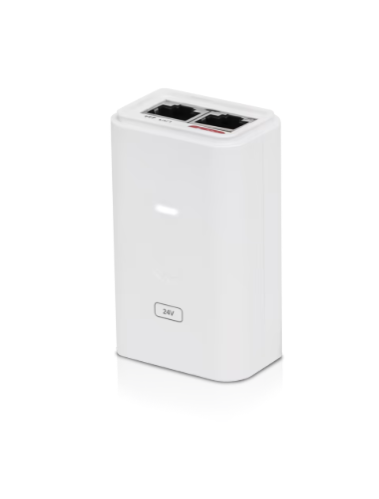

• Design: Compact white desktop adapter with wall-mounting capability and grounded AC cable for ESD protection
