Description

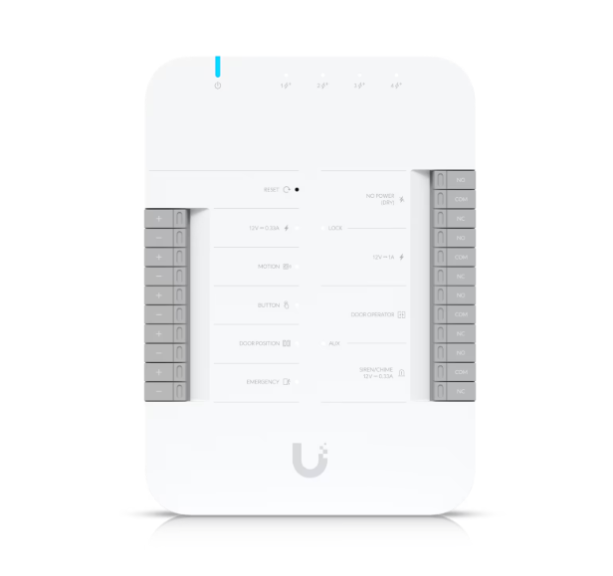

Access Door Hub (UA-Hub-Door)
The UniFi Access Door Hub (UA-Hub-Door) is a single-door IP networked access controller that provides complete entry and exit control via connected UniFi Access Readers . It supports a wide range of locking mechanisms, including electric bolts, strikes, and magnetic locks, and offers comprehensive I/O functionality for enhanced control and monitoring .
Specifications:
-
Model: UniFi Access Door Hub (UA-Hub-Door)
-
Device Type: Single-Door IP Networked Access Controller
-

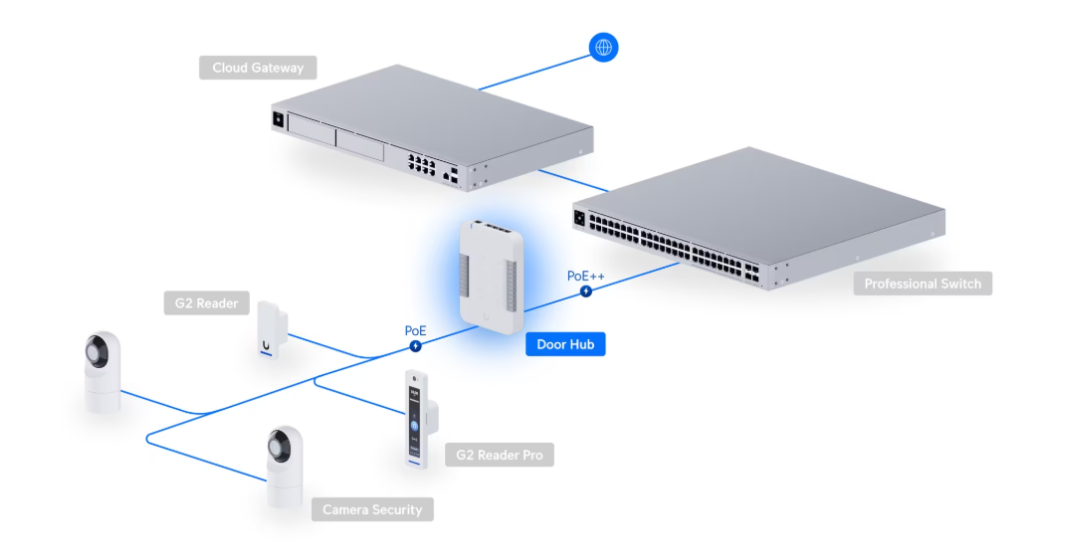

Function: Centralized entry and exit control for a single door via connected readers
-

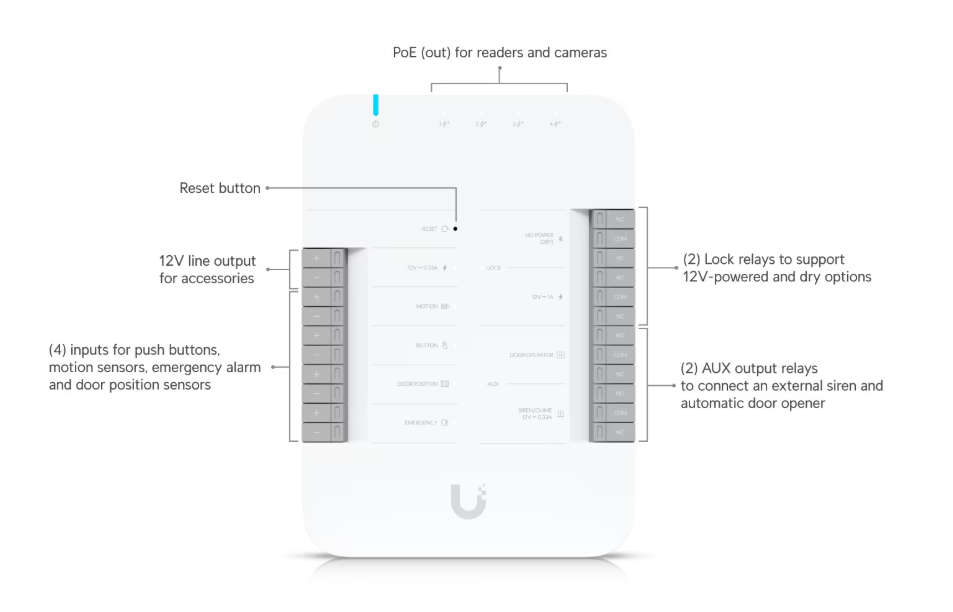

Lock Terminals: (2) Lock terminals (12V and dry), compatible with electric bolts/strikes and magnetic locks
-
AUX Terminals: (2) AUX terminals for connecting external sirens, automatic door openers, or chimes
-
Input Terminals: (4) Inputs for motion sensors, request-to-exit buttons, door position sensors, and emergency alarms
-
PoE Ports: (4) PoE ports for connecting UniFi Access Readers, UniFi Protect cameras, or UniFi Protect Chimes
-

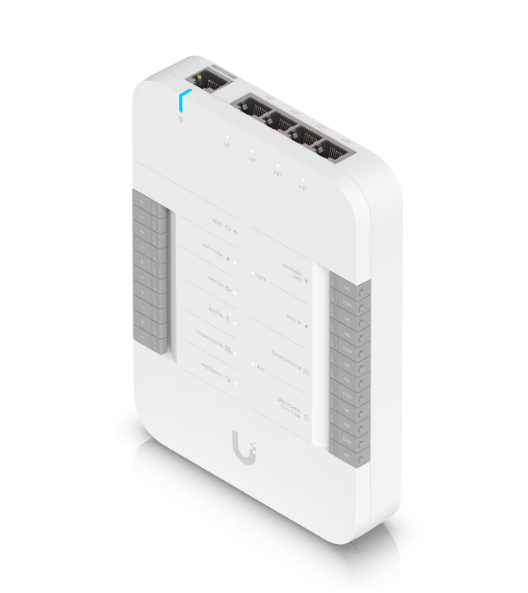

Networking: (4) 1 Gbps Ethernet ports (3 PoE-out)
-
Power Method: PoE++ (802.3bt)
-
Max Power Consumption: 40W-50W
-
PoE Output Budget: 20W total
-

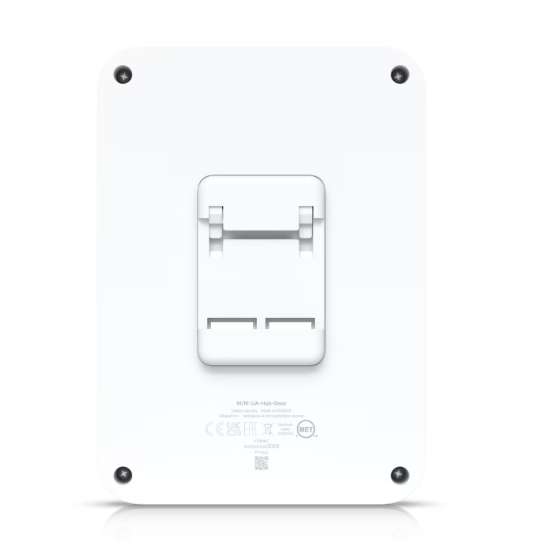

Mounting: DIN rail or wall mount (metal mount plate included)
-

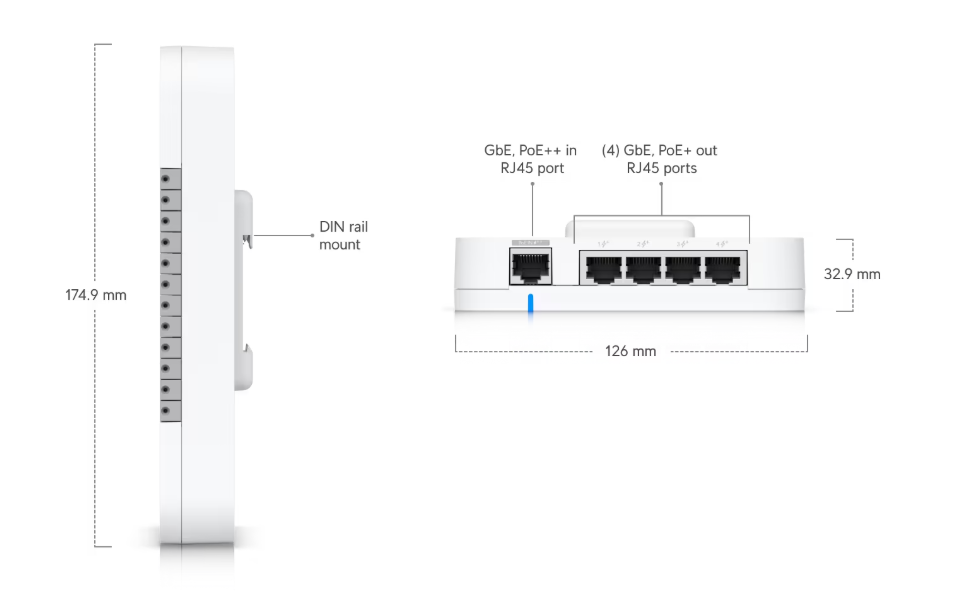

Dimensions: 190 x 126 x 33 mm (7.48 x 4.96 x 1.29″)
-
Weight: 457 g (16.12 oz)
-
Enclosure Material: Polycarbonate with metal mount plate
-
Use Case: Single-door access management for offices, residential buildings, commercial facilities, and controlled entry points
-
Security Features: UL 294 Level I certification, CAN/ULC-60839-11-1 Grade I, CE, FCC, IC compliance
-
Management: Managed via UniFi Access application (requires UniFi Dream Machine Pro or UniFi Cloud Key Plus)
-
Design: Compact indoor enclosure with reset button and LED indicators (System, PoE Out, Input, Output Relays)
-
Operating Environment: Indoor use only, 0 to 40° C (32 to 104° F), 5 to 95% noncondensing humidity
