Description
Access Point U7 In-Wall (U7-IW)
The UniFi Access Point U7 In-Wall (U7-IW) is a high-performance WiFi 7 in-wall access point designed to deliver fast, reliable wireless connectivity while providing convenient wired network expansion for homes, hotels, offices, and business environments. Featuring dual-band WiFi 7 technology, enhanced efficiency, lower latency, and high-speed wireless performance, the U7-IW offers seamless coverage and integrated Ethernet ports for connecting wired devices. Its sleek in-wall design, PoE support, and centralized UniFi management make it an ideal solution for modern wireless networking and room-by-room deployments.
Specifications:
- Model: UniFi Access Point U7 In-Wall (U7-IW)
- Device Type: Dual-Band WiFi 7 In-Wall Access Point
- WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 4, WiFi 5, WiFi 6, WiFi 7)
- Frequency Bands: 2.4 GHz & 5 GHz Dual-Band
- Maximum Data Rate: Up to 688 Mbps (2.4 GHz) / 4.3 Gbps (5 GHz)
- MIMO Technology: 2×2 MU-MIMO (2.4 GHz) / 2×2 MU-MIMO (5 GHz)
- Ethernet Ports: 1 × 2.5 GbE RJ45 (PoE Input) + 4 × 2.5 GbE RJ45 LAN Ports
- Coverage Area: Up to 115 m² (1,250 ft²)
- Concurrent Clients: 200+ Connected Devices
- Management: UniFi Network Controller, UniFi OS, UniFi Mobile App, Cloud Management, Remote Access
- Power Method: PoE+ (802.3at)
- Power Consumption: Maximum 22W
- Mounting: In-Wall Mount (Single-Gang Wall Box)
- Operating Temperature: -30°C to 40°C (-22°F to 104°F)

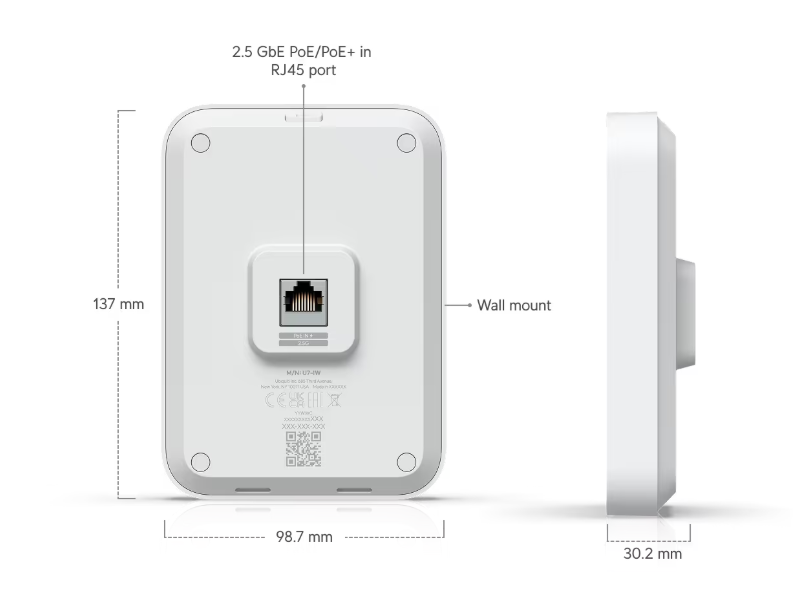

- Dimensions: 137 × 97.5 × 33.7 mm (5.39 × 3.84 × 1.33″)
- Use Case: Hotels, apartments, offices, student housing, retail stores, hospitality, and room-by-room WiFi deployments requiring both wireless and wired connectivity.
- Security Features: WPA2/WPA3 Encryption, Guest Network Support, VLAN Integration, Traffic Isolation
- Management Features: Centralized Monitoring, Device Analytics, Wireless Optimization, Firmware Management, Remote Troubleshooting
- Design: Low-Profile In-Wall Access Point with Integrated Multi-Gigabit Ethernet Switch and LED Status Indicator
- Compatibility: Fully Integrated with UniFi Network Application and UniFi Ecosystem Devices.
