Description
Access Point U7 Lite (U7-Lite)
The UniFi Access Point U7 Lite (U7 Lite) is a high-performance WiFi 7 access point designed to deliver ultra-fast, reliable wireless connectivity for homes, offices, and business environments. Featuring dual-band WiFi 7 technology, improved efficiency, lower latency, and enhanced performance for high-density client deployments, the U7 Lite provides expanded coverage, faster speeds, and seamless integration with the UniFi ecosystem. Its compact design, PoE support, and centralized UniFi management make it an ideal solution for next-generation wireless networking.
Specifications:
- Model: UniFi Access Point U7 Lite (U7 Lite)
- Device Type: Dual-Band WiFi 7 Access Point
- WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 4, WiFi 5, WiFi 6, WiFi 7)
- Frequency Bands: 2.4 GHz & 5 GHz Dual-Band
- Maximum Data Rate: Up to 688 Mbps (2.4 GHz) / Up to 4.3 Gbps (5 GHz)
- MIMO Technology: 2×2 MU-MIMO (2.4 GHz) / 2×2 MU-MIMO (5 GHz)

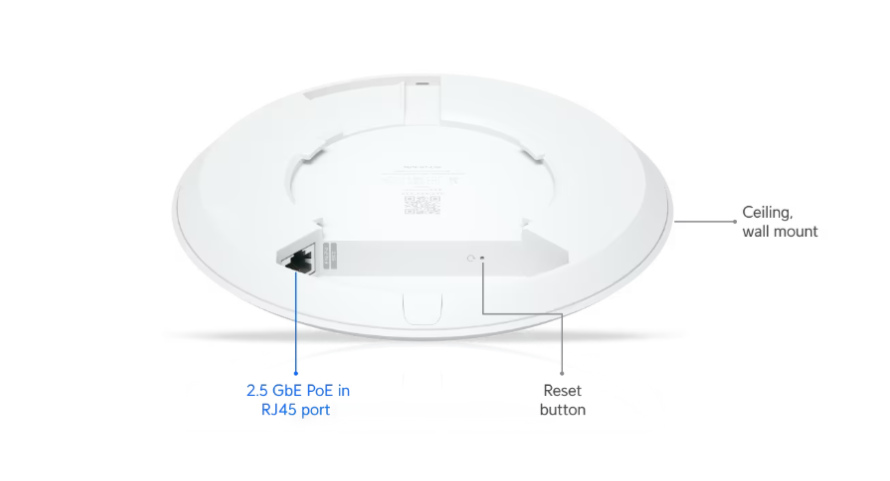

- Ethernet Port: 1 × 2.5 GbE RJ45 Port (PoE Input)
- Coverage Area: Up to 115 m² (1,250 ft²)
- Concurrent Clients: 200+ Connected Devices
- Management: UniFi Network Controller, UniFi OS, UniFi Mobile App, Cloud Management, Remote Access
- Power Method: PoE (802.3af)
- Power Consumption: Maximum 13W

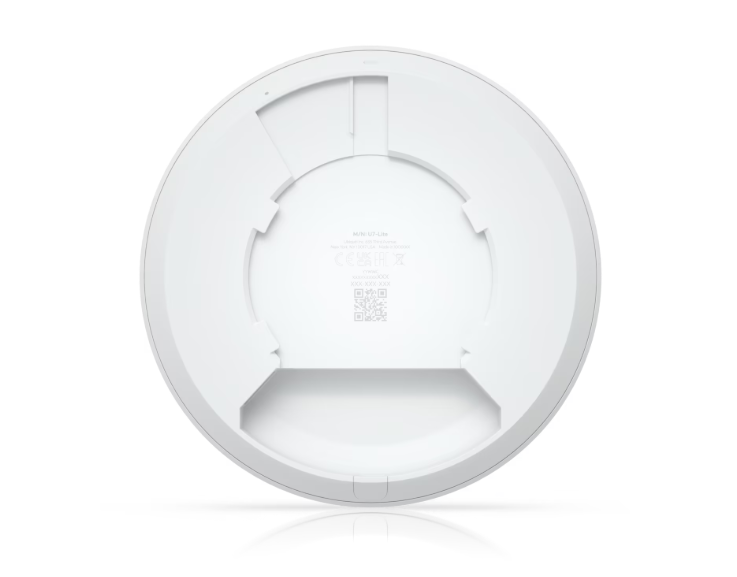

- Mounting: Wall or Ceiling Mount
- Operating Temperature: -30°C to 40°C (-22°F to 104°F)

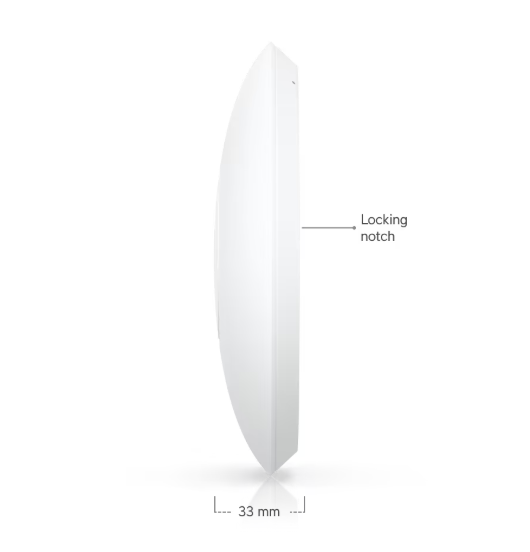

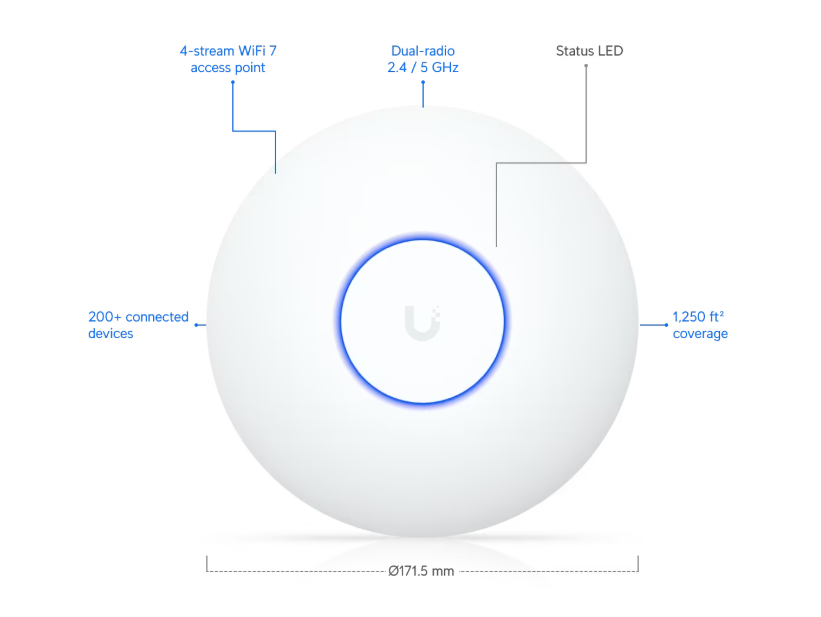

- Dimensions: Ø171.5 × 33 mm (6.75 × 1.3″)
- Use Case: Home networking, small offices, retail stores, hospitality, educational environments, and modern WiFi deployments.
- Security Features: WPA2/WPA3 Encryption, Guest Network Support, VLAN Integration, Traffic Isolation
- Management Features: Centralized Monitoring, Device Analytics, Wireless Optimization, Firmware Management, Remote Troubleshooting

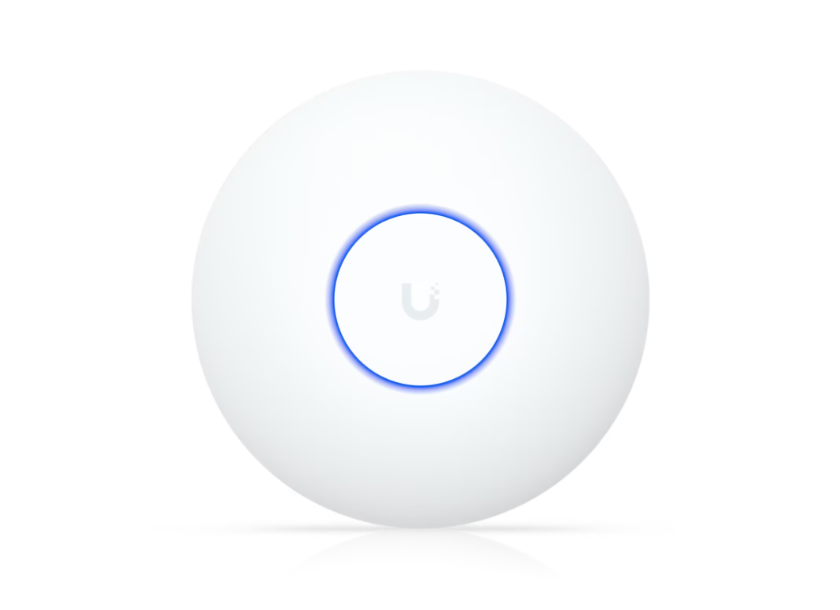

- Design: Compact Low-Profile Ceiling/Wall-Mount Access Point with LED Status Indicator

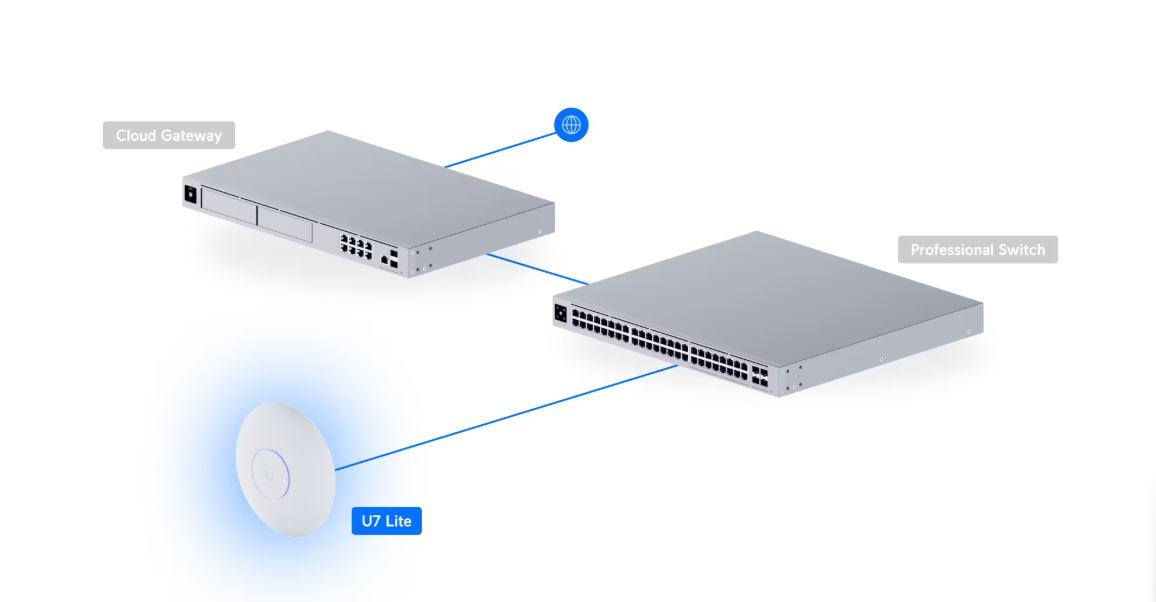

- Compatibility: Fully Integrated with UniFi Network Application and UniFi Ecosystem Devices.
