airMAX 5 GHz, 30 dBi RocketDish (LW RD-5G30-LW)

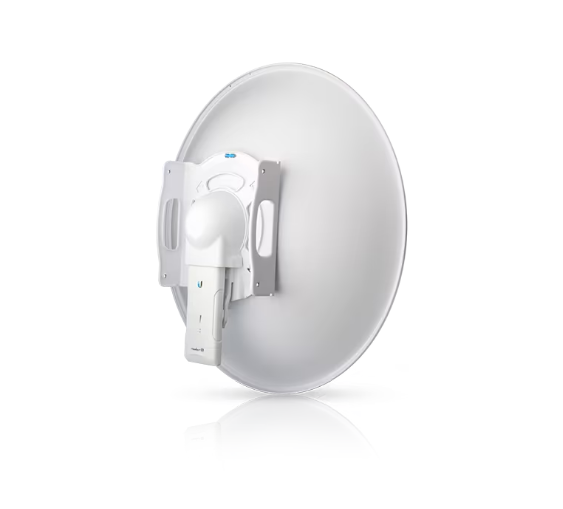

The airMAX 5 GHz, 30 dBi RocketDish LW (RD-5G30-LW) is a high-performance, Point-to-Point (PtP) dish antenna designed for long-range network backhaul. It features a lightweight yet robust construction and a deepened dish reflector that effectively rejects noise interference in co-location deployments . It seamlessly integrates with Rocket base stations using a built-in, tool-free mount .

Specifications:

• Model: airMAX 5 GHz, 30 dBi RocketDish LW (RD-5G30-LW)

• Device Type: Point-to-Point (PtP) Bridge Dish Antenna

• Function: Long-range, high-gain wireless bridging and network backhaul

• Frequency Range: 5.1 – 5.9 GHz

• Gain: 30 dBi

• HPOL Beamwidth: 5.8° (3 dB)

• VPOL Beamwidth: 5.8° (3 dB)

• Front-to-Back Ratio: 30 dB

• Max. VSWR: 1.6:1

• Polarization: Dual-Linear

• Cross-pol Isolation: 35 dB Min.

• Wind Loading: 790 N @ 200 km/h (178 lbf @ 125 mph)

• Wind Survivability: 200 km/h (125 mph)

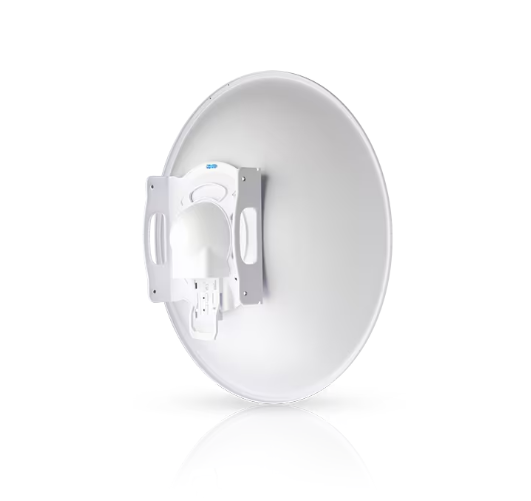

• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included

• Dimensions: 650 x 650 x 386 mm (25.6 x 25.6 x 15.2″)

• Weight: 7.4 kg (16.31 lb)

• Enclosure Material: Not specified in search results; however, the “LW” (Lightweight) variant is engineered with ruggedized, lightweight components for harsh outdoor conditions .

• Use Case: Long-distance PtP bridging, network backhaul, and co-location deployments where noise rejection is critical

• Security Features: NDAA Compliant

• Management: Passive device (antenna); management is handled via the connected Rocket radio running airOS

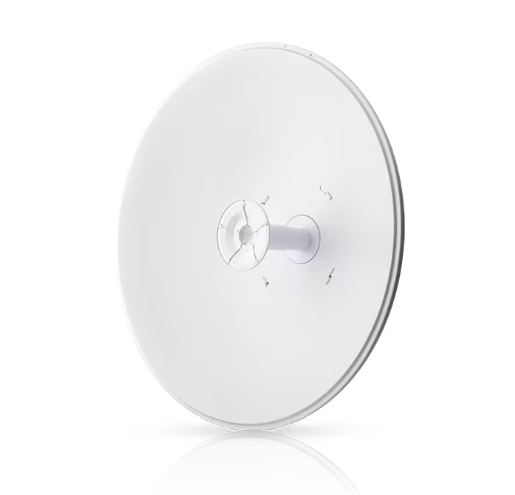

• Design: Deep dish reflector design with a precision elevation adjustment for optimal link alignment ; lightweight construction for easier installation

• Compatibility: Designed for use with Rocket M and Rocket AC base stations ; supports dual-polarity 2×2 MIMO performance
