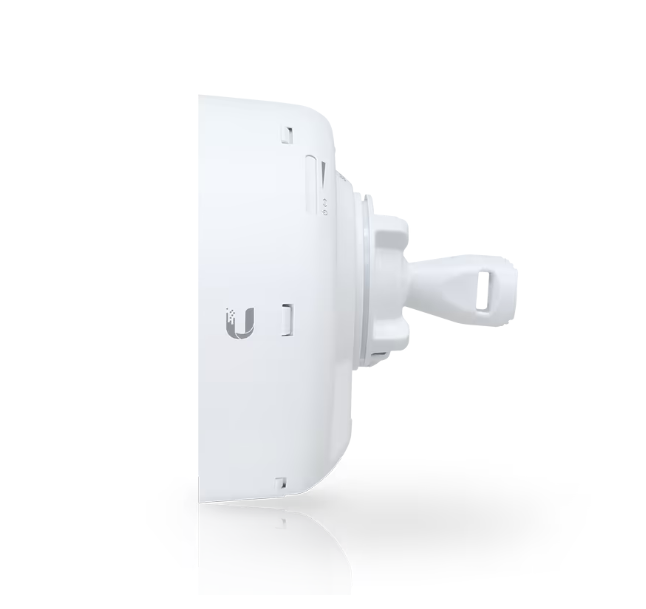

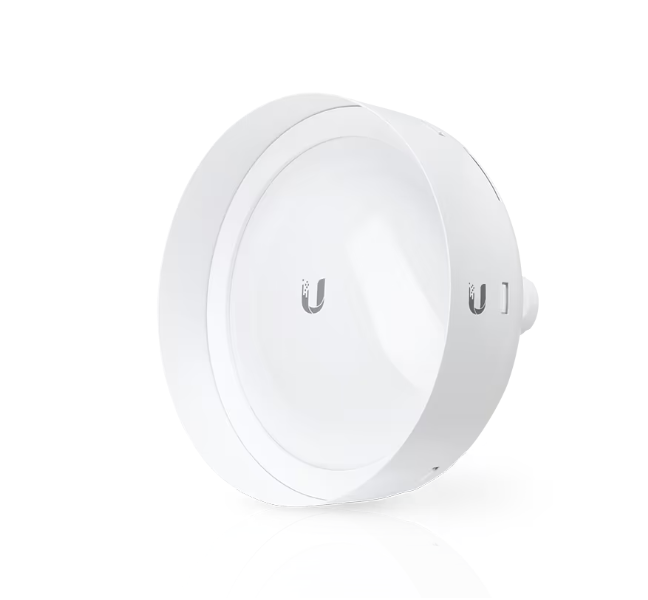

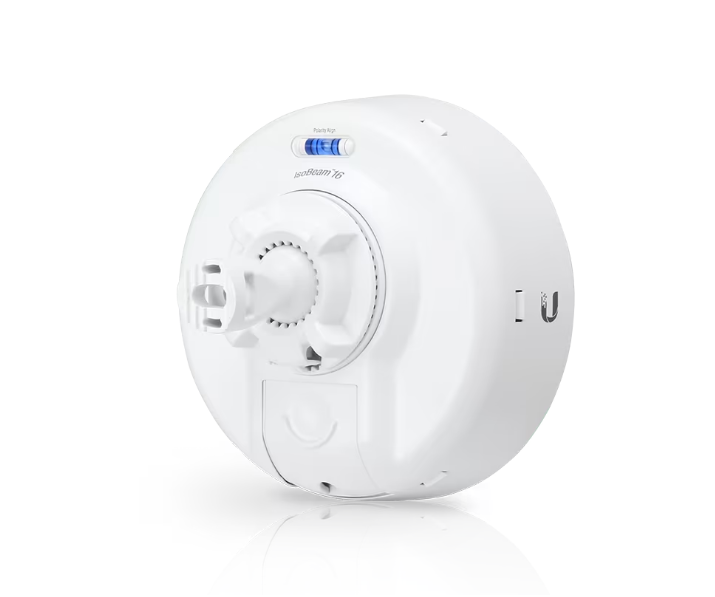

airMAX IsoBeam 16 (ISO-BEAM-16)

The airMAX IsoBeam 16 (ISO-BEAM-16) is an isolation shield designed to reduce interference and improve signal clarity for NanoBeam M5 16 devices . It limits side- and rear-lobe radiation, enhancing the signal-to-noise ratio in congested RF environments and providing protection against harsh weather conditions .

Specifications:

• Model: airMAX IsoBeam 16 (ISO-BEAM-16)

• Device Type: RF Isolation Shield / Radome

• Function: Reduces interference and improves signal isolation for compatible NanoBeam devices

• Compatibility: NBE-M5-16, NBE-5AC-16

• Dimensions: Ø148 x 56.5 mm (Ø5.8 x 2.2″)

• Weight: 150 g (5.3 oz)

• Enclosure Material: Durable, UV-resistant composite

• Color: White

• Installation: Tool-free, plug-and-play mounting

• Use Case: Improving wireless link stability in high-interference or co-located antenna environments

• Security Features: NDAA Compliant

• Design: Lightweight, durable construction providing interference reduction and weather protection
