airMAX Lite AP GPS (LAP-GPS)

The airMAX Lite AP GPS (LAP-GPS) is a powerful and affordable 5 GHz sector access point. GPS synchronization enables co-located units to transmit and receive without interference, allowing for better frequency reuse and increased network stability. It delivers up to 450+ Mbps throughput and a range of 12+ km, making it ideal for long-distance wireless broadband bridging .

Specifications:

• Model: airMAX Lite AP GPS (LAP-GPS)

• Device Type: 5 GHz airMAX AC Access Point

• Function: Long-distance wireless broadband bridging with GPS synchronization for interference-free co-location

• Networking Interface: (1) GbE RJ45 port

• Processor: Atheros MIPS 74Kc, 533 MHz

• Memory: 64 MB DDR2

• Max. Power Consumption: 7.1W

• Max. TX Power: 25 dBm

• Antenna Gain: 17 dBi

• Antenna Beamwidth: 90°

• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)

• Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)

• Supported Voltage Range: 20–27V DC

• GPS: Integrated GPS synchronization

• ESD/EMP Protection: ±24kV Contact/Air

• Wind Survivability: 200 km/h (125 mph)

• Operating Temperature: -40 to 70° C (-40 to 158° F)

• Operating Humidity: 5 to 95% noncondensing

• Mounting: Pole mount with ball joint mount (included)

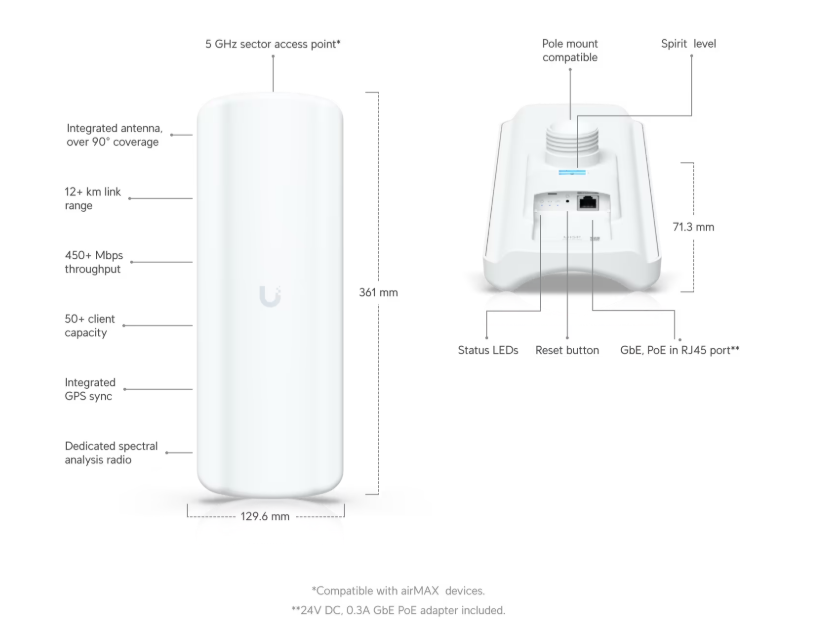

• Dimensions: 361 x 129.6 x 71.3 mm (14.2 x 5.1 x 2.8″)

• Weight: 752 g (1.66 lb)

• Enclosure Material: UV-stabilized plastic

• Use Case: Long-distance PtMP bridging, WISP last-mile connectivity, co-located deployments, enterprise campus networks

• Security Features: ESD/EMP protection, WPA2 AES encryption, NDAA compliant

• Management: AirOS, SNMP, SSH, Ping Watchdog, DHCP, Routing

• Design: Ultra-lightweight outdoor unit with 90° sector coverage, 17 dBi integrated antenna, 2×2 MIMO, dedicated 2.4 GHz management radio for easy setup, tool-free installation with bubble level for alignment

• Compatibility: airMAX ac protocol, operates in 5 GHz frequency range (5150-5875 MHz)
