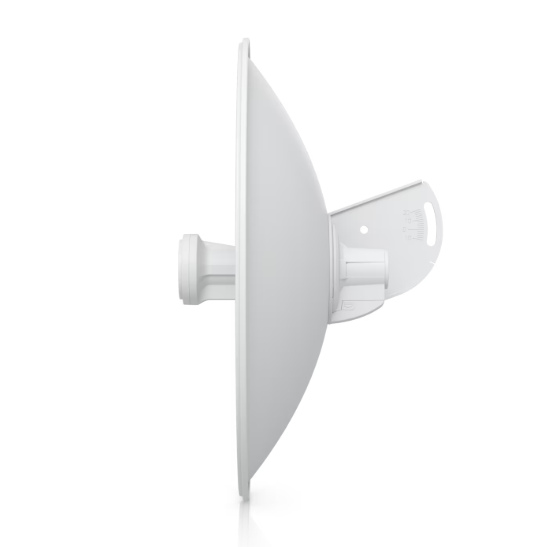

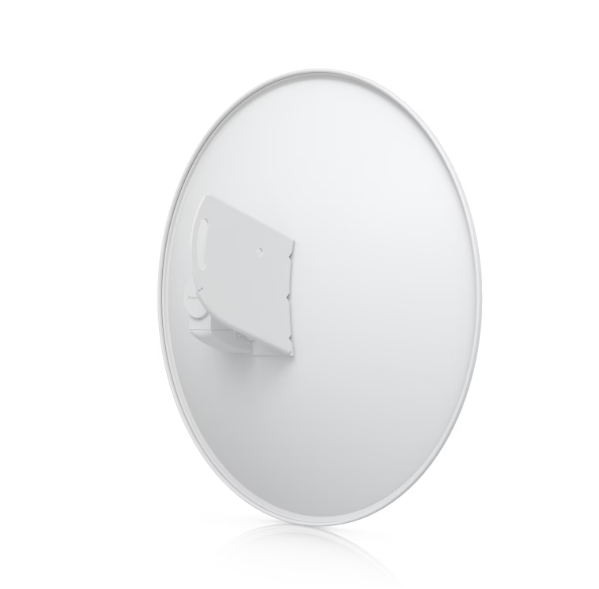

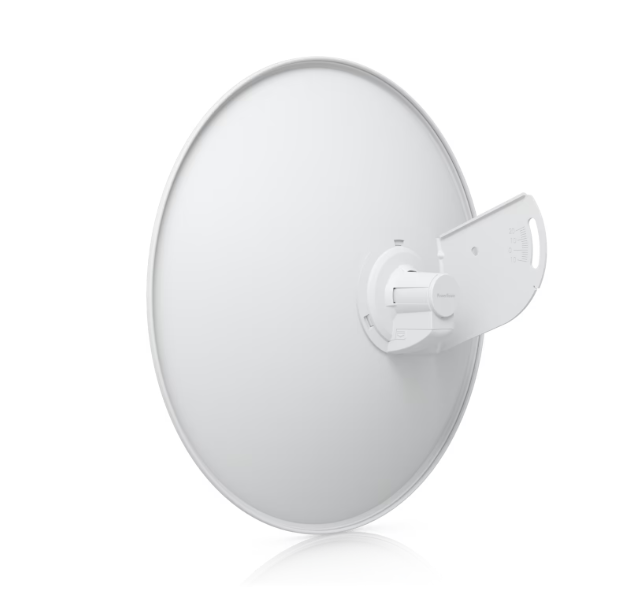

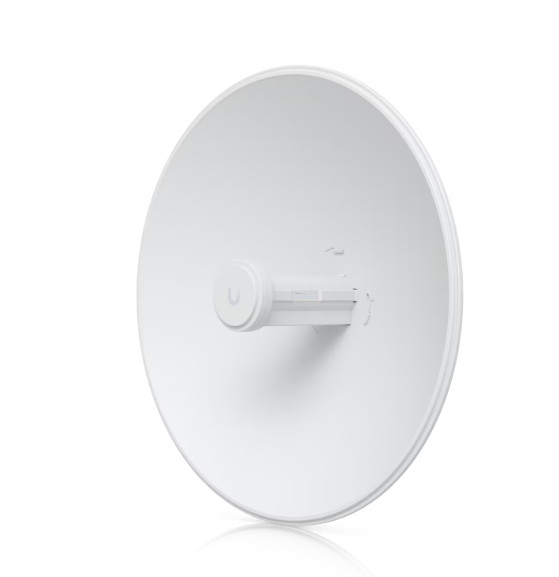

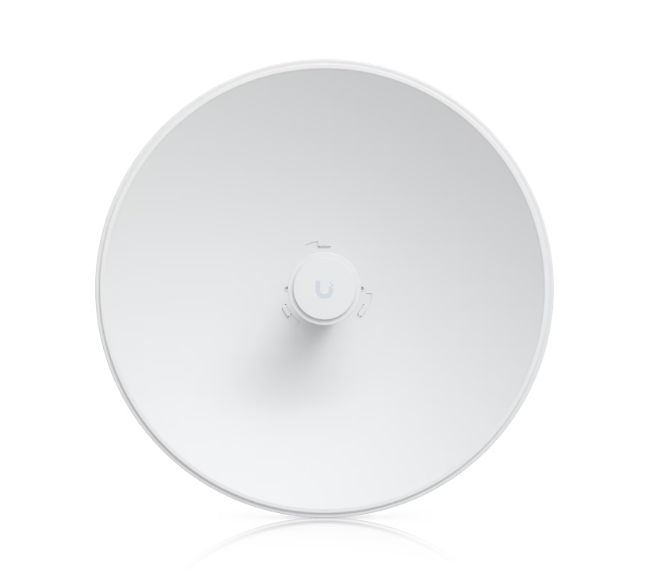

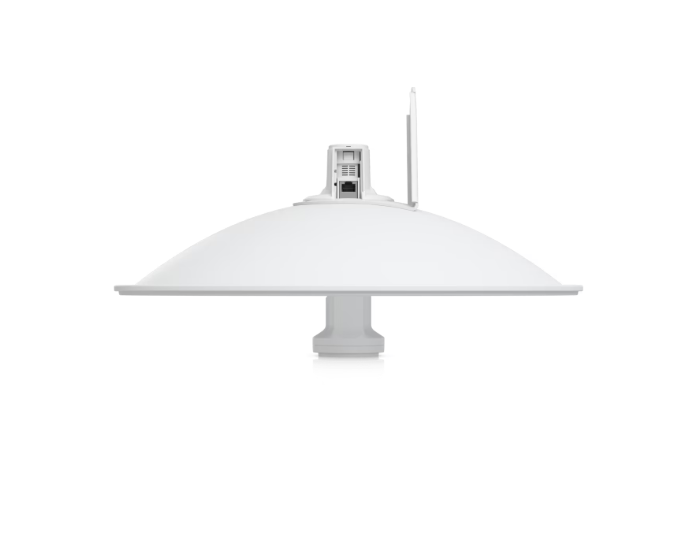

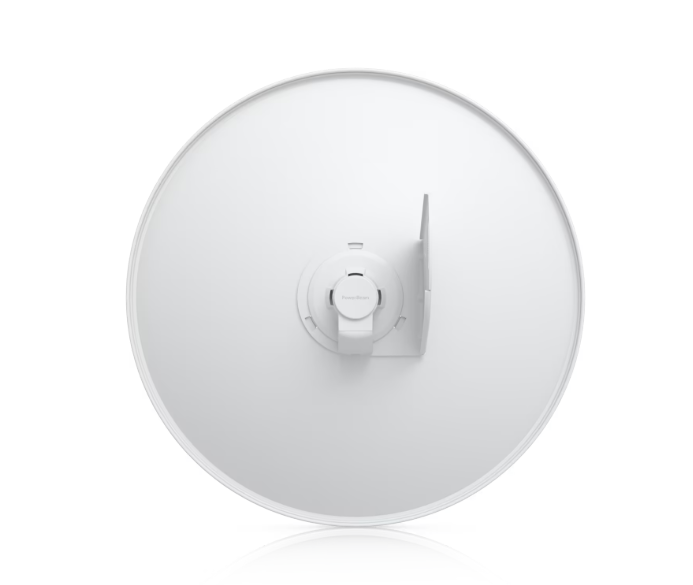

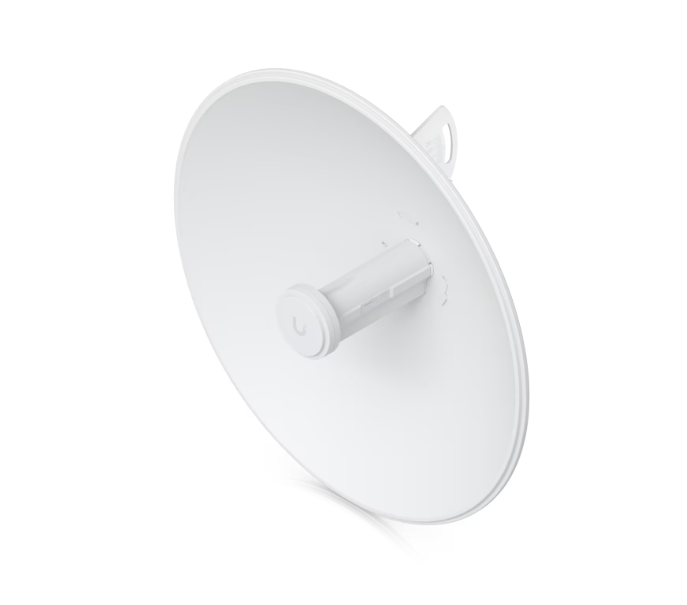

airMAX PowerBeam M5 400 (PBE-M5-400)

The airMAX PowerBeam M5 400 (PBE-M5-400) is a 5 GHz, 25 dBi bridge featuring a 400 mm dish reflector design. It delivers over 150 Mbps of throughput and supports long-distance links of 25+ km. Its InnerFeed technology integrates the radio into the antenna feedhorn to eliminate cable loss and improve performance.

Specifications:

• Model: airMAX PowerBeam M5 400 (PBE-M5-400)

• Device Type: 5 GHz airMAX Bridge

• Function: Long-distance, Point-to-Point (PtP) wireless bridging

• Networking Interface: (1) GbE RJ45 port

• Processor: Atheros MIPS 74Kc, 560 MHz

• Memory: 64 MB DDR2, 8 MB Flash

• Max. Power Consumption: 8W

• Power Method: Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return)

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

• Supported Voltage Range: 20–27V DC

• Gain: 25 dBi

• Frequency Range (Worldwide): 5170 – 5875 MHz

• Frequency Range (US/CA): 5725 – 5850 MHz

• Channel Sizes: 5/8/10/20/30/40 MHz

• Polarization: Dual Linear

• Max. TX Power: 26 dBm

• ESD/EMP Protection: Air/Contact: ± 24 kV

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 342.5 N @ 200 km/h

• Mounting: Pole Mount Kit (Included)

• Dimensions: 420 x 420 x 275 mm (16.5 x 16.5 x 10.8″)

• Weight: 1.8 kg (4 lb)

• Enclosure Material: UV-Stabilized Plastic

• Operating Temperature: -40 to 70° C (-40 to 158° F)

• Operating Humidity: 5 to 95% Noncondensing

• Use Case: Long-distance Point-to-Point (PtP) bridging, connecting remote sites, and ISP backhaul

• Security Features: ESD/EMP Protection, NDAA Compliant

• Management: airOS (airMAX configuration interface)

• Design: 400 mm dish reflector with InnerFeed integrated radio technology for optimal performance

• Compatibility: Operates in the 5 GHz frequency band; requires a second unit for a PtP bridge
