airMAX PrismStation (5AC PS-5AC)

The airMAX PrismStation 5AC (PS-5AC) is a shielded 5 GHz airMAX AC radio base with airPrism™ active RF filtering, designed to provide superior noise immunity in high-interference environments like co-located tower sites . It features a dedicated Wi-Fi management radio for simplified setup, supports interchangeable horn antennas for flexible sectorization, and utilizes GPS sync for coordinated deployments .

Specifications:

• Model: airMAX PrismStation 5AC (PS-5AC)

• Device Type: 5 GHz airMAX AC Radio Base

• Function: High-performance, interference-resistant wireless base station for PtMP and PtP links

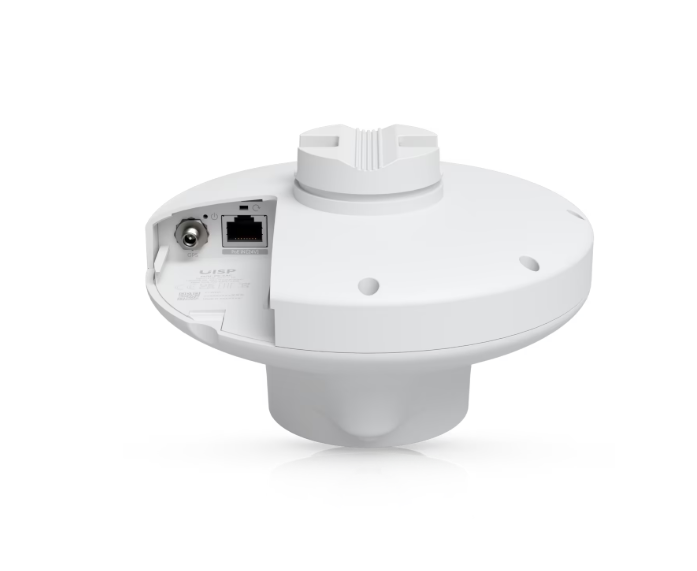

• Networking Interface: (1) GbE RJ45 port

• Processor: MIPS 74Kc

• Memory: 128 MB DDR2, 16 MB NOR Flash

• Max. Power Consumption: 10W

• Power Method: 24V Passive PoE 2-Pair (4, 5+; 7, 8 return)

• Power Supply: 24V, 1A Gigabit PoE Adapter (Included)

• Max. TX Power: 28 dBm

• Throughput: 500+ Mbps real TCP/IP

• Frequency Range (Worldwide): 5150 – 5875 MHz

• Management Radio (Worldwide): 2412 – 2472 MHz

• RF Connector: (1) GPS

• Polarization: Dual-linear

• ESD/EMP Protection: Air/Contact: ± 24 kV

• Wind Loading: 31 N at 200 km/h (7 lbf at 125 mph)

• Wind Survivability: 200 km/h (125 mph)

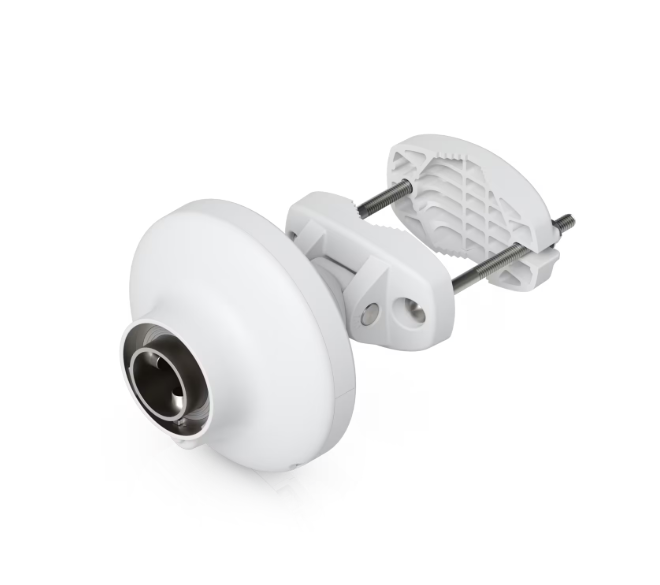

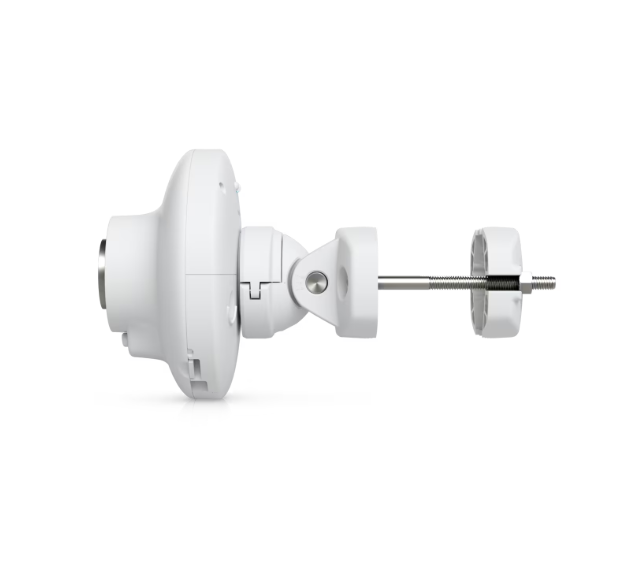

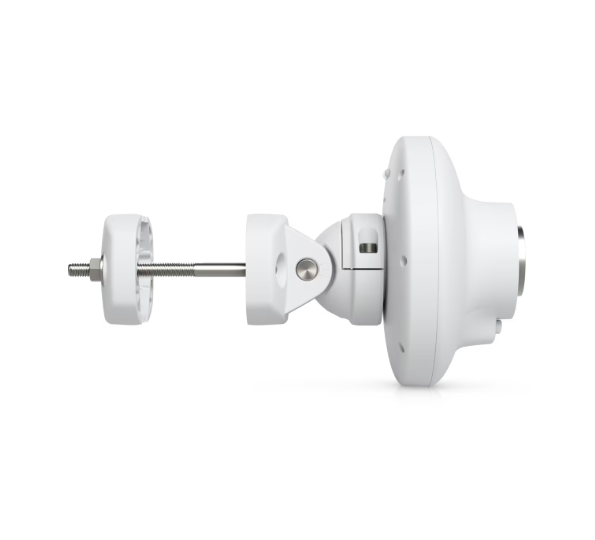

• Mounting: Pole mount kit (included)

• Dimensions: 155 x 155 x 104 mm (5.2 x 5.2 x 4.1″)

• Weight: 0.8 kg (1.7 lb)

• Enclosure Material: Metal

• Operating Temperature: -40 to 70° C (-40 to 158° F)

• Operating Humidity: 5 to 95% Noncondensing

• Use Case: Interference-limited PtMP/PtP links, co-located ISP tower deployments, high-density environments

• Security Features: WPA2 AES encryption, ESD/EMP protection, NDAA compliant

• Management: airOS 8, dedicated Wi-Fi management radio

• Design: Shielded base with interchangeable horn antennas (30°, 45°, 60°, 90°) and GPS sync
