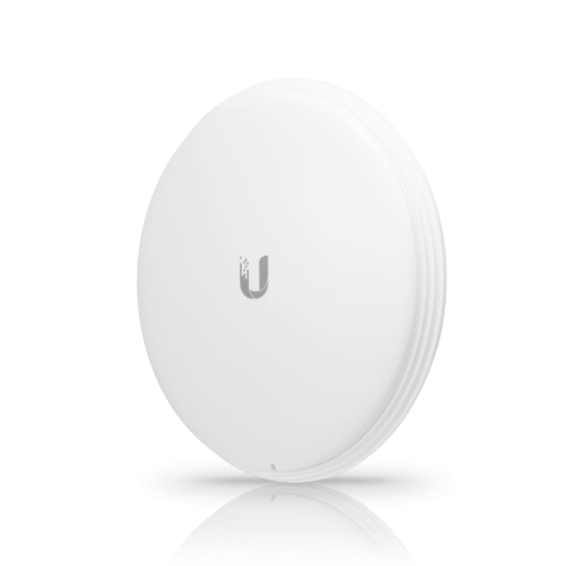

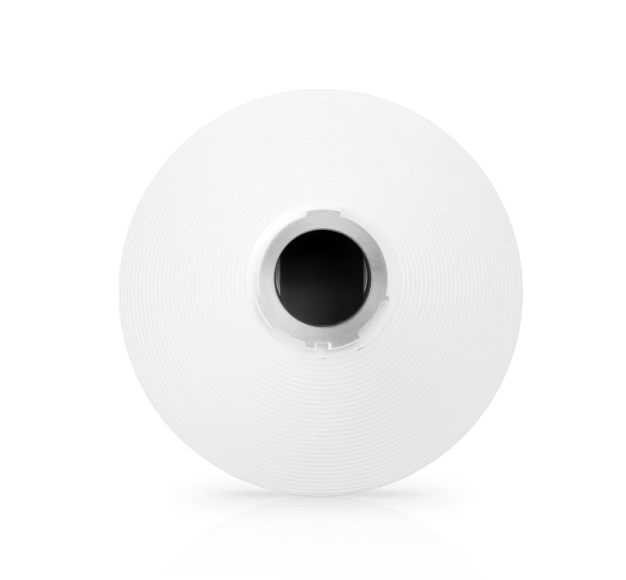

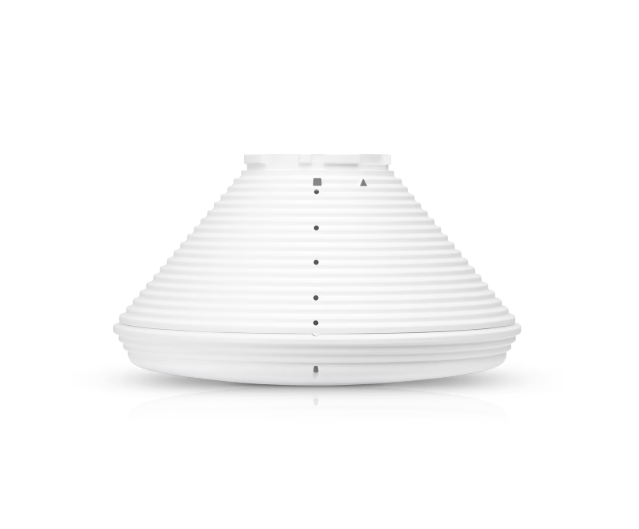

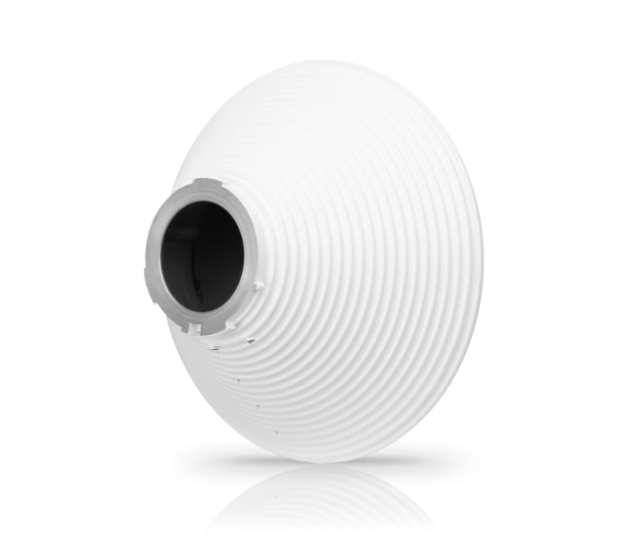

airMAX PrismStation Horn (Horn-5-30)

The airMAX PrismStation Horn (Horn-5-30) is a 5 GHz horn antenna with a precise 30° beamwidth, designed for use with PrismStation and IsoStation radios . It provides precise beam shaping for specific deployment environments .

Specifications:

• Model: airMAX PrismStation Horn (Horn-5-30)

• Device Type: 5 GHz Horn Antenna

• Function: Provides 30° beam shaping and enhanced co-location performance for PrismStation and IsoStation radios

• Compatibility: PrismStation, IsoStation, airFiber LTU radios

• Frequency Range: 5.15 – 5.85 GHz

• Gain: 19 dBi

• HPOL Beamwidth: 30°

• VPOL Beamwidth: 30°

• Elevation Beamwidth: 30°

• Polarization: Dual-Linear

• Cross-Pol Isolation: 17 dB

• Maximum VSWR: 1.7:1

• Dimensions: Ø 221.4 x 184.2 mm (8.71 x 7.3″)

• Weight: 1.1 kg (2.4 lb)

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 56 N @ 200 km/h (12.6 lbf @ 125 mph)

• Use Case: Co-location configurations and cluster sector installations requiring precise beam shaping

• Design: Modular design with single-button release for easy antenna changes
