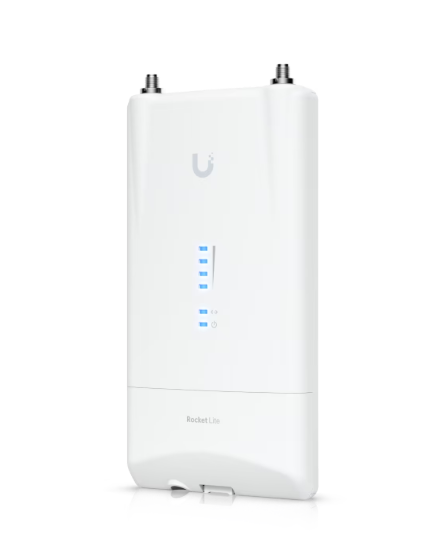

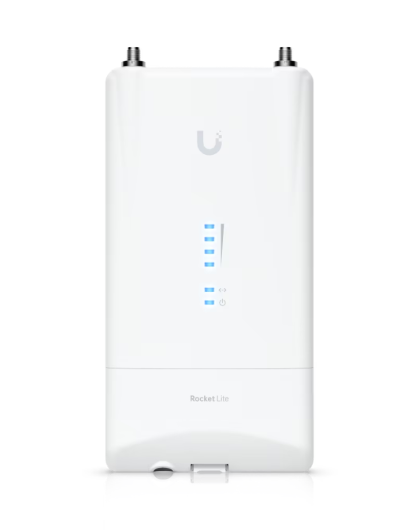

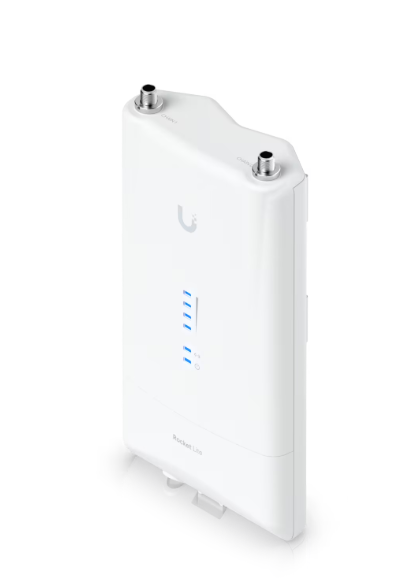

airMAX Rocket AC Lite (R5AC-Lite)

The airMAX Rocket AC Lite (R5AC-Lite) is a compact 5 GHz airMAX ac base station that delivers up to 500+ Mbps throughput . Featuring a UV‑stabilized plastic enclosure with integrated mounting, it can be paired with a variety of airMAX ac antennas for scalable PtP and PtMP deployments .

Specifications:

• Model: airMAX Rocket AC Lite (R5AC-Lite)

• Device Type: 5 GHz airMAX AC BaseStation

• Function: High‑throughput, long‑distance wireless bridging for PtP and PtMP links

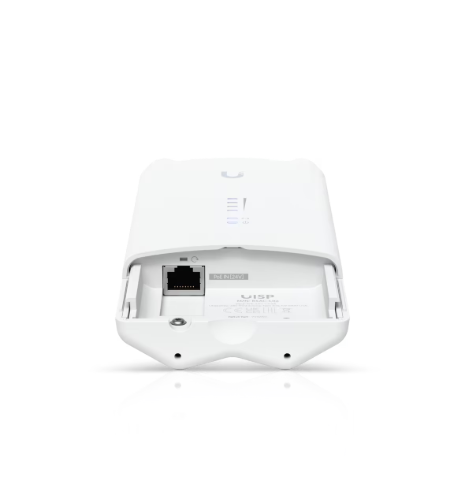

• Networking Interface: 1 GbE RJ45 port

• Processor: Atheros MIPS 74Kc, 720 MHz

• Memory: 128 MB DDR2 SDRAM, 16 MB NOR Flash

• Max. Power Consumption: 8.5W

• Power Method: 24V passive PoE 2‑pair (4, 5+; 7, 8 return)

• Power Supply: 24V, 0.5A Gigabit PoE adapter (included)

• Supported Voltage Range: 20–27V DC

• Max. TX Power: 27 dBm

• Frequency Range (Worldwide): 5150 – 5875 MHz

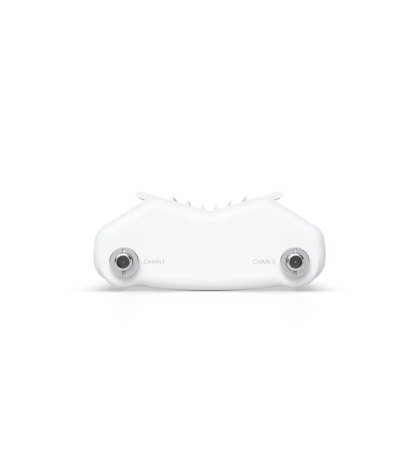

• RF Connectors: 2x RP‑SMA (waterproof)

• LED Indicators: Power, LAN, 4x Signal Strength

• ESD/EMP Protection: ±24kV air / contact

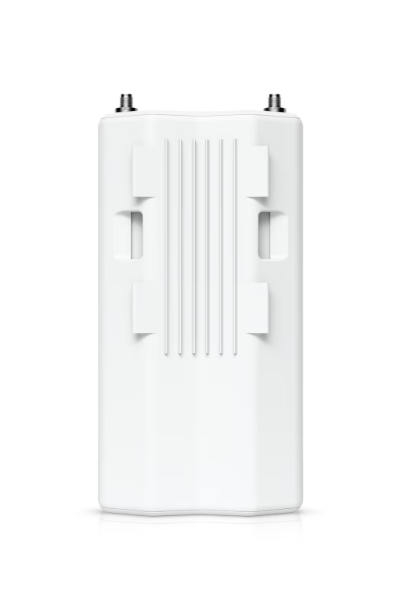

• Mounting: Pole‑mount (kit included)

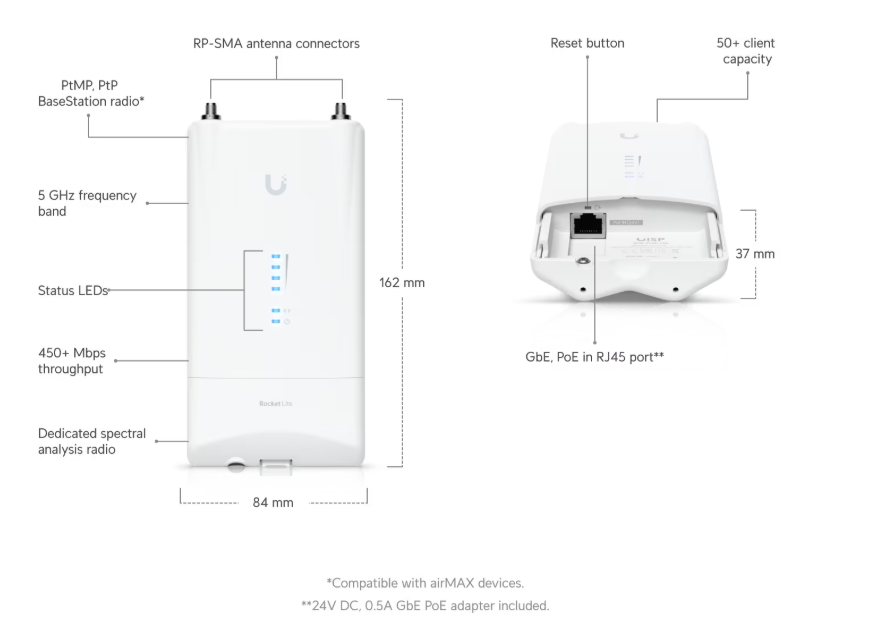

• Dimensions: 162 x 84 x 37 mm (6.4 x 3.3 x 1.5″)

• Weight: 250 g (8.8 oz)

• Enclosure Material: UV‑stabilized polycarbonate

• Operating Temperature: -40 to 80° C (-40 to 176° F)

• Operating Humidity: 5 to 95% noncondensing

• Use Case: PtP and PtMP backhaul, WISP last‑mile connectivity, and high‑capacity outdoor wireless links

• Security Features: WPA2‑AES encryption, NDAA compliant

• Management: AirOS 8, SNMP, SSH, Ping Watchdog

• Design: Compact, rugged outdoor form factor with versatile mounting and multiple channel size options (PtP: up to 80 MHz; PtMP: up to 40 MHz)
