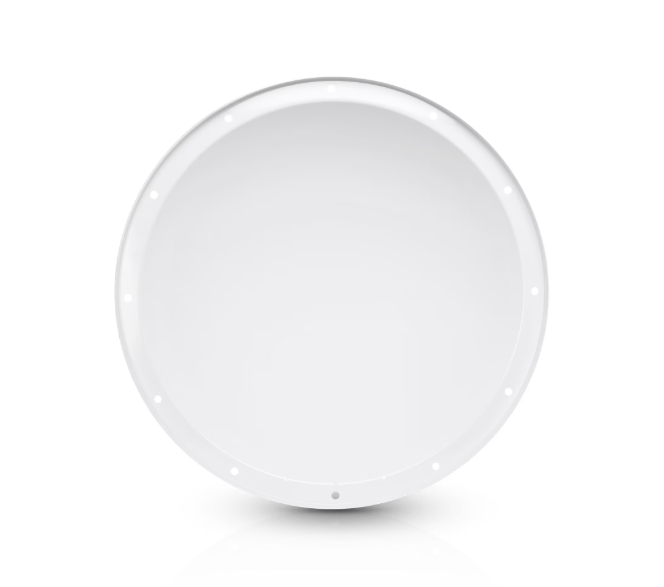

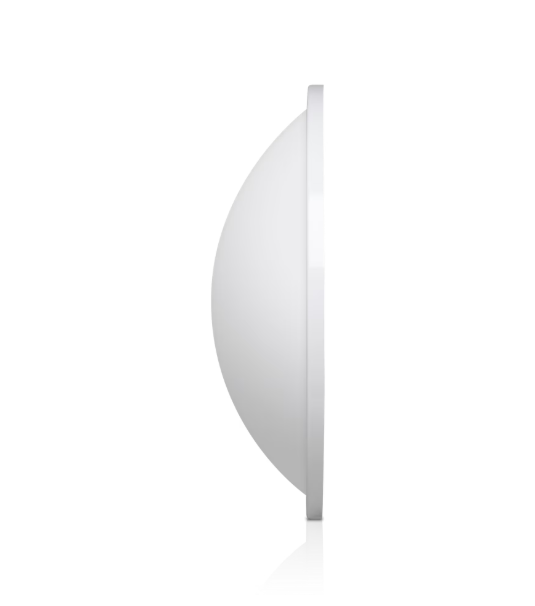

airMAX RocketDish 2ft Radome (RAD-RD2)

The airMAX RocketDish 2ft Radome (RAD-RD2) is a protective cover designed for 2ft RocketDish antennas, providing enhanced RF shielding and improved weather resistance. By protecting the antenna surface from harsh environmental elements like rain, snow, ice, and UV radiation while maintaining optimal signal quality, this radome reduces wind load and extends the lifespan of the antenna . It effectively conceals the antenna feed equipment for a cleaner installation .

Specifications:

• Model: airMAX RocketDish 2ft Radome (RAD-RD2)

• Device Type: Antenna Radome / Protective Cover

• Function: Protects RocketDish antennas from environmental elements while providing enhanced RF shielding

• Compatibility: RD-2G24, RD-3G26, RD-5G30

• Dimensions: 648 x 173 mm (25.5 x 6.8″)

• Weight: 1.3 kg (2.8 lb)

• Enclosure Material: High-quality, UV-resistant materials with low dielectric loss

• Color: White

• Mounting: Screw-based attachment

• Installation Environment: Outdoor

• Use Case: Protecting RocketDish antennas in outdoor tower deployments, PtP and PtMP links, and installations exposed to harsh weather

• Security Features: NDAA Compliant

• Design: Durable, lightweight construction designed to minimize impact on the antenna’s radiation pattern
