Door Lock Relay Cable (UACC-Cable-DoorLockRelay-2P)

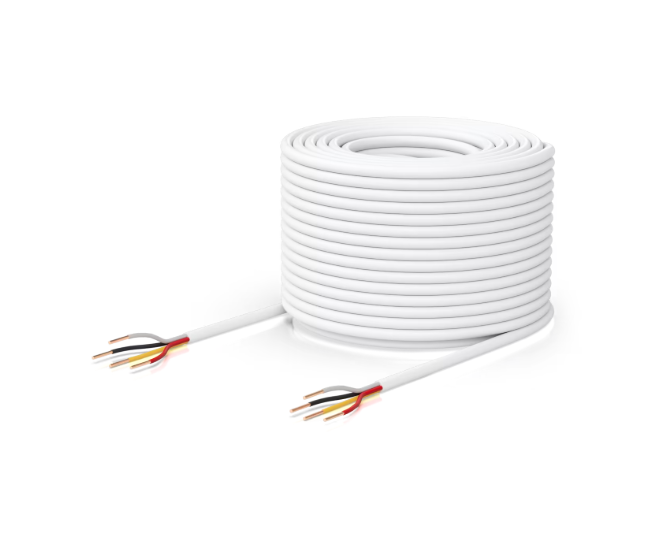

The Door Lock Relay Cable (UACC-Cable-DoorLockRelay-2P) is a 500-foot (152.4 m) spool of two-pair, low-voltage cable designed to connect both an electric/magnetic lock and a door position sensor to a UniFi Access Hub. This plenum-rated cable provides a complete wiring solution for professional access control installations .

Specifications:

• Model: Door Lock Relay Cable (UACC-Cable-DoorLockRelay-2P)

• Device Type: Low-Voltage Relay Cable

• Function: Connects an electric/magnetic lock and door position sensor to a UniFi Access Hub

• Cable Length: 152.4 m (500 ft)

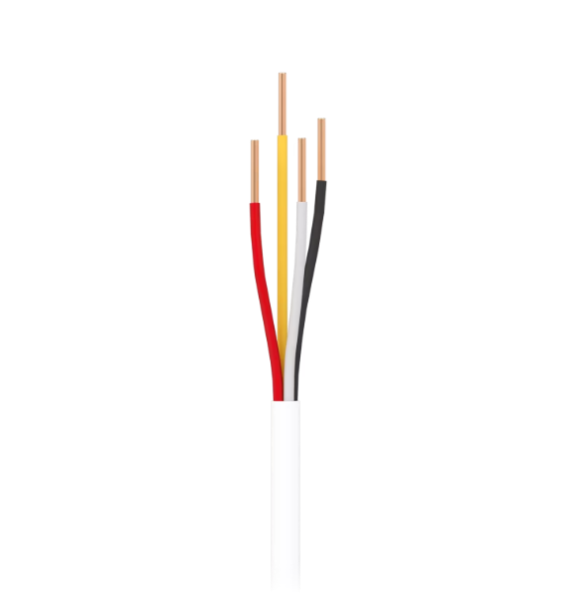

• Conductors: (4) solid bare copper conductors: (2) 18 AWG for lock, (2) 22 AWG for door position sensor

• Insulation Colors: Black/red (18 AWG), amber/white (22 AWG)

• Jacket Material: Thermoplastic elastomer (TPE)

• Jacket Color: White

• Jacket Outer Diameter: 4.5 mm (0.18″)

• Insulation Material: Semi-rigid polyvinyl chloride (SR-PVC)

• Supported Voltage: 36V DC

• Current Rating: 18 AWG: 2A for 500 ft; 22 AWG: 1A for 500 ft

• Flame Rating: VW-1, plenum-rated

• Min. Bend Radius: 56 mm (2.2″)

• Max. Pull Tension: 24.2 kgf

• Conductor DCR: 18 AWG: 23.2 ohm/km; 22 AWG: 59.4 ohm/km

• Weight: 5.6 kg (12.3 lb)

• Use Case: Connecting electric/magnetic locks and door position sensors to UniFi Access Hubs for professional installations

• Operating Temperature: -45 to 65° C (-49 to 149° F)

• Storage Temperature: -45 to 65° C (-49 to 149° F)

• Design: 500 ft spool with durable TPE jacket and solid bare copper conductors for reliable transmission

• Compatibility: UniFi Access Hubs and compatible electric/magnetic locks and door position sensors
