Description

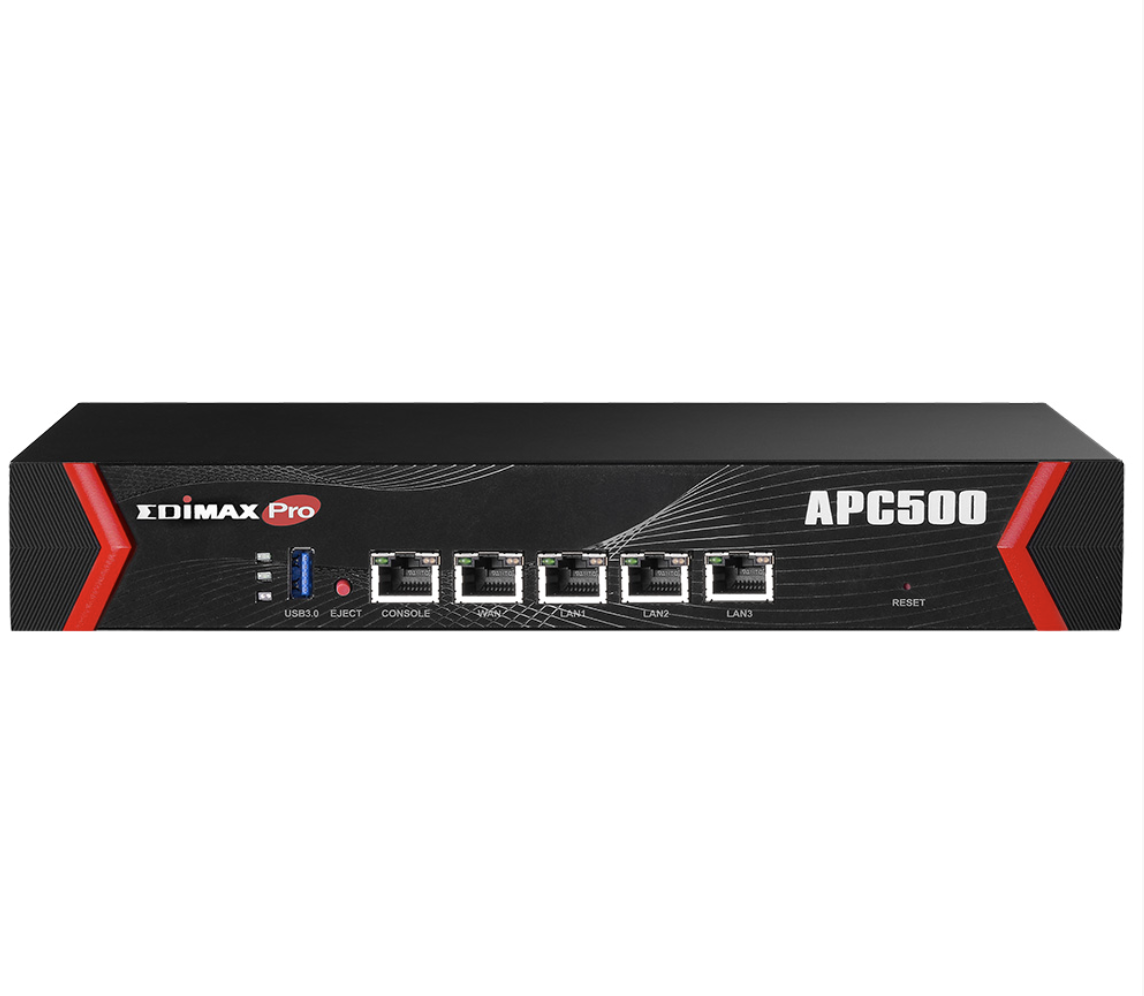

Edimax APC500 Wireless AP Controller
The Edimax APC500 is a dedicated wireless access point controller designed for SMB, SME, education, hospitality, and enterprise WiFi environments. It provides centralised management for multiple Edimax Pro access points, supporting AP monitoring, batch configuration, captive portal, guest access, local RADIUS, WLAN groups, firmware upgrades, RF optimisation, and network-wide administration through a web-based management interface.
Specifications:
- Model: Edimax APC500
- Device Type: Wireless AP Controller
- Ethernet Ports: 4 × Gigabit RJ45 ports
- CPU: Not specified
- RAM: Not specified
- Storage: 8 GB flash memory
- Operating System: Edimax Pro Network Management Suite / APC500 controller firmware
- Routing: Central AP management, L2/L3 AP management, captive portal, guest policy, local RADIUS, WLAN groups, RF optimisation, QoS by SSID, and management for up to 32 Edimax Pro access points
- Management: Web-based management interface with dashboard, map view, traffic statistics, wireless client list, batch setup, group firmware upgrade, and remote AP administration
- Power: 12V DC, 1.5A power adapter; typical power consumption 8W
- Dimensions: 178 × 265 × 44 mm
- Use Case: Centralised WiFi access point management for SMBs, SMEs, schools, hotels, offices, guest WiFi networks, multi-AP deployments, captive portal control, and Edimax Pro wireless infrastructure.
