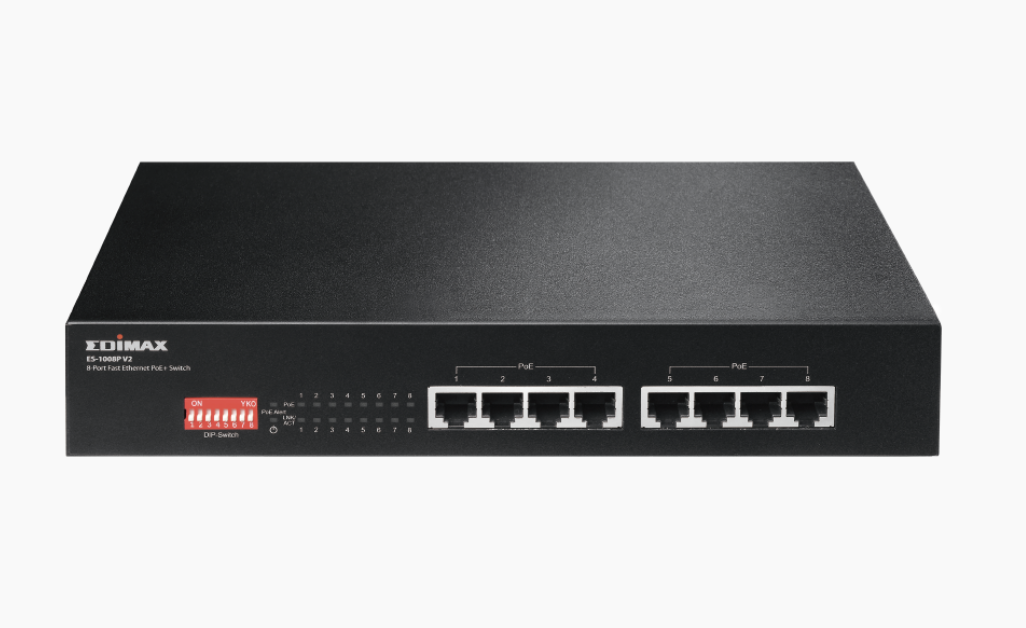

Edimax ES-1008P V2 Long Range 8-Port Fast Ethernet PoE+ Switch
The Edimax ES-1008P V2 is a long-range 8-port Fast Ethernet PoE+ unmanaged switch designed for home, small office, SMB, and surveillance network deployments. It features 8 × 10/100Mbps PoE+ ports, up to 30W per PoE port, a 130W PoE power budget, DIP switch control for Extend, VLAN, and QoS functions, and long-range PoE transmission up to 200 m at 10 Mbps.
Specifications:
- Model: Edimax ES-1008P V2
- Device Type: Long Range 8-Port Fast Ethernet PoE+ Unmanaged Switch
- Ethernet Ports: 8 × RJ45 10/100Base-T PoE+ ports
- CPU: Not applicable
- RAM: Not applicable
- Storage: Not applicable
- Operating System: Not applicable
- Routing: Unmanaged Fast Ethernet switching with IEEE 802.3af/at PoE+, DIP switch Extend mode, port-based VLAN, loop protection, 802.1p QoS, and long-range PoE up to 200 m at 10 Mbps
- Management: Plug-and-play unmanaged switch with hardware DIP switch control for PoE Extend, VLAN, and QoS
- Power: 100–240V AC input; 160W power supply; 5W power consumption; up to 30W PoE output per port; 130W total PoE power budget
- Dimensions: 265.1 × 183.7 × 44 mm
- Use Case: Home and SMB PoE networks, IP camera systems, wireless access points, IP phones, CCTV deployments, long-distance PoE runs, and compact desktop or rack network installations.
