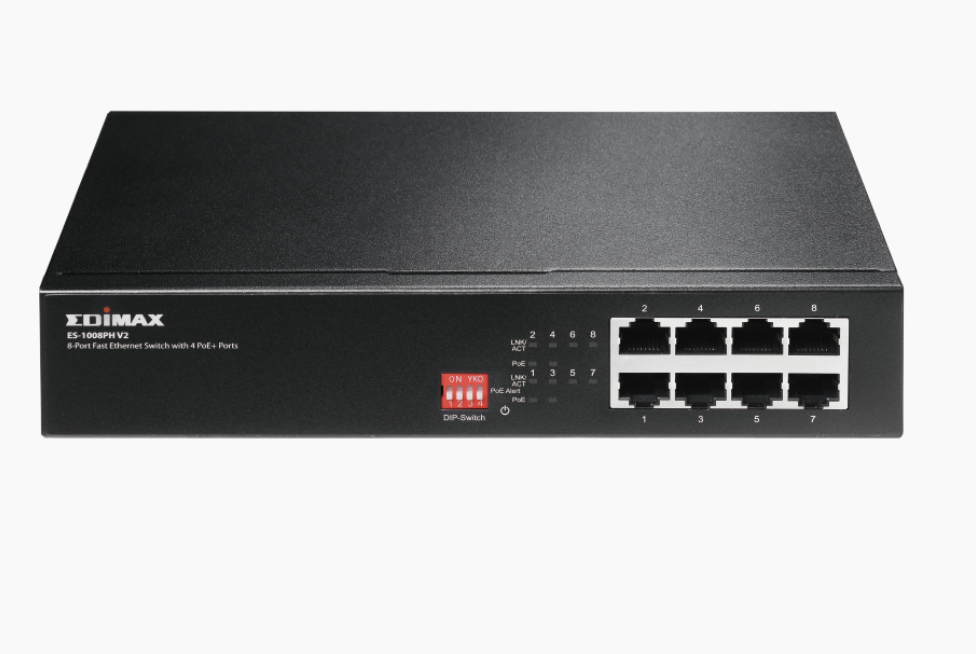

Edimax ES-1008PH V2 Long Range 8-Port Fast Ethernet Switch with 4 PoE+ Ports
The Edimax ES-1008PH V2 is an 8-port Fast Ethernet unmanaged switch designed for home, small office, SMB, and surveillance network deployments. It features 4 PoE+ ports, DIP switch controls for PoE on/off, Extend, VLAN, and QoS functions, and supports long-range PoE delivery up to 200 m, making it suitable for IP cameras, wireless access points, IP phones, and other PoE-powered devices.
Specifications:
- Model: Edimax ES-1008PH V2
- Device Type: Long Range 8-Port Fast Ethernet Switch with 4 PoE+ Ports
- Ethernet Ports: 8 × 10/100Mbps Fast Ethernet RJ45 ports, including 4 × PoE+ ports
- CPU: Not applicable
- RAM: Not applicable
- Storage: Not applicable
- Operating System: Not applicable
- Routing: Unmanaged Fast Ethernet switching with IEEE 802.3af/at PoE+, DIP switch PoE control, Extend mode, port-based VLAN, QoS, and long-range PoE up to 200 m
- Management: Plug-and-play unmanaged switch with hardware DIP switch controls
- Power: AC power input; up to 30W PoE output per PoE+ port; total PoE budget 70W
- Dimensions: 215.5 × 133 × 42 mm
- Use Case: Home and SMB PoE networks, IP camera systems, wireless access points, IP phones, CCTV deployments, long-distance PoE runs, and compact desktop network installations.
