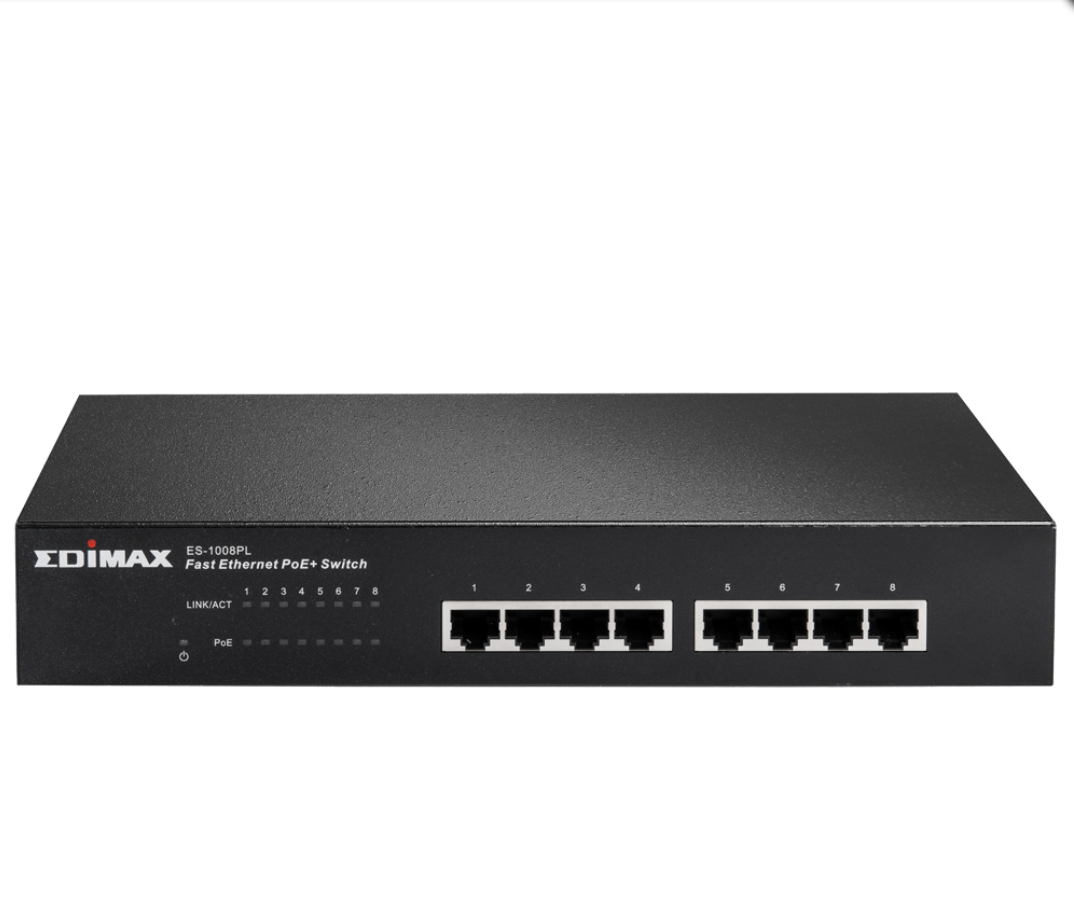

Edimax ES-1008PL 8-Port Fast Ethernet PoE+ Switch
The Edimax ES-1008PL is an 8-port Fast Ethernet PoE+ unmanaged switch designed for home, small office, and medium-sized network environments. It features 8 RJ45 Fast Ethernet ports, all supporting IEEE 802.3af/at PoE, with up to 30W output per port and a total PoE budget of up to 75W, making it suitable for PoE cameras, wireless access points, IP phones, and other Ethernet devices.
Specifications:
- Model: Edimax ES-1008PL
- Device Type: 8-Port Fast Ethernet PoE+ Unmanaged Switch
- Ethernet Ports: 8 × RJ45 Fast Ethernet ports with 8 × PoE ports
- CPU: Not applicable
- RAM: Not applicable
- Storage: Not applicable
- Operating System: Not applicable
- Routing: Unmanaged Fast Ethernet switching with IEEE 802.3af/at PoE, IEEE 802.3x flow control, IEEE 802.3az Energy Efficient Ethernet, store-and-forward transmission, and 1K MAC address table
- Management: Plug-and-play unmanaged switch
- Power: 100–240V AC, 50/60Hz; up to 30W PoE output per port; 80W total power budget; up to 75W PoE power budget
- Dimensions: 265 × 184 × 44 mm
- Use Case: Home and SMB networks, PoE IP camera systems, wireless access point deployments, IP phones, computers, printers, NAS devices, and compact rack or desktop PoE switching installations.
