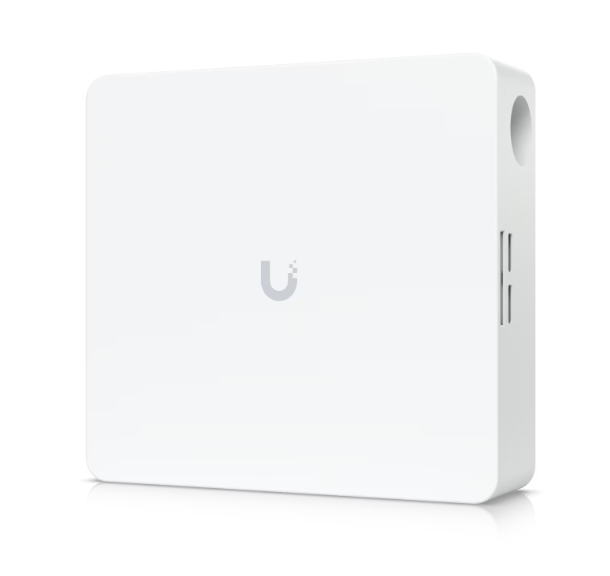

Enterprise Access Hub (EAH-8)

The UniFi Enterprise Access Hub (EAH-8) is an enterprise-grade access control hub that provides entry and exit control for up to eight doors, with integrated PoE, battery backup support, and robust security features for comprehensive facility access management .

Specifications:

• Model: UniFi Enterprise Access Hub (EAH-8)

• Device Type: Enterprise Access Controller

• Function: Centralized entry and exit control for up to eight doors with PoE and battery backup support

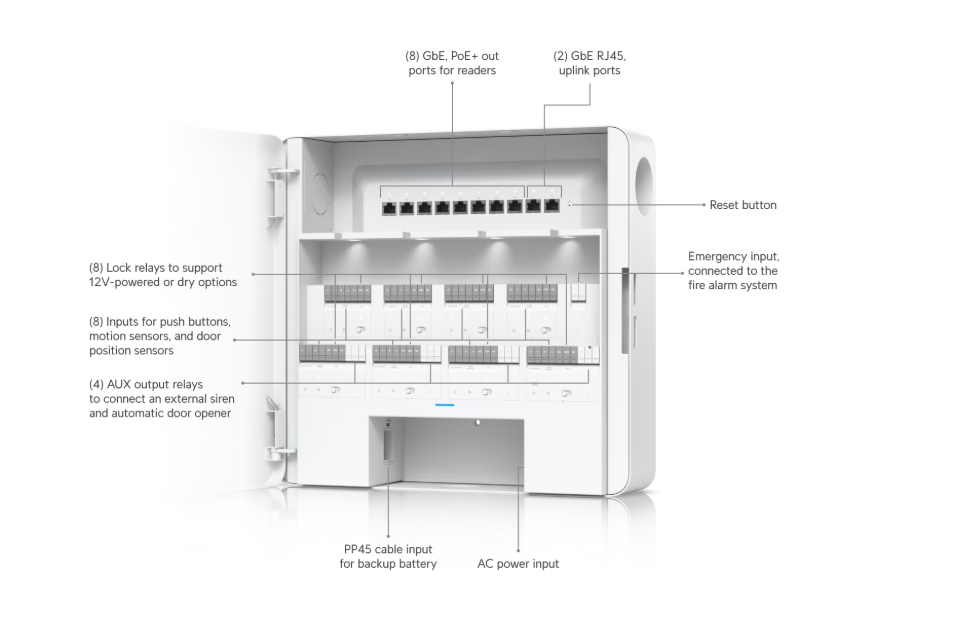

• Lock Terminals: (8) Lock terminals (12V or Dry)

• Digital Inputs: (8) Inputs for request-to-exit devices, (8) inputs for door position sensors, (1) Emergency input

• AUX Terminals: (4) AUX terminals for chimes, sirens, or door openers

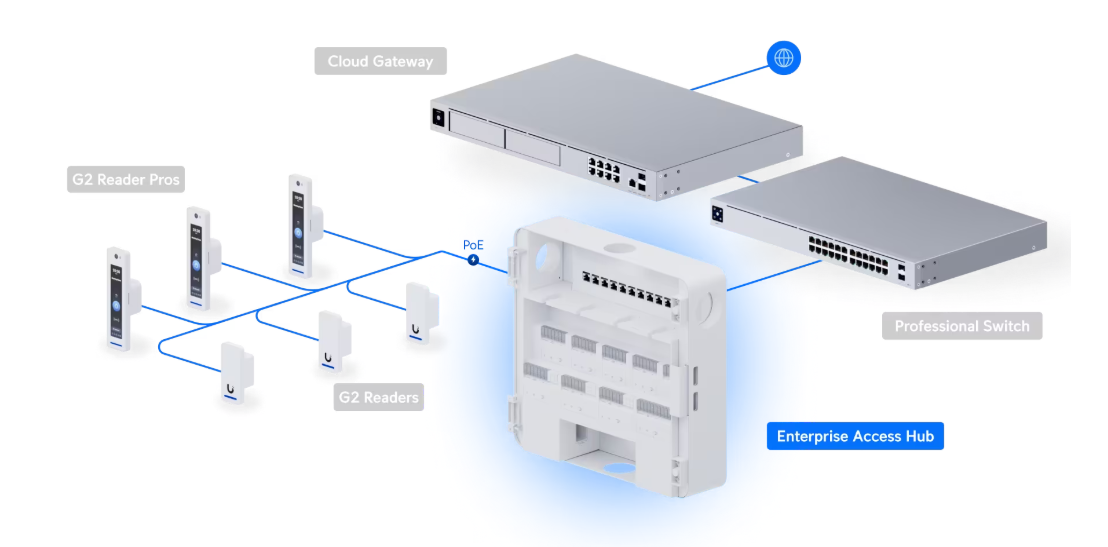

• PoE Ports: (8) PoE ports for Access Readers, 15.4W max per port, 60W total available PoE

• Networking: (10) 10/100/1000 Base-T Ethernet ports

• Power Method: Universal input, 100-240V AC, Max. 4.4A, 50/60Hz; 32-48V DC Lead Acid Battery, Max. 7.5A @32V

• Max Power Consumption: 240W

• PoE Interface: (8) PoE (Pins 1, 2+; 3, 6-)

• PoE Voltage Range: 44-57V DC

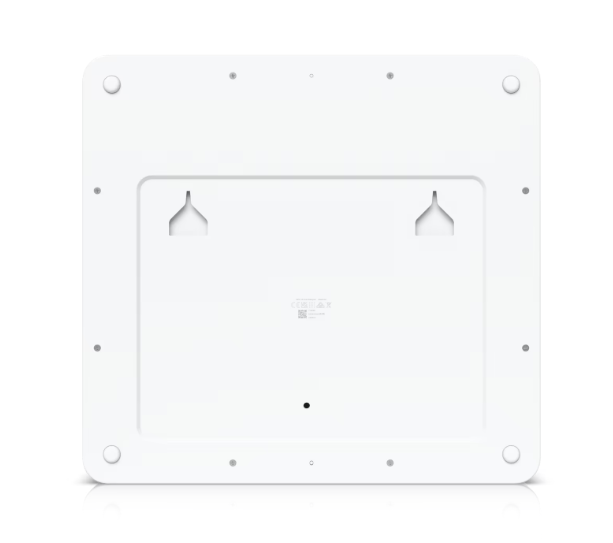

• Mounting: Wall mount with included SGCC mounting plate

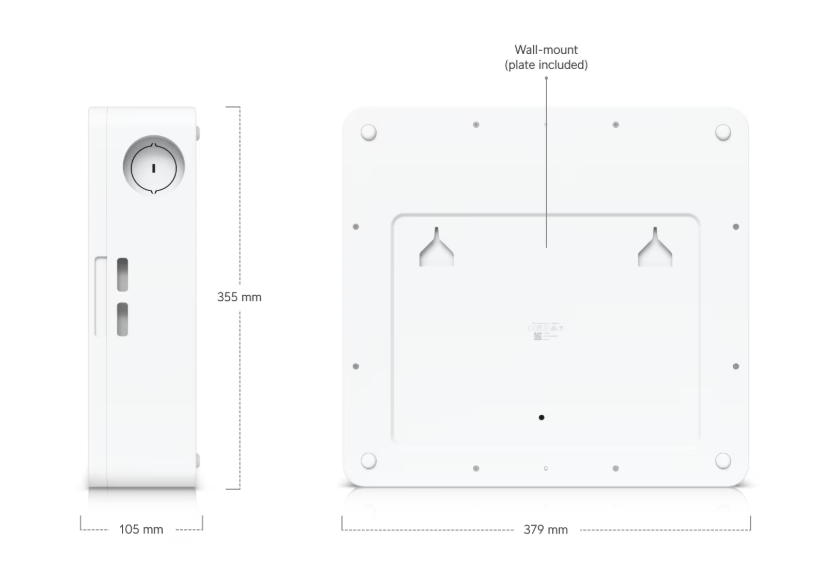

• Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1″)

• Weight: Device: 9.1 kg (20 lb); Mount: 624 g (1.4 lb)

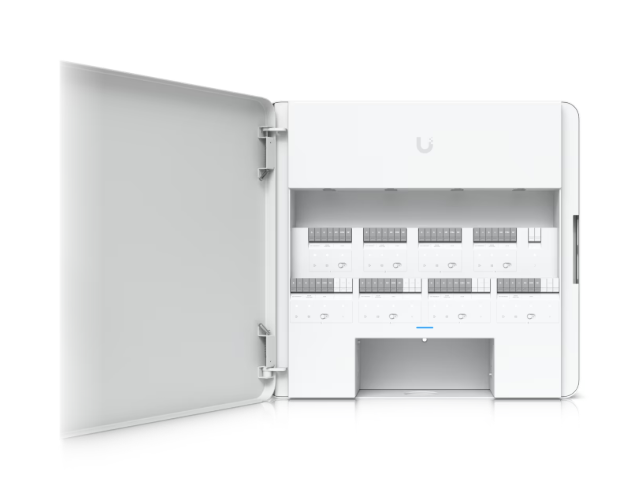

• Enclosure Material: SGCC housing with polycarbonate cover

• Use Case: Enterprise access management for offices, commercial buildings, and facilities requiring centralized control of up to eight doors

• Security Features: UL 294 Level I certification (destructive attack, line security, endurance, standby power), CAN/ULC-60839-11-1 Grade I, ESD/EMP protection

• Management: Centralized management via UniFi Access application (version 1.22.17 and later)

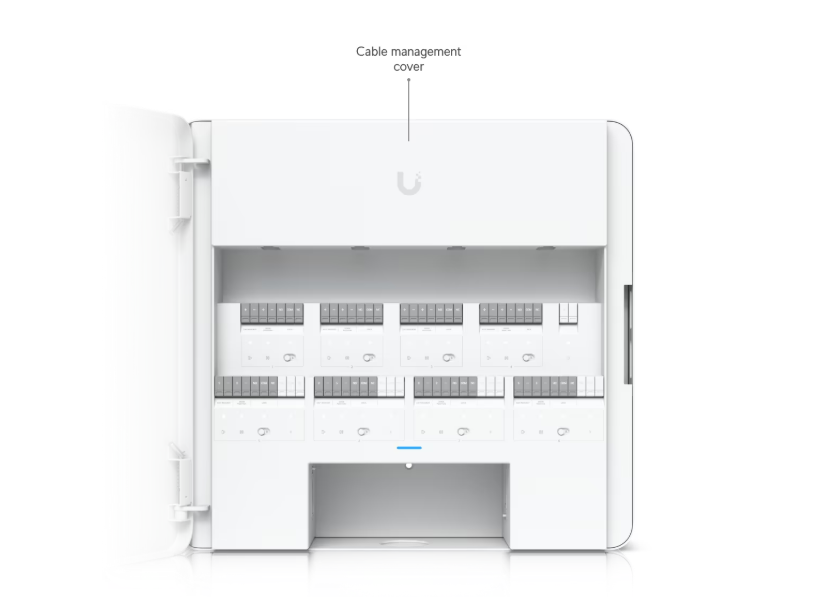

• Design: Durable indoor enclosure with factory-reset button and LED indicators (System: white/blue; Output relays: steady white; Ethernet: flashing white)

• Operating Environment: Indoor use only, 0 to 40° C (32 to 104° F), 5 to 95% noncondensing humidity
