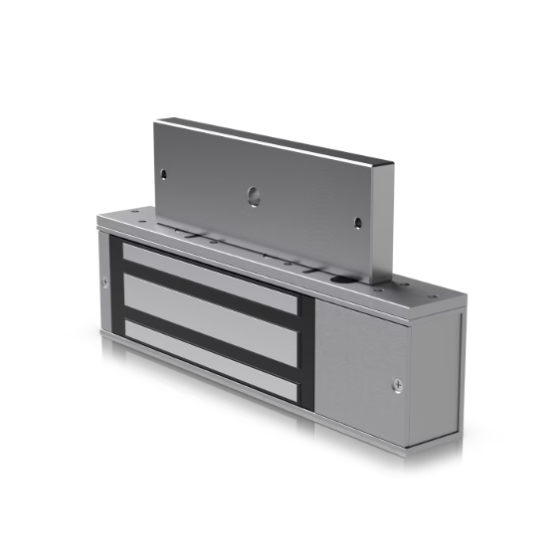

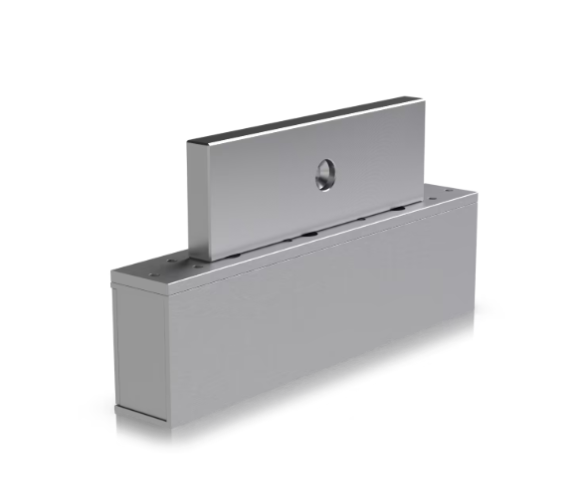

Magnetic Lock (UA-Lock-Magnetic-540kg)

The UniFi Magnetic Lock (UA-Lock-Magnetic-540kg) is a fail-safe electromagnetic lock that connects to a UniFi Access Hub, designed for secure access control on inward and outward swinging doors . Offering a holding force of up to 540 kg (1,200 lb), it provides reliable security for a variety of door types including wooden and metal doors .

Specifications:

• Model: UniFi Magnetic Lock (UA-Lock-Magnetic-540kg)

• Device Type: Fail-Safe Electromagnetic Lock

• Function: Provides secure, remote-controlled locking for doors within the UniFi Access ecosystem

• Lock Type: Fail-safe (unlocks during power loss) / Single door

• Holding Force: 540 kg (1,200 lb)

• Voltage: 12V DC ±10%

• Current Power: 500mA ±10%

• Door Compatibility: Wooden and metal doors (not compatible with full glass doors)

• Hub Terminal Connection: Connect to NC/COM terminals on the UniFi Access Hub

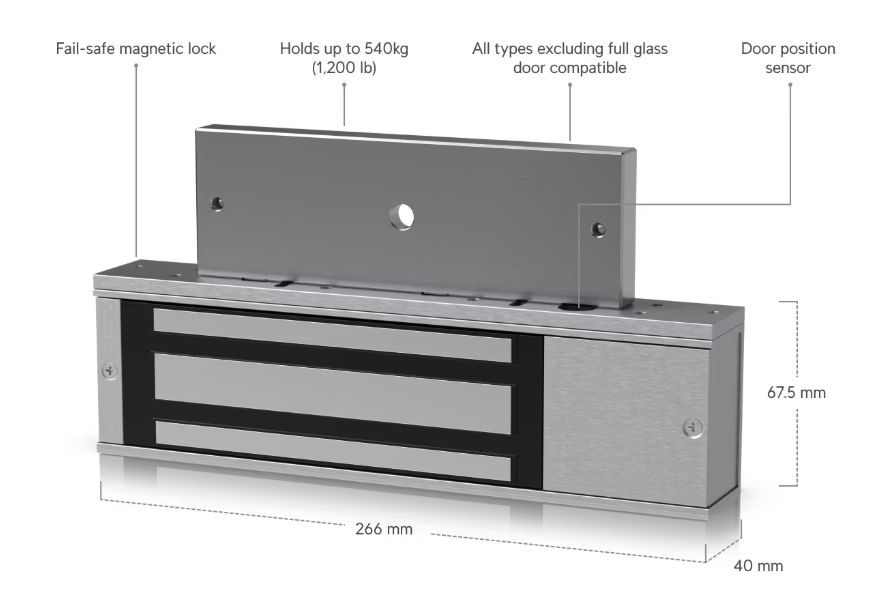

• Dimensions (Lock Body): 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6″)

• Dimensions (Mounting Plate): 266 x 40 x 6 mm (10.5 x 1.6 x 0.2″)

• Dimensions (Armature): 185 x 61 x 16 mm (7.3 x 2.4 x 0.6″)

• Weight (Lock Body): 2.9 kg (6.4 lb)

• Weight (Mounting Plate): 145 g (0.3 lb)

• Weight (Armature): 1.4 kg (3.1 lb)

• Enclosure Material: Lock body/Installation plate: Aluminum; Armature: Steel

• LED Indicators: Green (unlocked) / Red (locked)

• Mounting Accessories: L bracket (outward opening doors), Z bracket (inward opening doors, used with L bracket)

• Use Case: Access control for offices, residential buildings, and commercial facilities requiring secure, automatic locking

• Security Features: Fail-safe operation, NDAA compliant, built-in door position sensor (DPS)

• Management: Integrated with UniFi Access Hub and managed via the UniFi Access application

• Design: Robust aluminum housing with included mounting brackets (L and Z)

• Compatibility: Works with UniFi Access Hubs (UA-G2-SK-Pro, UA-G2-SK, EAH-8, UA-Hub) and the UniFi Access ecosystem
