PoE Injector, 24VDC, 12W, 5-Pack （POE-24-12W-WH）

The PoE Injector, 24VDC, 12W, 5-Pack (POE-24-12W-WH) is a set of five white, 24V passive PoE adapters with Gigabit Ethernet pass-through, designed to power compatible Ubiquiti devices over a single Ethernet cable. It offers built-in surge and clamping protection to safeguard connected equipment.

Specifications:

• Model: POE-24-12W-WH

• Device Type: Passive PoE Injector (5-Pack)

• Function: Delivers 24V DC passive PoE and network connectivity to compatible devices

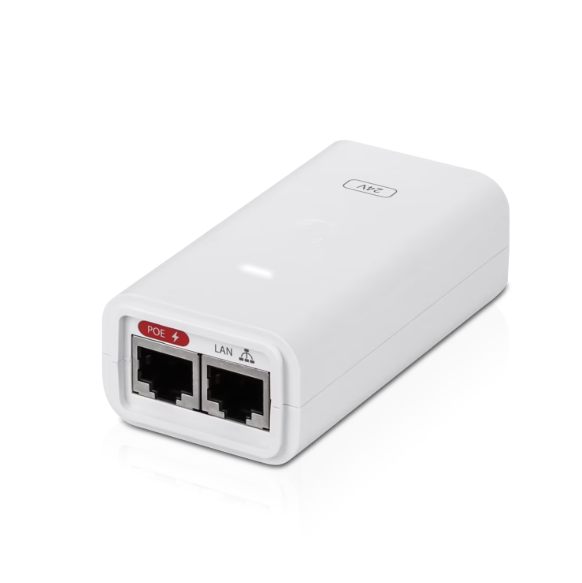

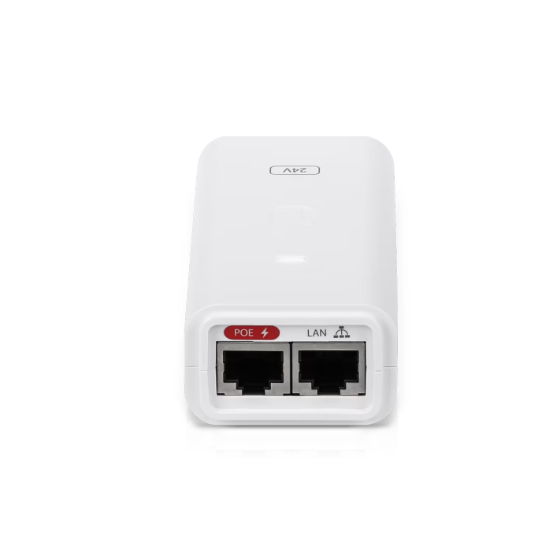

• Networking: 1x Gigabit LAN In / 1x Gigabit PoE Out (shielded RJ45 sockets)

• Input Voltage: 100–240V AC @ 50/60Hz

• Output Voltage: 24V DC @ 0.5A

• Max. Power Output: 12W

• Surge Protection: Difference and Common Mode, Clamping Protection (11V Data, 60V Power)

• Powering: 2‑Pair (Pins 4,5+ and 7,8-)

• Remote Reset: Yes, with Reset Button

• Dimensions: 87 x 44 x 29 mm (3.43 x 1.73 x 1.14″)

• Weight: 92 g (3.25 oz) per unit

• Enclosure Material: White Polycarbonate

• Use Case: Powering 24V Ubiquiti devices such as airMAX, EdgeMAX, and select UniFi models; suitable for indoor deployment

• Certifications: CE, FCC, IC, UL, NDAA Compliant

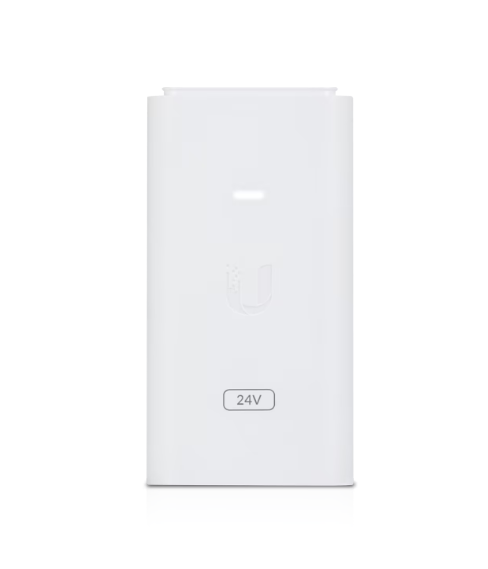

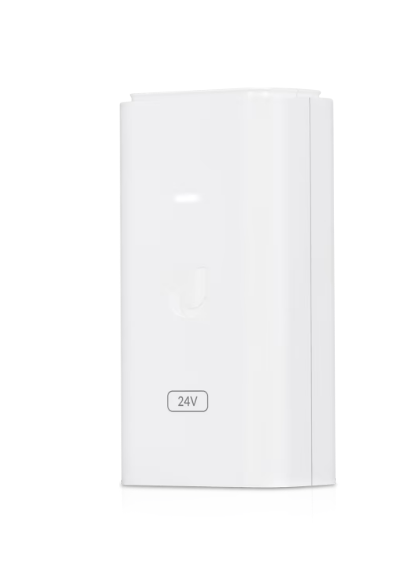

• Design: Compact white adapter with IEC-320 C6 AC connector and integrated reset button for remote device reboot
