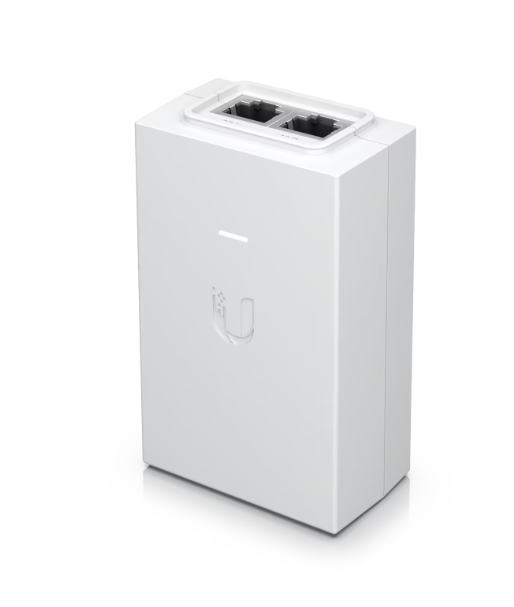

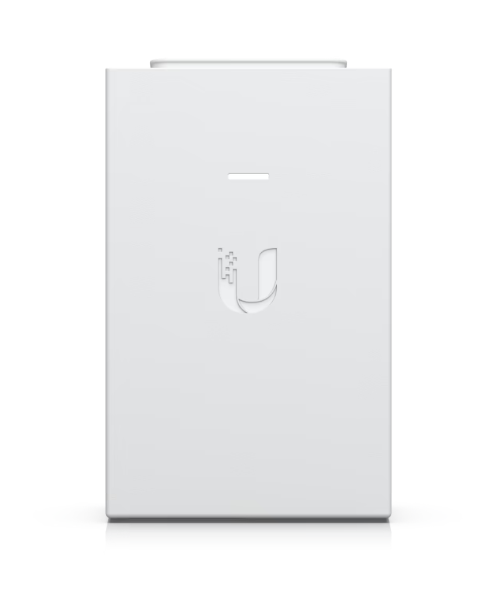

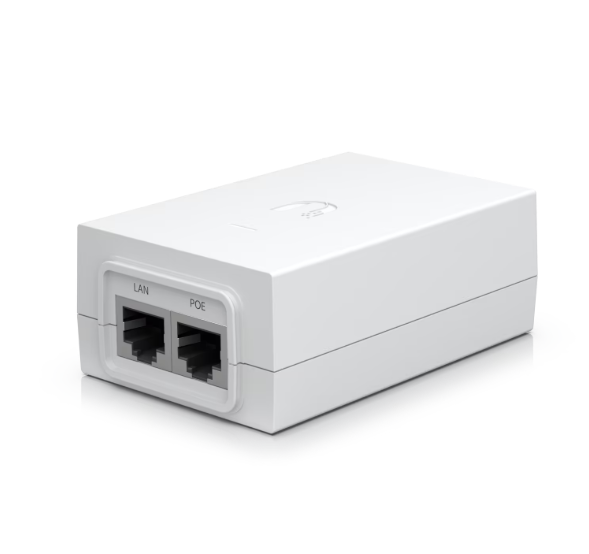

PoE Injector, 24VDC, 30W, Gbit （POE-24-30W-G-WH）

The PoE Injector, 24VDC, 30W, Gbit (POE-24-30W-G-WH) is a white, passive Gigabit Power over Ethernet injector delivering 24V DC at 1.25A (30W) to compatible Ubiquiti devices. It provides surge and clamping protection and includes an AC cable with earth ground to safeguard connected equipment from ESD damage.

Specifications:

• Model: PoE Injector, 24VDC, 30W, Gbit (POE-24-30W-G-WH)

• Device Type: Passive Gigabit PoE Injector

• Function: Delivers 24V DC power and Gigabit data to compatible PoE devices over a single Ethernet cable

• Color: White

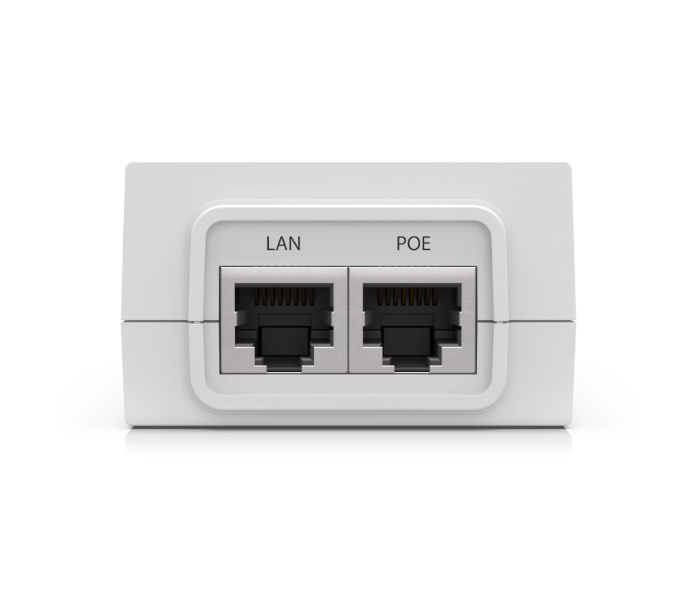

• Networking Interface: 1 x Gigabit LAN In / 1 x Gigabit PoE Out (shielded RJ45 sockets)

• Output Voltage: 24V DC @ 1.25A

• Max. Power Output: 30W

• Power Method: 100–240V AC @ 50/60Hz (IEC-320 C6 connector)

• Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC

• Efficiency: 83+%

• Powering Mode: 2-pair (Pins 4, 5+ and 7, 😎

• Surge Protection: Difference and common mode; clamping protection (11V data, 60V power)

• Max. Surge Discharge: 1500A (8/20 μs) power

• Peak Pulse Current: 36A (10/1000 μs) data

• Response Time: <1 ns

• Dimensions: 94 x 60 x 33 mm (3.7 x 2.4 x 1.3″)

• Weight: 156 g (5.5 oz)

• Enclosure Material: Polycarbonate

• Operating Temperature: 0 to 40° C (32 to 104° F)

• Storage Temperature: -30 to 70° C (-22 to 158° F)

• Operating Humidity: 35 to 95% noncondensing

• Certifications: CE, FCC, IC, UL

• NDAA Compliant: Yes

• Use Case: Powering Ubiquiti devices such as airMAX, EdgeMAX, and UniFi access points requiring 24V passive PoE

• Design: Compact white desktop adapter with shielded RJ45 ports and AC cable with earth ground
