Description
Switch-8 (US-8)
The UniFi Switch 8 (US-8) is a compact, fully managed Layer 2 Gigabit switch designed for small offices, home networks, and edge deployments requiring reliable wired connectivity with simple UniFi integration. Featuring PoE input support and multiple PoE passthrough ports, it provides flexible installation options while maintaining silent, fanless operation. Its small form factor makes it ideal for desktop or wall-mounted use, delivering seamless network expansion within the UniFi ecosystem.
Specifications:
- Model: UniFi Switch 8 (US-8)
- Device Type: Managed Gigabit Layer 2 Switch
- Ports: 8 × 10/100/1000 Mbps Gigabit Ethernet Ports
- PoE Support: 1 × PoE Input (802.3af), 4 × PoE Passthrough Ports (varies by power input)
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Layer Features: Layer 2 Switching, VLAN Support, Link Aggregation, STP/RSTP
- Management: UniFi Network Controller, UniFi Mobile App, Web Interface, Cloud Management
- Power: 802.3af PoE Input or External Power Adapter (model dependent)

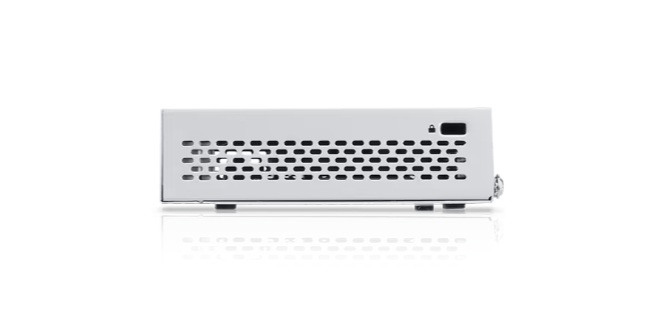

- Cooling: Fanless Passive Cooling Design

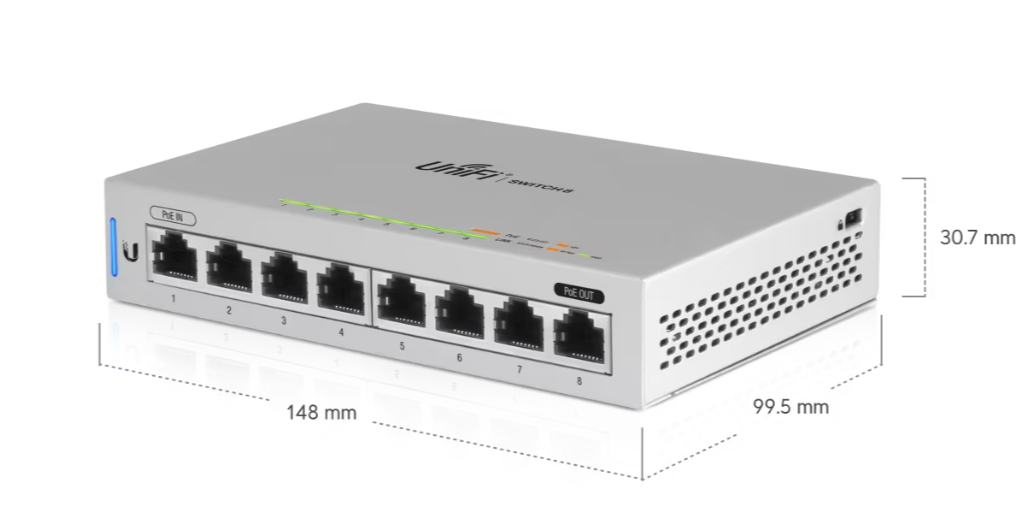

- Dimensions: Compact Desktop / Wall-Mount Form Factor
- Use Case: Small offices, home networks, edge network expansion, and low-port-density UniFi deployments
