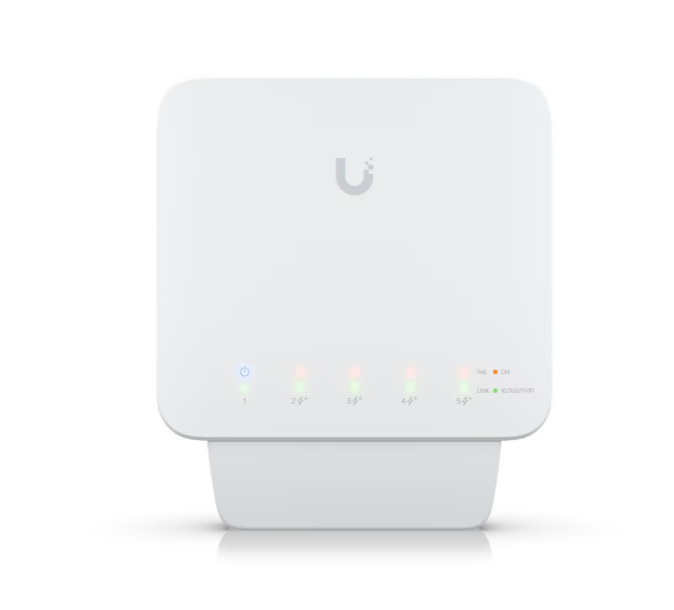

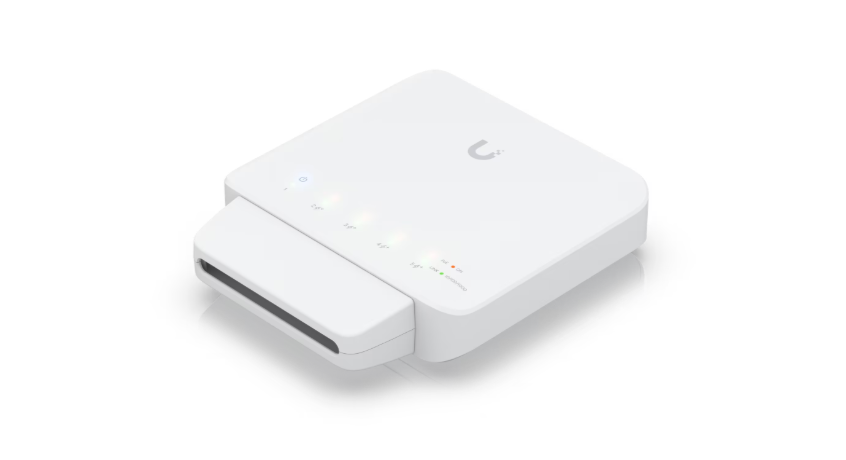

Switch-Flex (USW-Flex)
The UniFi Switch Flex (USW-Flex) is a compact, weather-resistant, fully managed Layer 2 Gigabit PoE switch designed for flexible deployments in both indoor and outdoor environments. Built for scalability and simplicity, it allows easy expansion of UniFi networks in locations where cabling or power access is limited. With PoE input and multiple PoE output ports, it is ideal for powering remote devices such as access points, IP cameras, and other network equipment while maintaining seamless integration with the UniFi ecosystem.
Specifications:
- Model: UniFi Switch Flex (USW-Flex)
- Device Type: Managed Gigabit Layer 2 PoE Switch
- Ports: 5 × 10/100/1000 Mbps Gigabit Ethernet Ports
- PoE Input: 802.3af/at PoE In (up to 46W input required for full PoE output capability)
- PoE Output: Up to 4 × PoE/PoE+ Ports (power budget dependent)
- Switching Capacity: 10 Gbps
- Forwarding Rate: 7.44 Mpps
- Layer Features: Layer 2 Switching, VLAN Support, Link Aggregation, STP/RSTP
- Management: UniFi Network Controller, UniFi Mobile App, Web Interface, Cloud Management, Remote Access
- Power: PoE Powered (no local power adapter required)
- Cooling: Fanless Passive Cooling Design
- Enclosure: Weather-Resistant Outdoor-Rated Housing

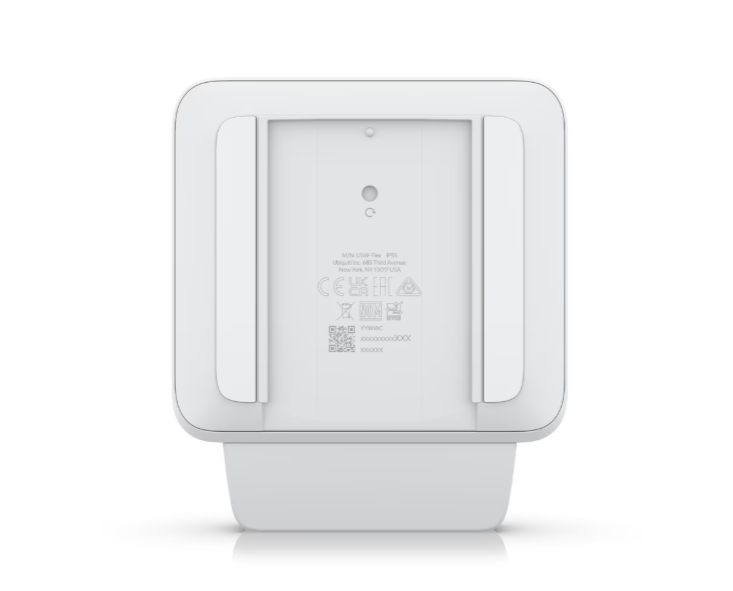

- Mounting: Wall, pole, or surface mount support

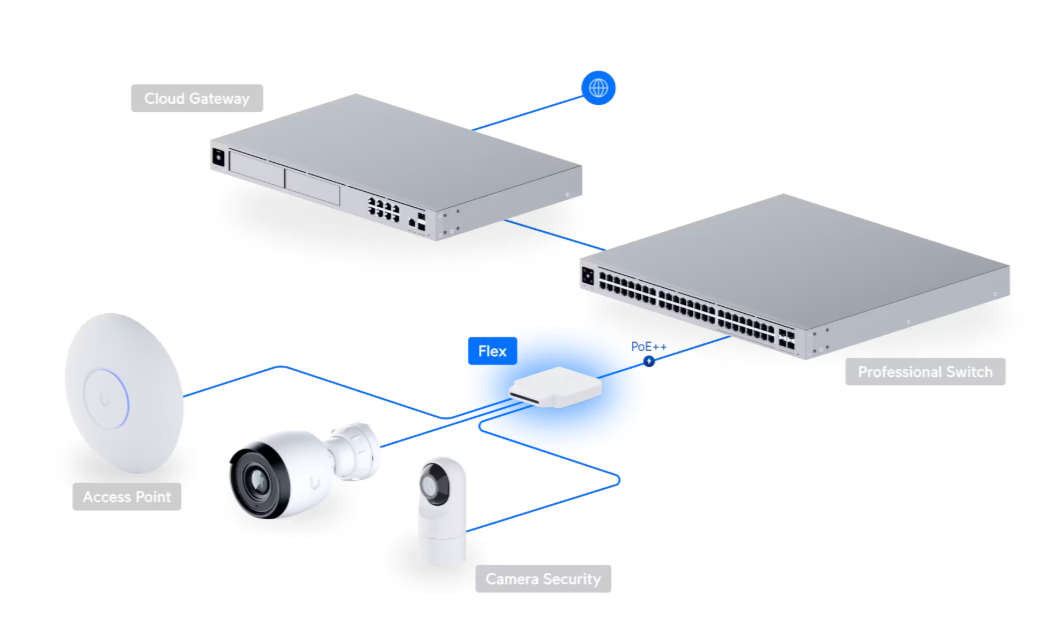

- Use Case: Outdoor deployments, remote access points, IP cameras, distributed network expansion, and flexible UniFi edge installations
