Description
Switch-Pro-XG-8-PoE (USW-Pro-XG-8-PoE)

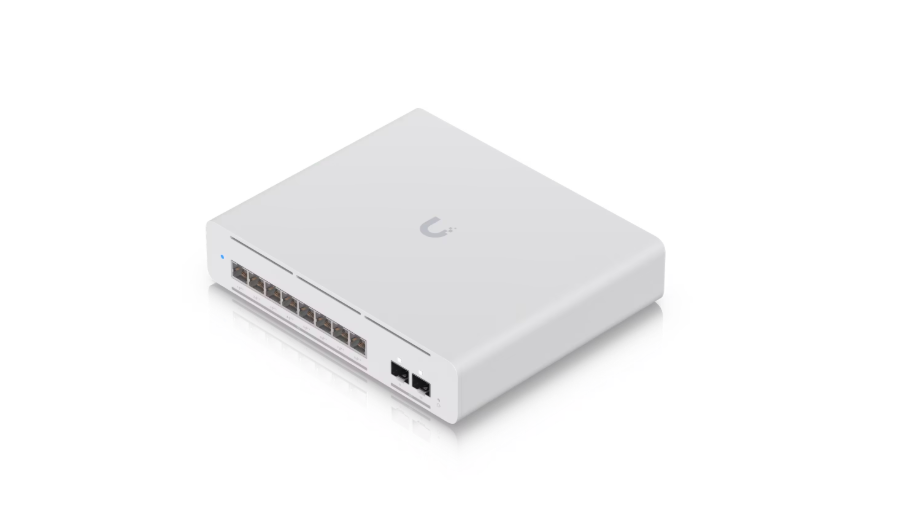

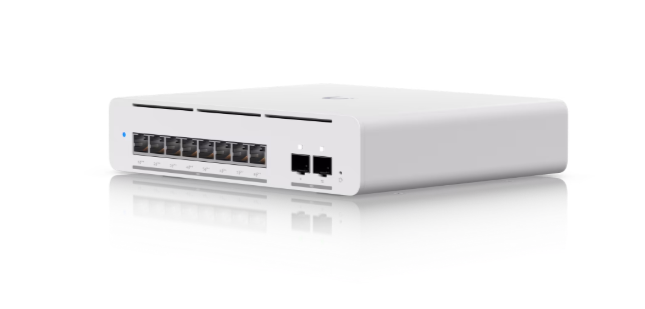

The UniFi Switch Pro XG 8 PoE (USW-Pro-XG-8-PoE) is a high-performance enterprise-grade multi-gigabit switch designed for next-generation networking environments requiring high-speed connectivity and advanced PoE capabilities. Featuring a combination of 10 Gigabit and multi-gigabit Ethernet ports with PoE++ support, it delivers exceptional bandwidth for WiFi 6E and WiFi 7 access points, high-performance workstations, servers, and aggregation deployments. Managed through the UniFi Network Application, it provides centralized control, advanced Layer 2 and Layer 3 functionality, and seamless integration into the UniFi ecosystem.
Specifications:
- Model: UniFi Switch Pro XG 8 PoE (USW-Pro-XG-8-PoE)
- Device Type: Layer 3 Managed Multi-Gigabit PoE Switch

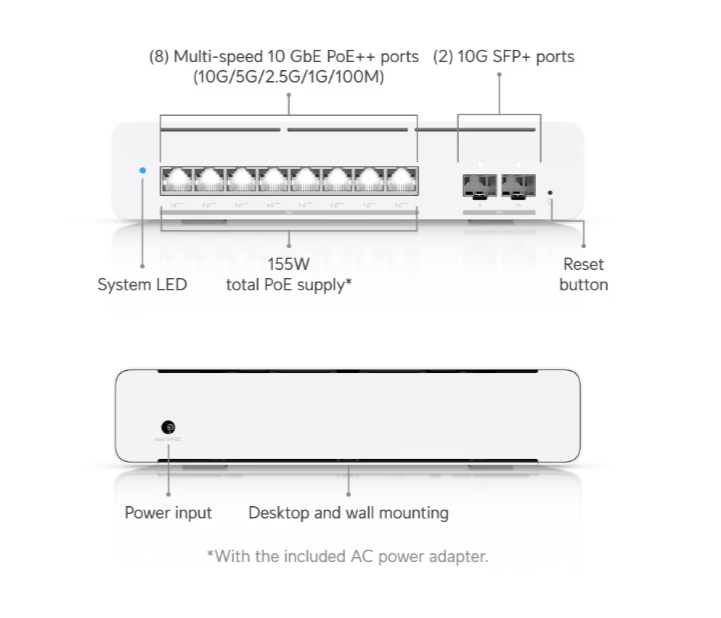

- Ports: 8 × 100M/1G/2.5G/5G/10G RJ45 Ethernet Ports
- Uplink Ports: 2 × 10 Gbps SFP+ Ports
- PoE Support: PoE++ (IEEE 802.3bt) on all RJ45 ports
- PoE Budget: 155W Total PoE Power
- Switching Capacity: 200 Gbps
- Forwarding Rate: 148.8 Mpps
- Layer Features: Layer 2 Switching, Layer 3 Static Routing, VLAN Support, Inter-VLAN Routing, Link Aggregation, STP/RSTP, DHCP Services
- Management: UniFi Network Controller, UniFi OS Web Interface, UniFi Mobile App, Cloud Management, Remote Access
- Power: Internal AC Power Supply (100–240V AC Input)
- Cooling: Active Smart Fan Cooling System
- Dimensions: Compact Rackmount/Desktop Form Factor

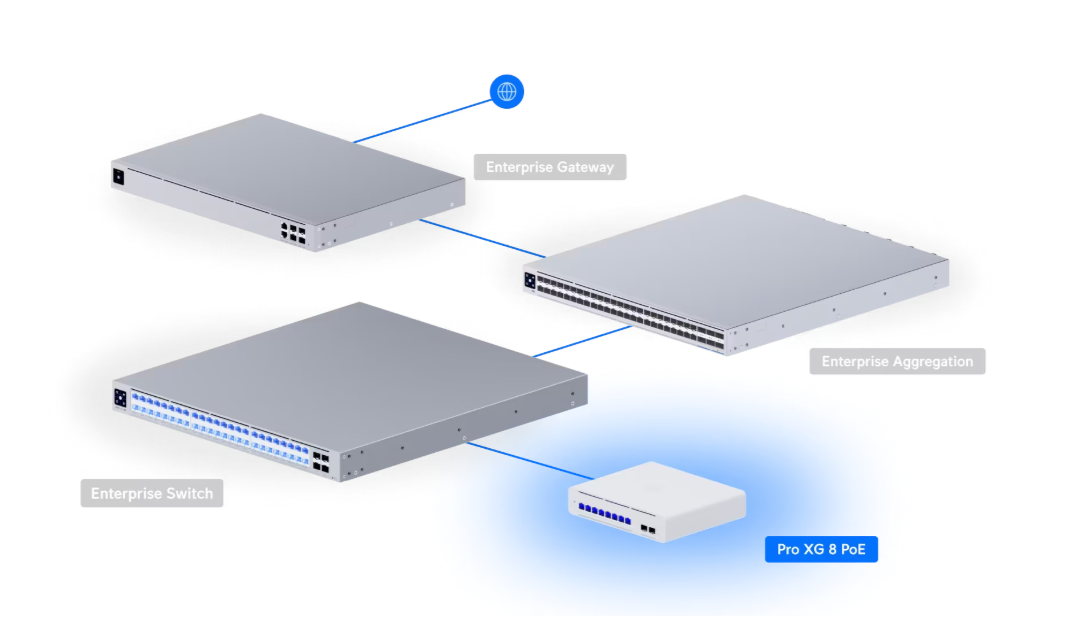

- Use Case: WiFi 6E and WiFi 7 deployments, enterprise edge networking, server connectivity, high-performance workstations, and multi-gigabit infrastructure upgrades
