Description

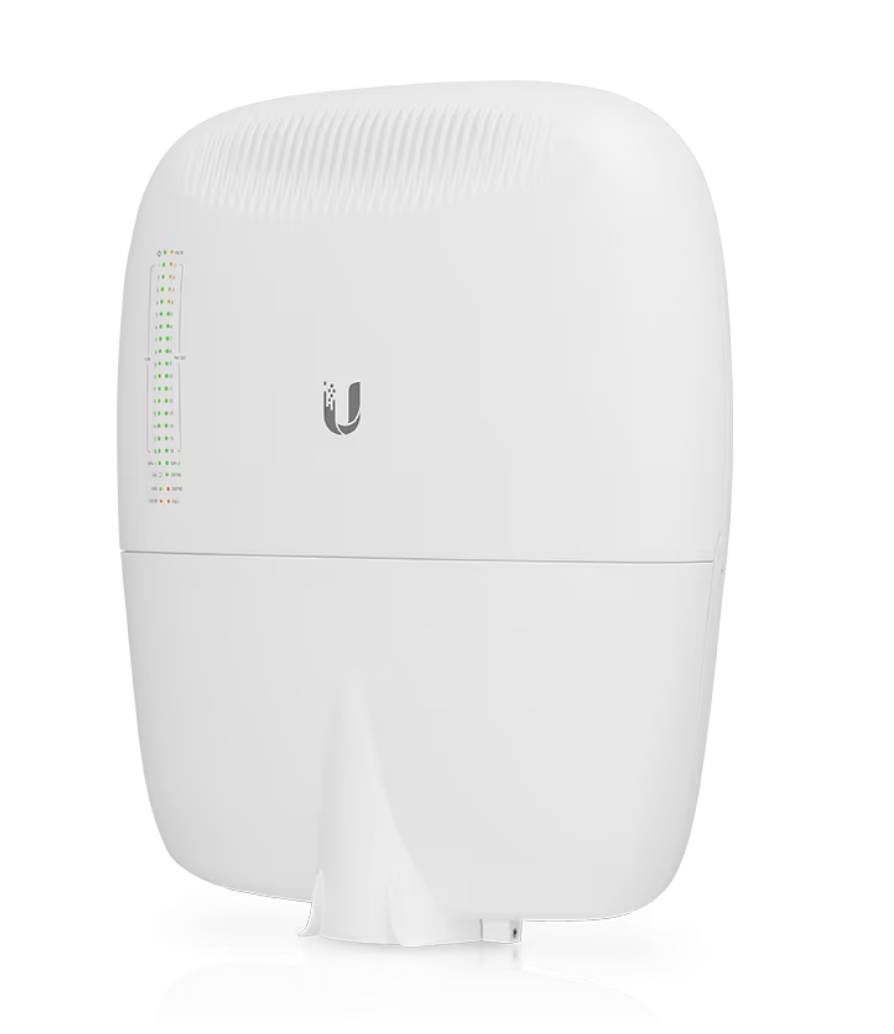

Ubiquiti EdgePoint S16 EP-S16
The Ubiquiti EdgePoint S16 EP-S16 is an application-specific WISP control point switch designed for outdoor wireless, tower, and ISP network deployments. It features 16 Gigabit RJ45 ports, 2 SFP+ ports, passive PoE input/output support, power monitoring, and a weather-resistant pole or wall-mount enclosure for managing multiple outdoor radios and network devices from one central point.
Specifications:
- Model: Ubiquiti EdgePoint S16 EP-S16
- Device Type: WISP Control Point Switch
- Ethernet Ports: 16 × 10/100/1000 RJ45 ports, 2 × 1/10Gbps SFP+ ports, and 1 × RJ45 serial port
- CPU: Not specified
- RAM: Not specified
- Storage: Not specified
- Operating System: EdgeSwitch / EdgeMAX switching software
- Routing: Gigabit switching with passive PoE input/output support and SFP+ uplinks
- Management: RJ45 serial port and Ethernet network management
- Power: 54V DC terminal block input; 42–56V DC supported voltage range; passive PoE input on ports 1–2; passive PoE output on ports 1–16; 40W maximum power consumption excluding PoE output
- Dimensions: 326.6 × 382.7 × 88.8 mm without wall mount; 326.6 × 382.7 × 105.5 mm with wall mount
- Use Case: WISP tower deployments, outdoor wireless aggregation, powering compatible Ubiquiti radios, SFP+ uplinks, pole-mounted network distribution, and managed outdoor ISP network installations.
